1 - Engine Temperature Sensor
2 - Timing and Protection Module (TPM)
3 - Trigger
4 - Stator
5 - Starter
6 - Starter Relay
7 - 12VDC Battery
8 - 20 Ampere Fuse
9 - Voltage Regulator
10- Neutral Start Switch
11- Low Oil Switch
12- Engine Harness
13- Fuel Enrichment Valve
14- Capacitor Discharge Module (CDM)
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
52905
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
90-826148R2 MARCH 1997 ELECTRICAL - 2D-5

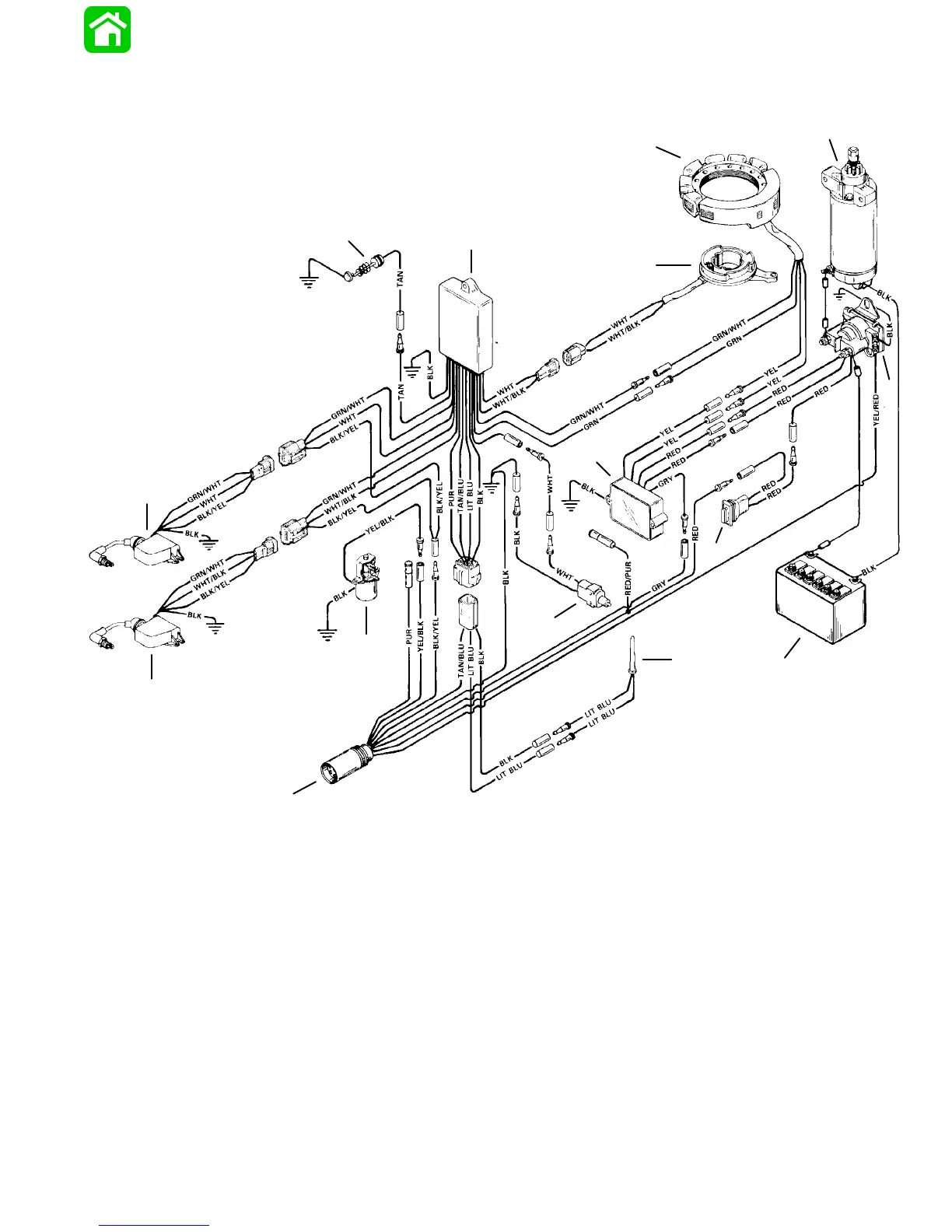

30/40 Electric Start Ignition Diagram (S/N 0G380074 & Below)
