90-826148R2 MARCH 19972A-24 - ELECTRICAL

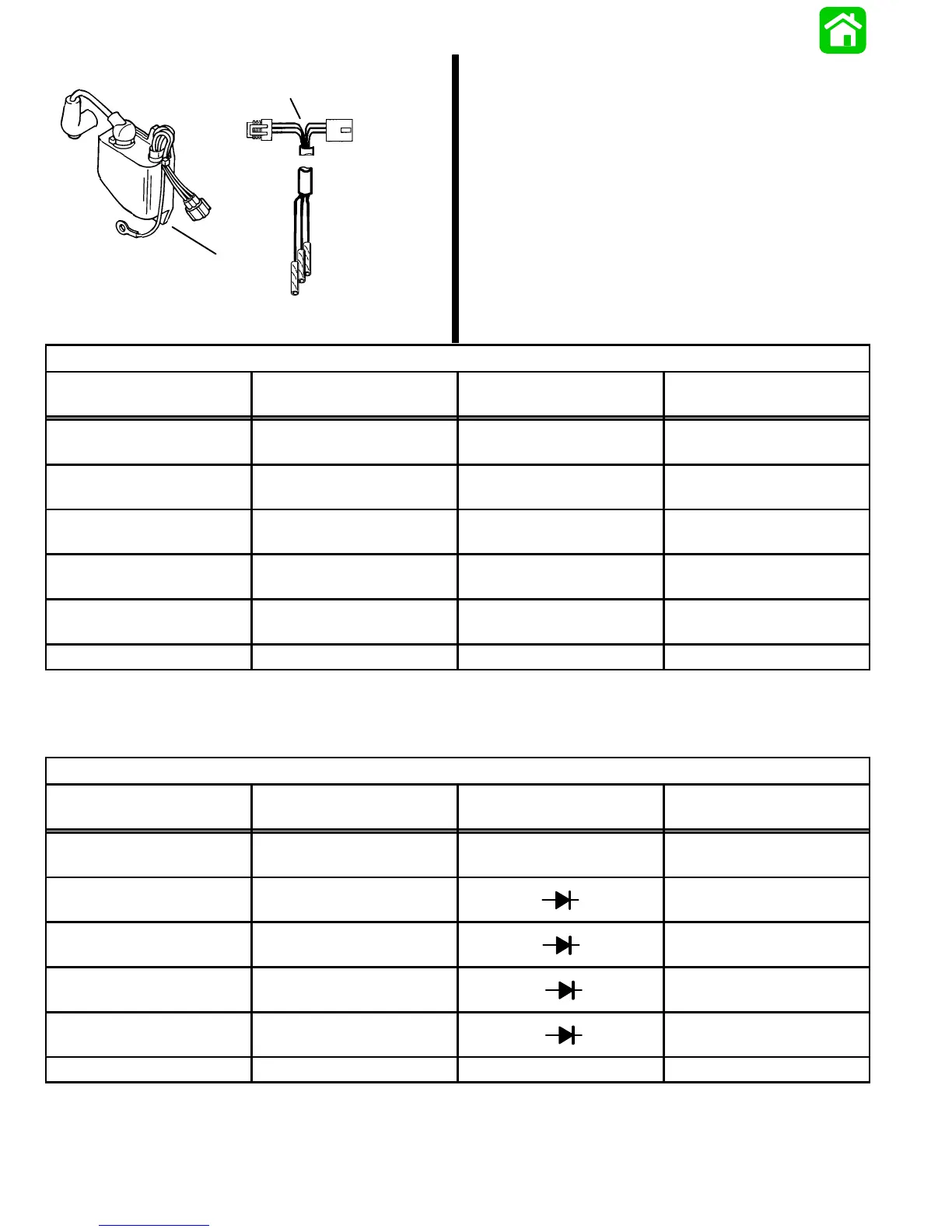

CAPACITOR DISCHARGE MODULE P/N822779
a
b
a - Test Harness P/N 91-825270A1
b - Capacitor Discharge Module P/N 822779
A resistance check can be made of the CDM as fol-
lows:
CAPACITOR DISCHARGE MODULE RESISTANCE CHECK-ANALOG METER
Connect Positive (+)
Meter Lead To:
Connect Negative (–)
Meter Lead To:
Ohms
Scale
Reading
Ground Lead
White Pin or White Test
Harness Lead
R X 1 40  10
GRN/WHT Pin or Red
Test Harness Lead
Ground Lead R X 1*
Diode Reading
Continuity
Ground Lead
GRN/WHT Pin or Red
Test Harness Lead
R X 1K*
Diode Reading
No Continuity
GRN/WHT Pin or Red
Test Harness Lead
BLK/YEL Pin or Black
Test Harness Lead
R X 1K*
Diode Reading
No Continuity
BLK/YEL Pin or Black
Test Harness Lead
GRN/WHT Pin or Red
Test Harness Lead
R X 1*
Diode Reading
Continuity
Coil Tower Ground Lead R X 10 1000  300
NOTE: Due to the differences in test meters battery polarity, results other than specified may be obtained. In
such a case, reverse meter leads and re-test. If test results then read as specified on all tests CDM is O.K.. The
diode measurements above will be opposite if using a Fluke
 equivalent multimeter.
CAPACITOR DISCHARGE MODULE RESISTANCE CHECK-DIGITAL METER
Connect Positive (+)
Meter Lead To:
Connect Negative (–)
Meter Lead To:
Ohms
Scale
Reading
Ground Lead
White PIn or White Test
Harness Lead
Ω or 200 40  10 Ohms
GRN/WHT Pin or Red
Test Harness Lead
Ground Lead
*
OL or OUCH
Ground Lead
GRN/WHT Pin or Red
Test Harness Lead
*
.400-.900
GRN/WHT Pin or Red
Test Harness Lead
BLK/YEL Pin or Black
Test Harness Lead
*
.400-.900
BLK/YEL Pin or Black
Test Harness Lead
GRN/WHT Pin or Red
Test Harness Lead
*
OL or OUCH or 1.
Coil Tower Ground Lead Ω or 2K .800-1.200 KΩ
NOTE: Due to the differences in test meters battery polarity, results other than specified may be obtained. In
such a case, reverse meter leads and re-test. If test results then read as specified on all tests CDM is O.K.. The
diode measurements above will be as specified if using a Fluke
 equivalent multimeter.
