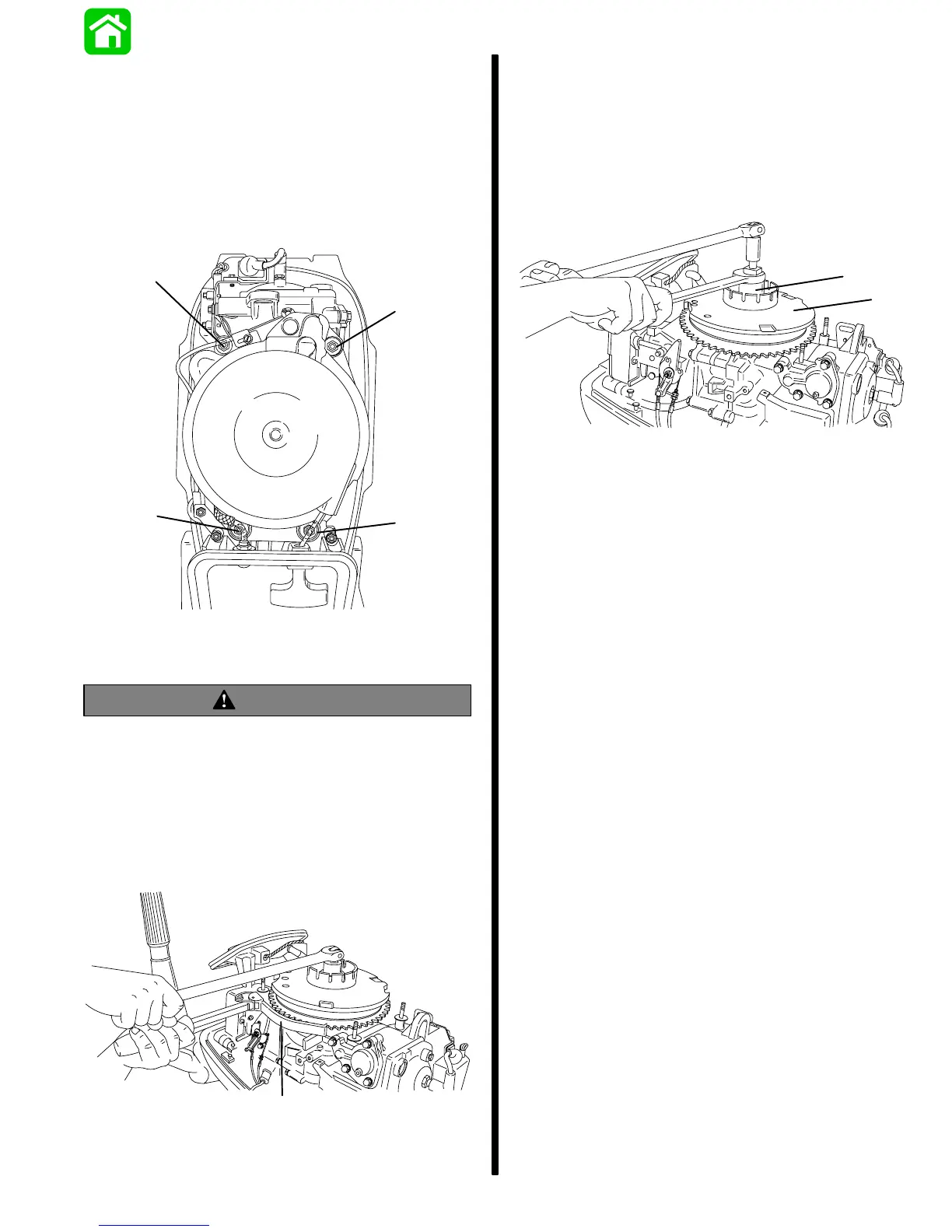

90-826148R2 MARCH 1997 ELECTRICAL - 2A-27
Ignition Components
Removal
Flywheel
1. Remove flywheel nuts and washers.
2. Remove flywheel cover.
55120
a
a
a
a
a - Nuts and Washers
WARNING
Engine could possibly start when turning fly-
wheel during removal and installation; therefore,
disconnect (and isolate) spark plug leads from
spark plugs to prevent engine from starting.
3. Disconnect spark plug leads from spark plugs.
4. While holding flywheel with Flywheel Holder
(91-52344), remove flywheel nut and washer.
55121
a
a - Flywheel Holder (91-52344)
5. Install Crankshaft Protector Cap (91-24161) on
the end of crankshaft, then install Flywheel Puller
(91-73687A1) into flywheel.
6. Remove flywheel.
NOTE: Neither heat or hammer should be used on
flywheel to aid in removal as damage to flywheel or
electrical components under flywheel may result.
55122
a
b
a - Flywheel Puller (91-73687A1)
b - Flywheel
To Next Page
