3A-8 - FUEL SYSTEM 90-826148R2 MARCH 1997
Reassembly

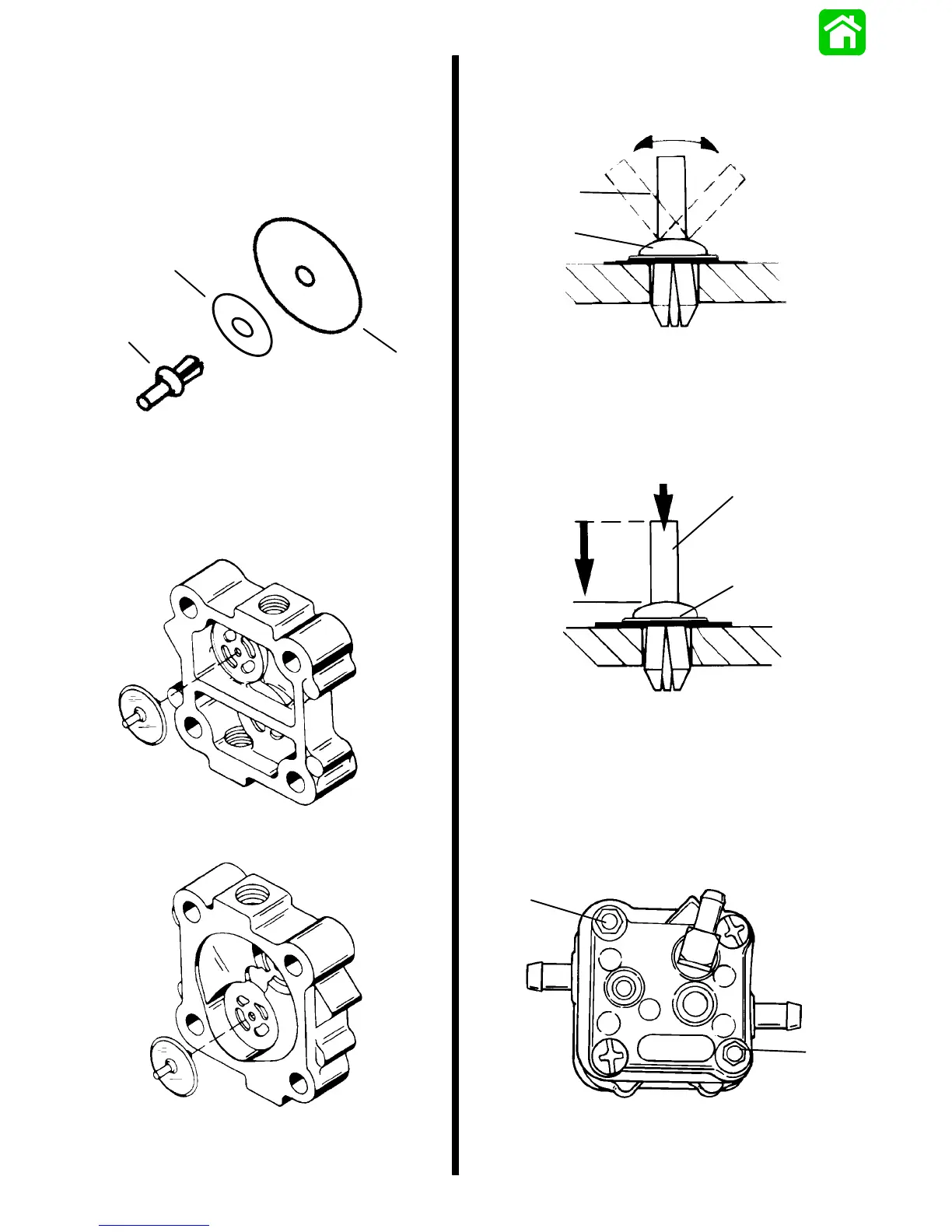

Check Valve Assembly
1. Insert retainer (a) thru plastic disc (b) and rubber
check valve (c).
23601
a
b
c
a - Retainer
b - Plastic Disc
c - Rubber Check Valve
2. Install check valves and retainers into fuel pump
body.
23601
3. With retainer installed in pump body, break re-
tainer rod (a) from retainer (b) by bending side-
ways.
23601
a
b
a - Retainer Rod
b - Retainer
4. Reinstall rod (a) into retainer cap (b) and, use a
small hammer or hammer and punch to tap rod
down into retainer until flush with top of retainer.
23610
a
b
a - Rod
b - Retainer Cap
Fuel Pump Assembly
1. Assemble remaining components as shown in
“Fuel Pump Exploded View”.
2. Install bolts and torque to 55 lb. in. (6.2 N·m).
51267
a
a
a - Bolt (2) Torque to 55 lb. in. (6.2 N×m)
