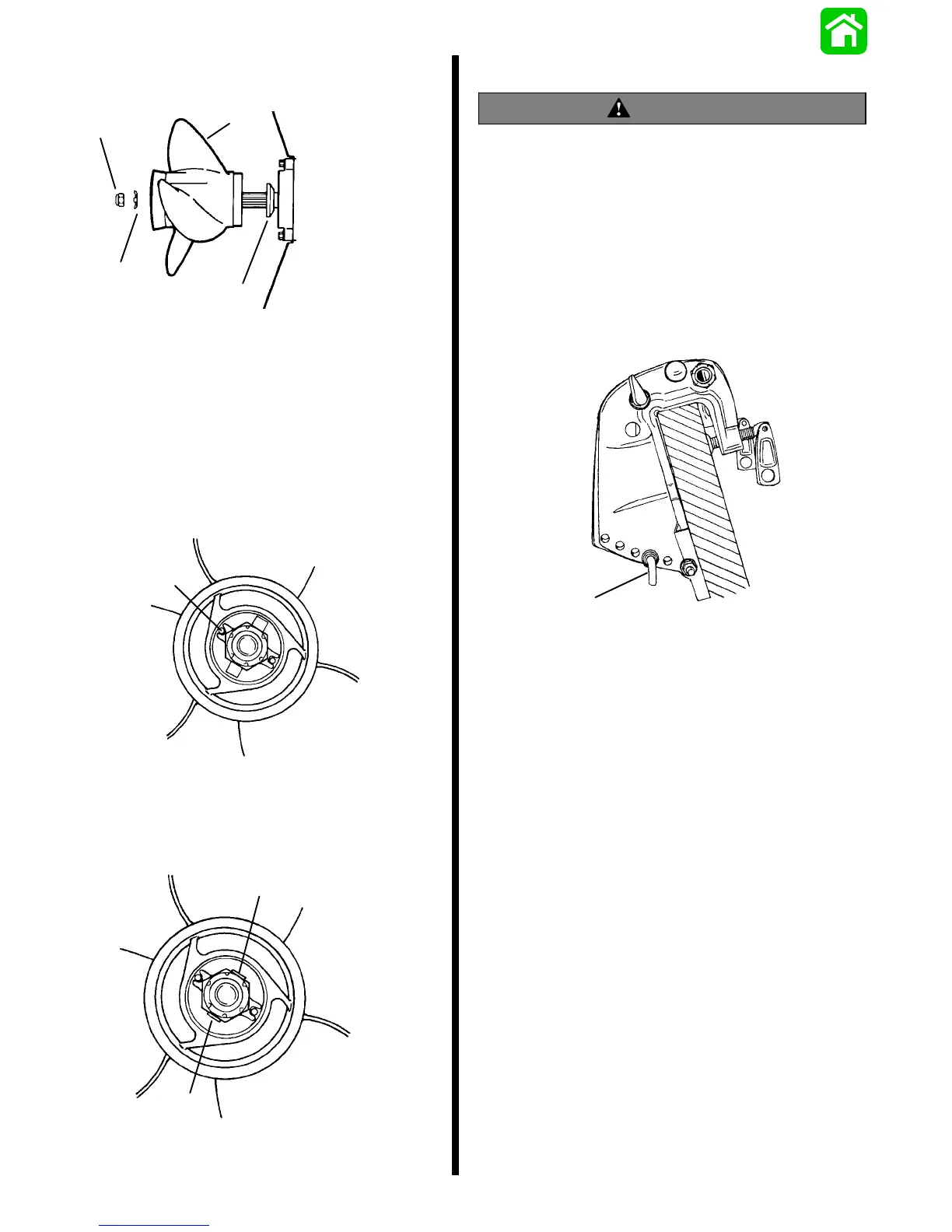

4. Install thrust washer, propeller, propeller nut re-
tainer, and propeller nut onto the shaft.
a
b
c
d
a - Thrust Washer
b - Propeller
c - Propeller Nut Retainer
d - Propeller Nut
5. Place propeller retainer over pins. Place a block
of wood between gear case and propeller and
tightenpropellernutto55lb.ft.(75N·m),aligning
flatsidesofthepropellernutwithtabsonthepro-
peller nut retainer.
a
a - Pins
6. Secure propeller nut by bending tabs up and
against the flats on the propeller nut.
a
a
a - Tabs
Tilt Pin Adjustment
WARNING
DO NOT operate boat without the tilt pin in-
stalled. Failure to install tilt pin could result in
outboard kicking up when operated in reverse
causing serious injury, death, or property dam-
age.
Placetiltpinindesiredholeinthetransombracketso
theoutboardwillrunperpendiculartothewaterwhen
the boat is running at full speed. This allows the boat
to be driven parallel to the water.
a
a - Tilt Pin
Consider the following lists carefully when adjusting
the tilt pin.
PLACING TILT PIN IN LOWER HOLES CAN:
1. Lower the bow.
2. Result in quicker planing off, especially with a
heavy load or a stern heavy boat.
3. Generally improve the ride in choppy water.
4. Increase steering torque or pull to the right (with
the normal right hand rotation propeller).
5. In excess, lowerthe bowofsomeboatstoapoint
wheretheybegintoplowwiththeirbowinthewa-
ter while on plane. This can result in an unex-
pected turn in either direction called “bow steer-
ing” or “over steering” if any turn is attempted or
if a significant wave is encountered.
