90-826148R2 MARCH 19978-4 - MANUAL STARTER

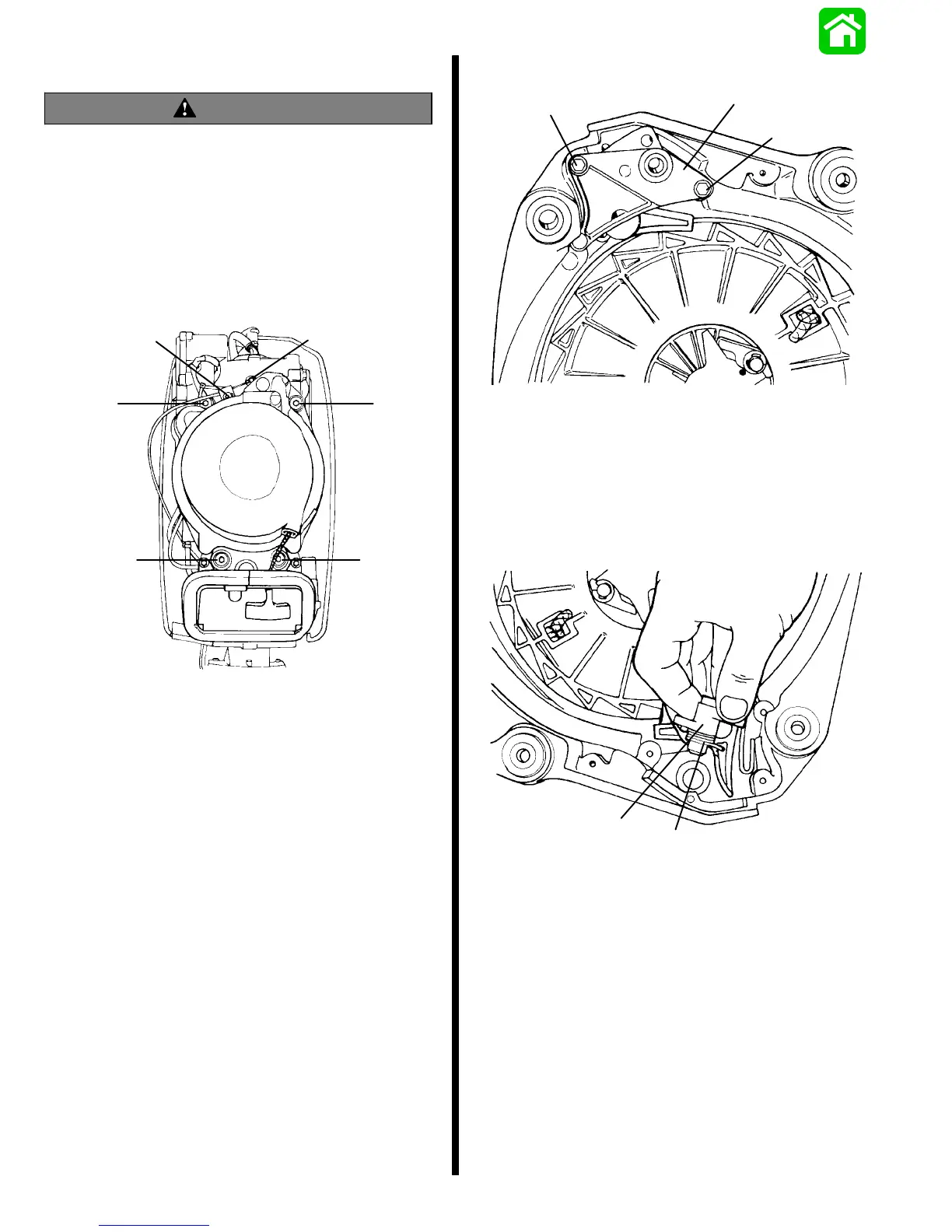

Rewind Starter Disassembly
WARNING
When disassembling and reassembling rewind
starter, SAFETY GLASSES must be worn in case
rewind spring uncoils out of the housing.
1. Untieknotinstarterropeandreleasestarterrope
to allow rewind spring to unwind.
2. Removeretainingclipandattachingscrewwhich
secures shift interlock cable to starter housing.
3. Remove rewind starter from engine.
51606
a
b
c
c
c
c
a - Retaining Clip
b - Screw
c - Bolts (4)
4. Remove cam retainer.
51605
a
b
a
a - Screws
b - Retainer
5. Remove cam and spring.
51605
a
b
a - Cam
b - Spring
To Next Page
