90-826148R2 MARCH 1997 MID-SECTION - 5C-5
4. Disconnect link rod from cam lever.
5. Remove tilt lock pin. Remove nuts and washers
securing the lower pivot pin. Remove anode bolt
to remove ground strap. Remove lower anchor
pin. Retain the anchor pin bushings from the
clamp brackets and trim unit.
6. Remove trim unit.
b
a
c
e
d
f

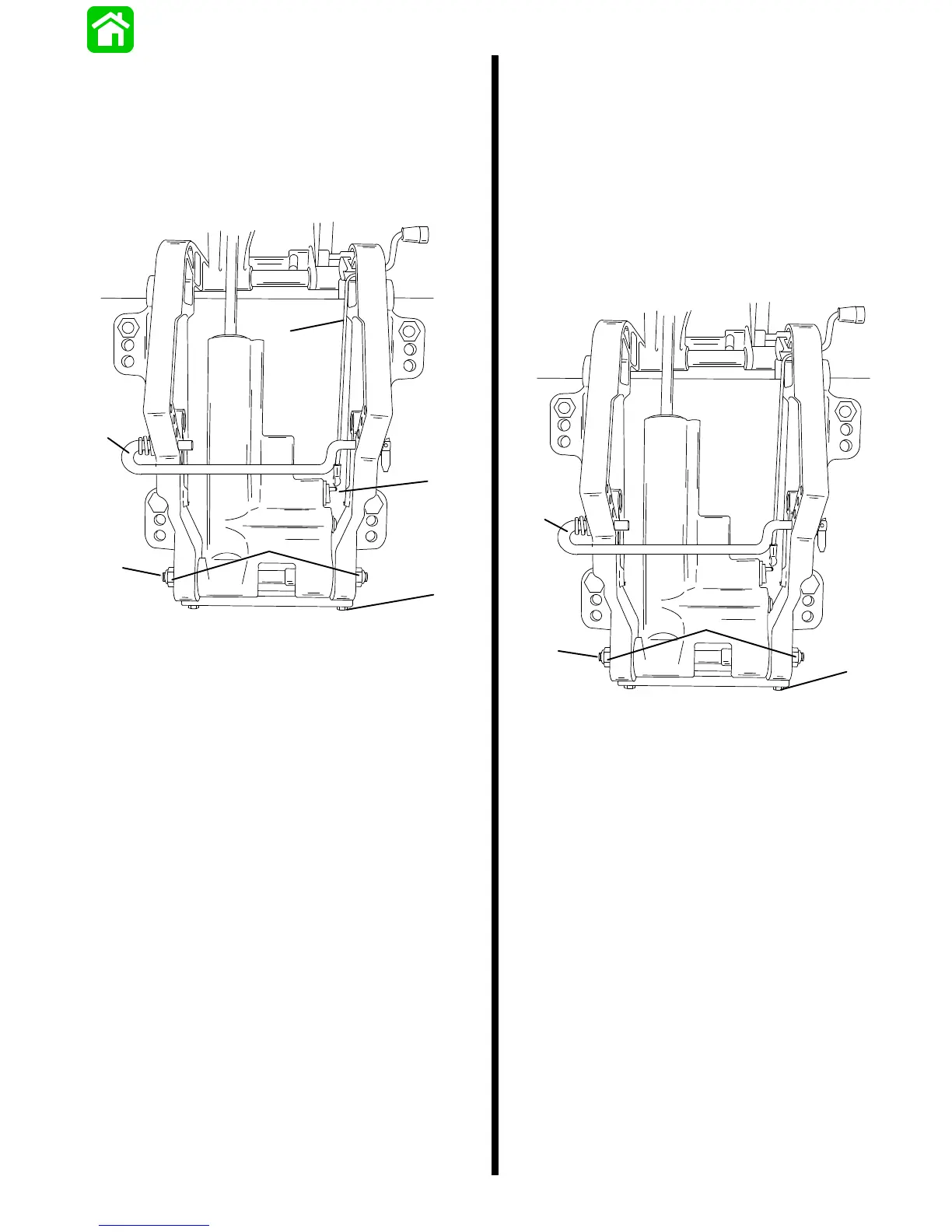

a - Tilt Lock Pin
b - Link Rod
c - Cam Lever
d - Nut (2)
e - Anode Bolt/Ground Strap
f - Pivot Pin
Manual Trim System
Installation
1. Apply 2-4-C Marine Lubricant (92-90018A12) to
surface of lower anchor pin and anchor pin hole.
Place trim into proper position. Install anchor pin
and bushings into anchor pin hole and clamp
brackets. Install nuts and washers to anchor pin
and tighten securely. Install ground strap and
anode bolt.
2. Install tilt lock pin.
a
c
b
d
a - Tilt Lock Pin
b - Nut (2)
c - Anode Bolt/Ground Strap
d - Pivot Pin
