90-826148R2 MARCH 1997 MID-SECTION - 5B-31

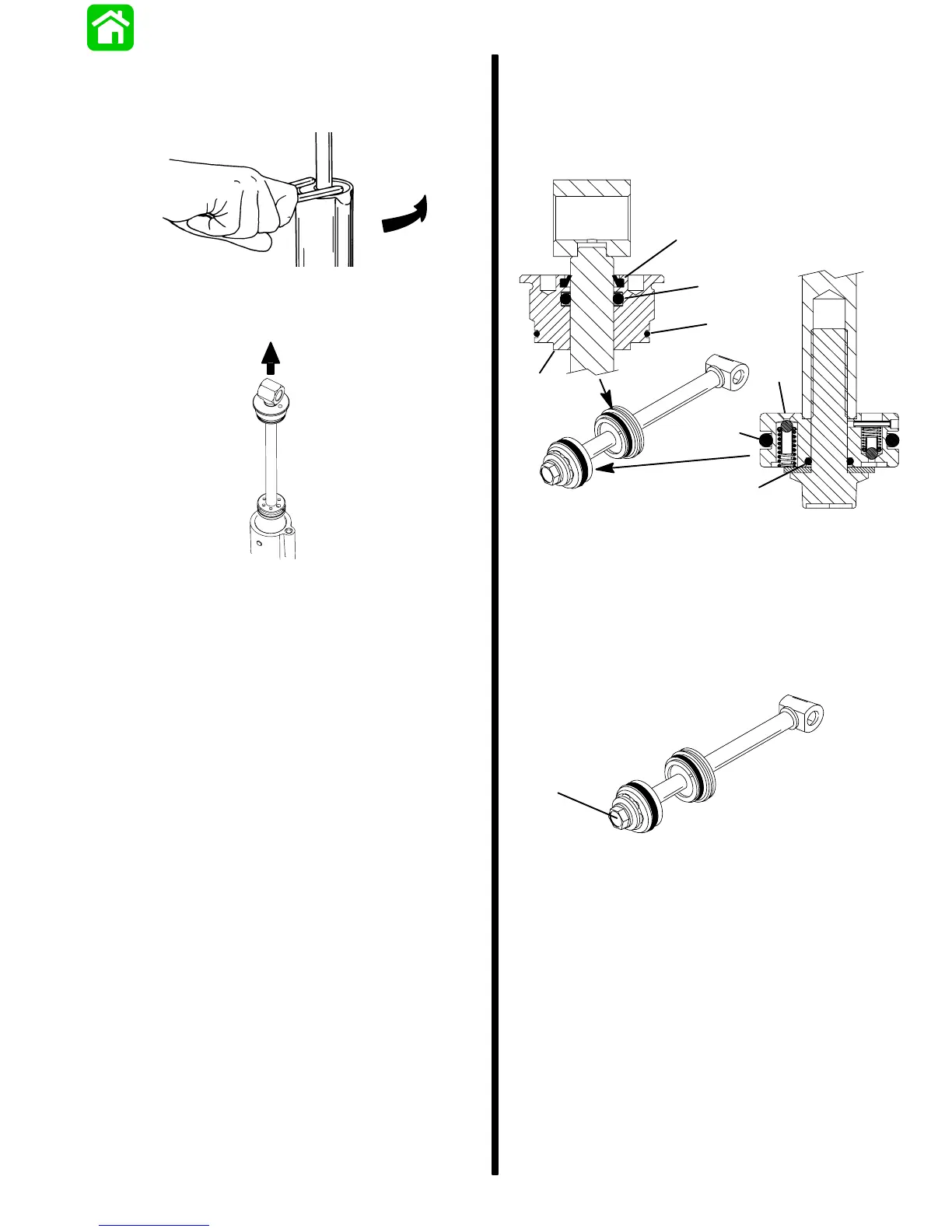

4. Secure power trim assembly in a soft jaw vise.
5. Unscrew end cap assembly from cylinder using
spanner wrench 91-74951.
6. Remove shock rod assembly from cylinder.
Shock Rod Disassembly
NOTE: The only serviceable items on the shock rod
assembly are the o-rings and wiper ring. If shock rod
requires any other repair, replace shock rod assem-
bly.
a
d
c
c
b
c
c
a - End Cap
b - Shock Piston
c - O-ring
d - Wiper Ring
1. Place shock rod assembly on clean work surface.
2. Remove bolt from end of shock rod.
a
a - Bolt
