90-826148R2 MARCH 1997 MANUAL STARTER - 8-5

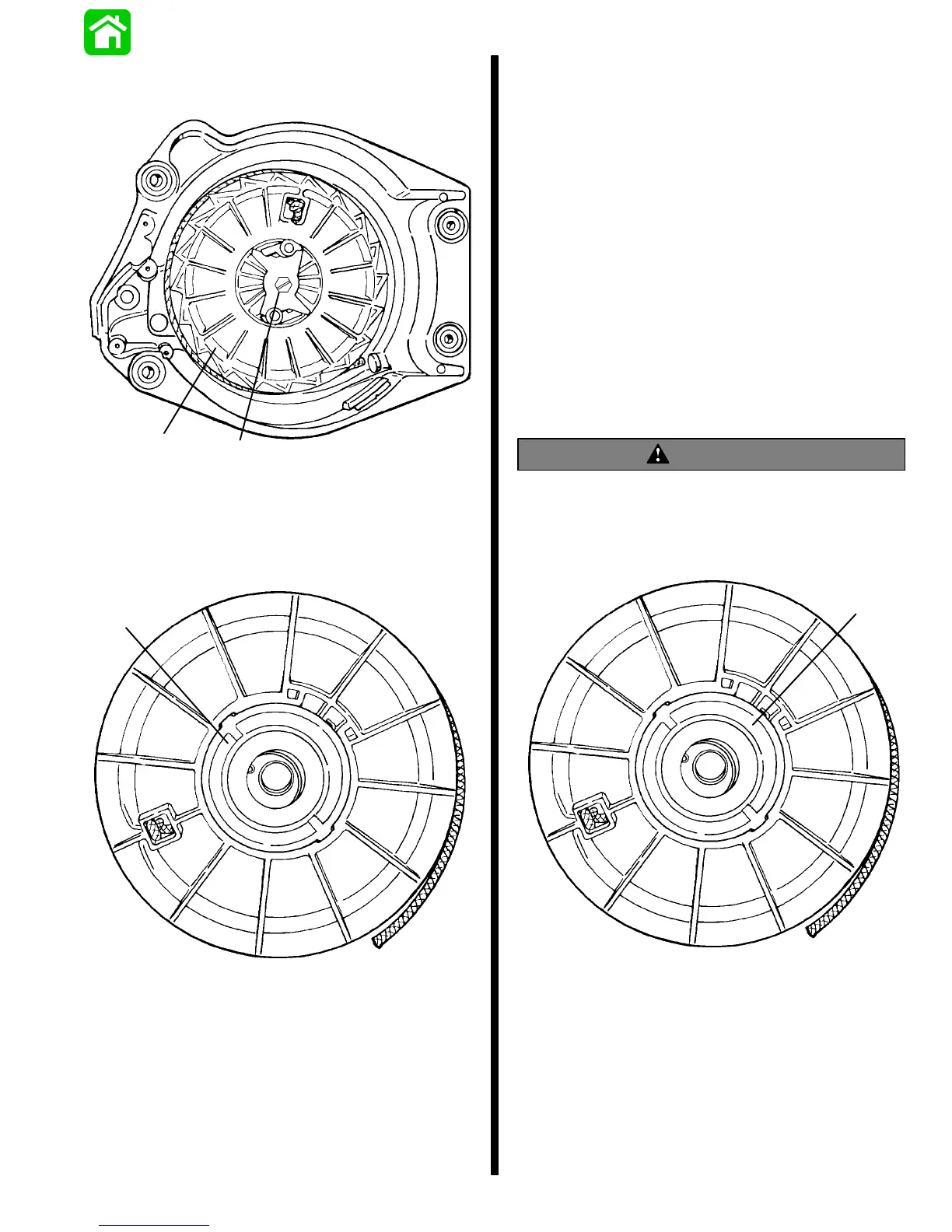

6. Remove starter sheave.
51605
a
b
a - Starter Sheave
b - Screw
7. Spring is replaced as a spring/cover assembly.
51607
a
a - Spring Assembly
Cleaning and Inspection
1. Clean components in solvent and dry with com-
pressed air.
2. Inspect rewind spring for kinks, burrs, corrosion
of breakage.
3. Inspect starter sheave, rope guide and starter
housing for nicks, grooves, cracks, wear or dis-
tortion, especially area of rope travel.
4. Inspectbushing, starterdrive pawlandspring for
wear or damage.
5. Inspect starter rope for wear.
6. Replace components as necessary.
Rewind Starter Reassembly
WARNING
When reassembling rewind starter, SAFETY
GLASSES must be worn in case rewind spring
uncoils out of the housing.
1. Install spring/cover assembly into sheave.
51607
a
a - Spring Assembly
To Next Page
