5B-36 - MID-SECTION 90-826148R2 MARCH 1997

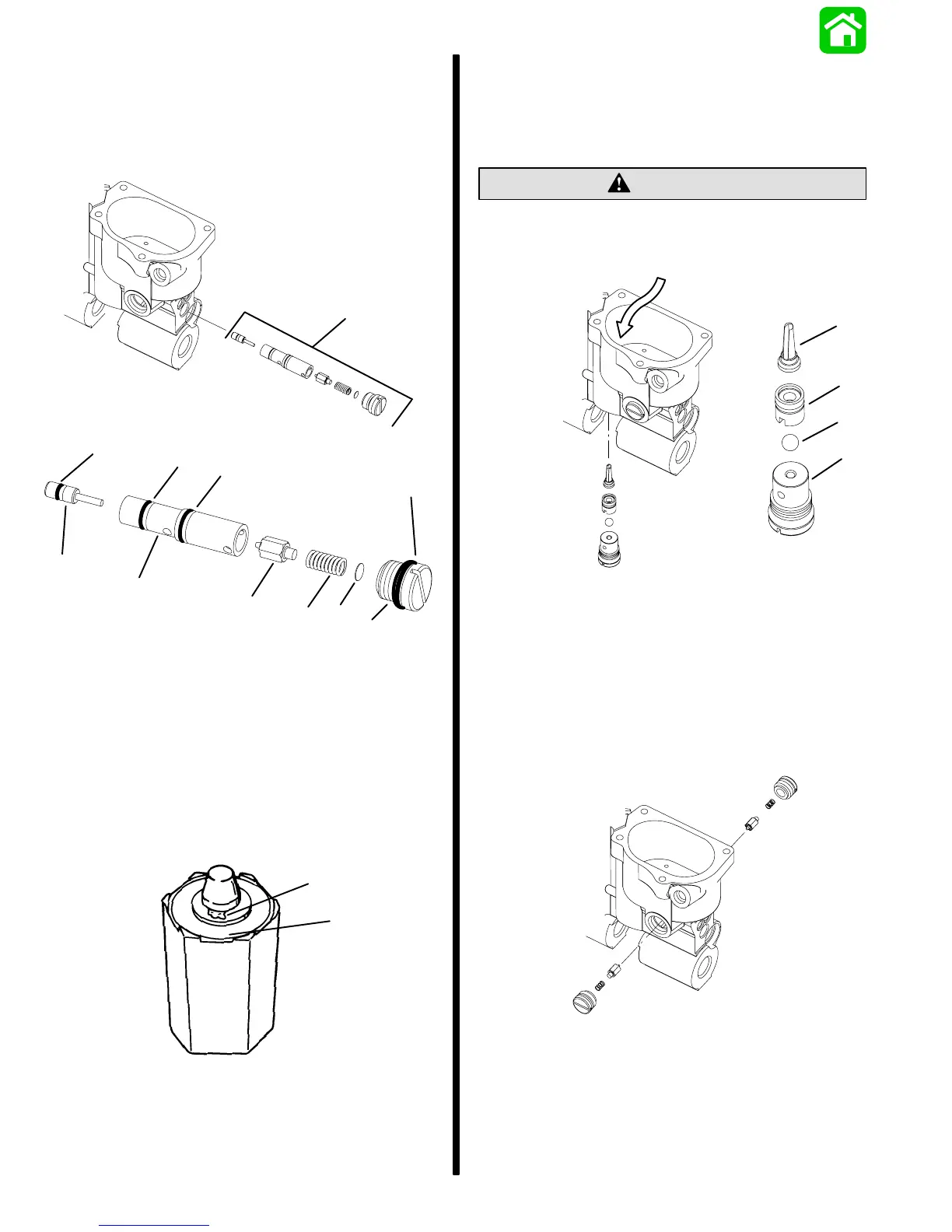

1. Unscrew plug from manifold and remove spring

and poppet assembly.

NOTE: Do not lose shim that may be lodged in the

plug.

2. Use the removal tool and pull out the pilot valve.

a - Tilt Relief Valve Assembly

b - O-Rings

c - Actuator Pin

d - Pilot Valve

e - Poppet Assembly

f - Spring

g - Shim

h - Plug

IMPORTANT: Inspect poppet assembly for debris

in the area shown. If debris is found on poppet re-

place poppet.

a - Debris Under Valve Tip

b - Rubber Seat

Suction Seat Removal

1. Unscrew plug from manifold and remove ball.

2. Use a pin punch and knock the filter and suction

seat out from the inside of the manifold cavity.

CAUTION

DO NOT use any tool on the suction seat as any

damage to the surface will not allow the ball to

seat.

a - Filter

b - Suction Seat

c - Ball

d - Plug

Pilot Check Valve Assembly Removal

1. Unscrew both plugs.

2. Remove both springs and poppets.
