5C-4 - MID-SECTION 90-826148R2 MARCH 1997
Hydraulic Assist
Adjustments
WARNING
This hydraulic assist system’s contents are un-
der pressure. Do not puncture disassemble or
apply heat or flame.
IMPORTANT: If debris or leaking is found, unit
mustbe replaced This hydraulic assist systemis
NOT SERVICEABLE. Replace is necessary.

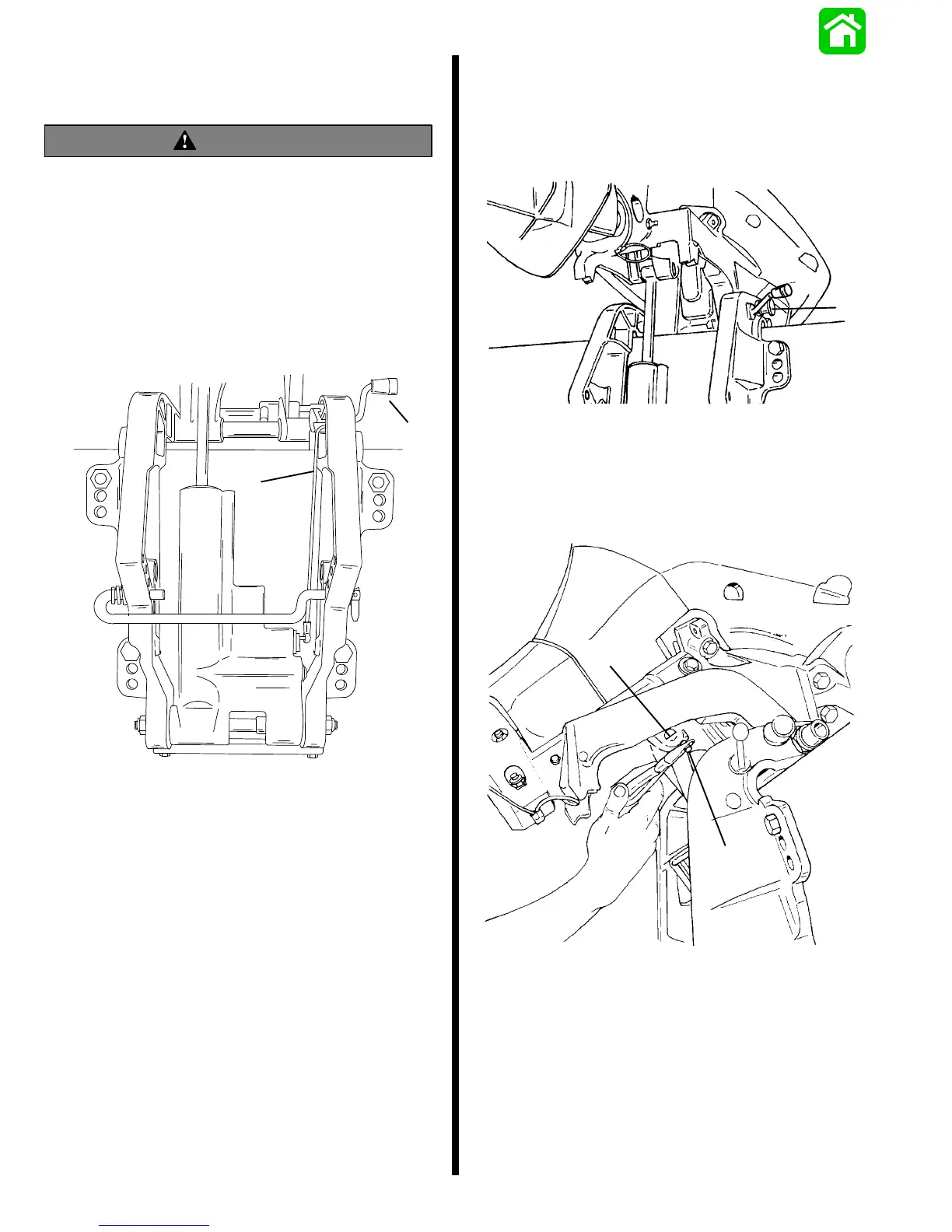

1. Check manual release cam adjustment. Cam
must open and close freely. Adjust cam link rod
as necessary.
a
b
a - Link Rod
b - Manual Release Lever
2. Checkforexternalleaksinthemanualtiltsystem.
Replace unit if leak is found.
Manual Trim System
Removal
1. Tilt outboard to the full up position and support
with tilt stop pin.
a
a - Tilt Stop Pin
2. Remove the trilobe pin.
3. Drive out the upper pivot pin.
a
b
a - Trilobe Pin
b - Upper Pivot Pin
To Next Page
