4-10 - POWERHEAD 90-826148R2 MARCH 1997

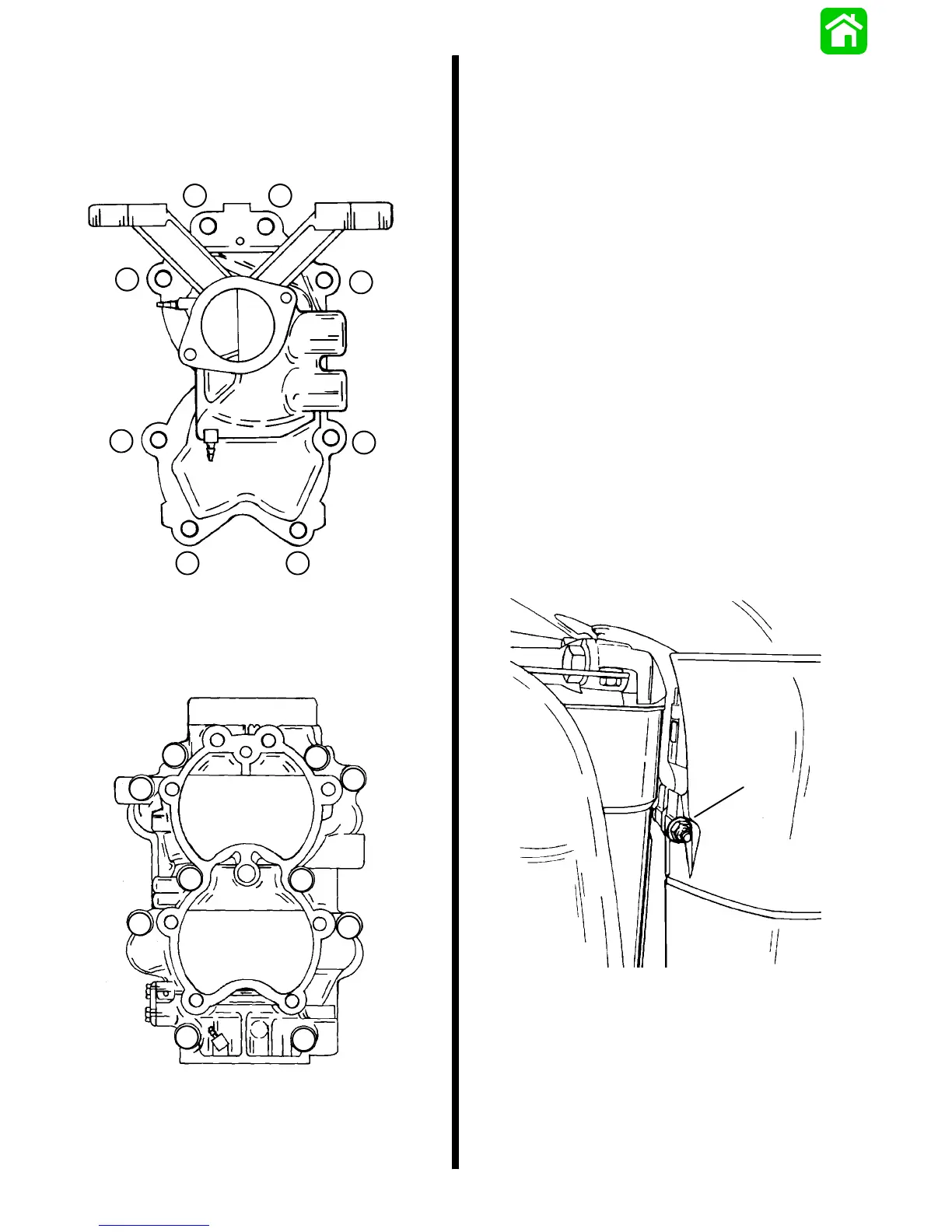

Torque Sequence
Intake Manifold Bolts
Torque bolts to 16.5 lb. ft. (22.4 N·m).
1
2
3
4
5
6
7 8
Crankcase Cover Bolts
Torque bolts to 16.5 lb. ft. (22.4 N·m).
1
2
3
4
5
6
7
8
9
10
Powerhead Removal
1. Disconnect batteryleads frombattery (if applica-
ble).
2. Remove spark plug leads from spark plugs.
3. Disconnect remote control harness from engine
(if applicable) - or lanyard and stop button/horn
wiring on manual models.
4. Disconnect fuelconnector from engine. Fuelline
mustalsoberemovedateitherenginetrayorfuel
filter.
5. Remove throttle and shift cables.
6. Remove BLACK ground lead between power-
head and engine tray.
7. Remove tell-tale hose from powerhead.
8. Remove anti-start in gear cable on manual start
modelsand disconnectneutral switchbulletcon-
nectors on all models.
9. Removeprimerhosesfrom carbandmanifoldon
manual start models and remove recoil starter.
10. Remove bolt, nut and flatwasher securing upper
drive shaft housing cover and remove cover.
52687
a
a - Bolt, Nut, Flat Washer
To Next Page
