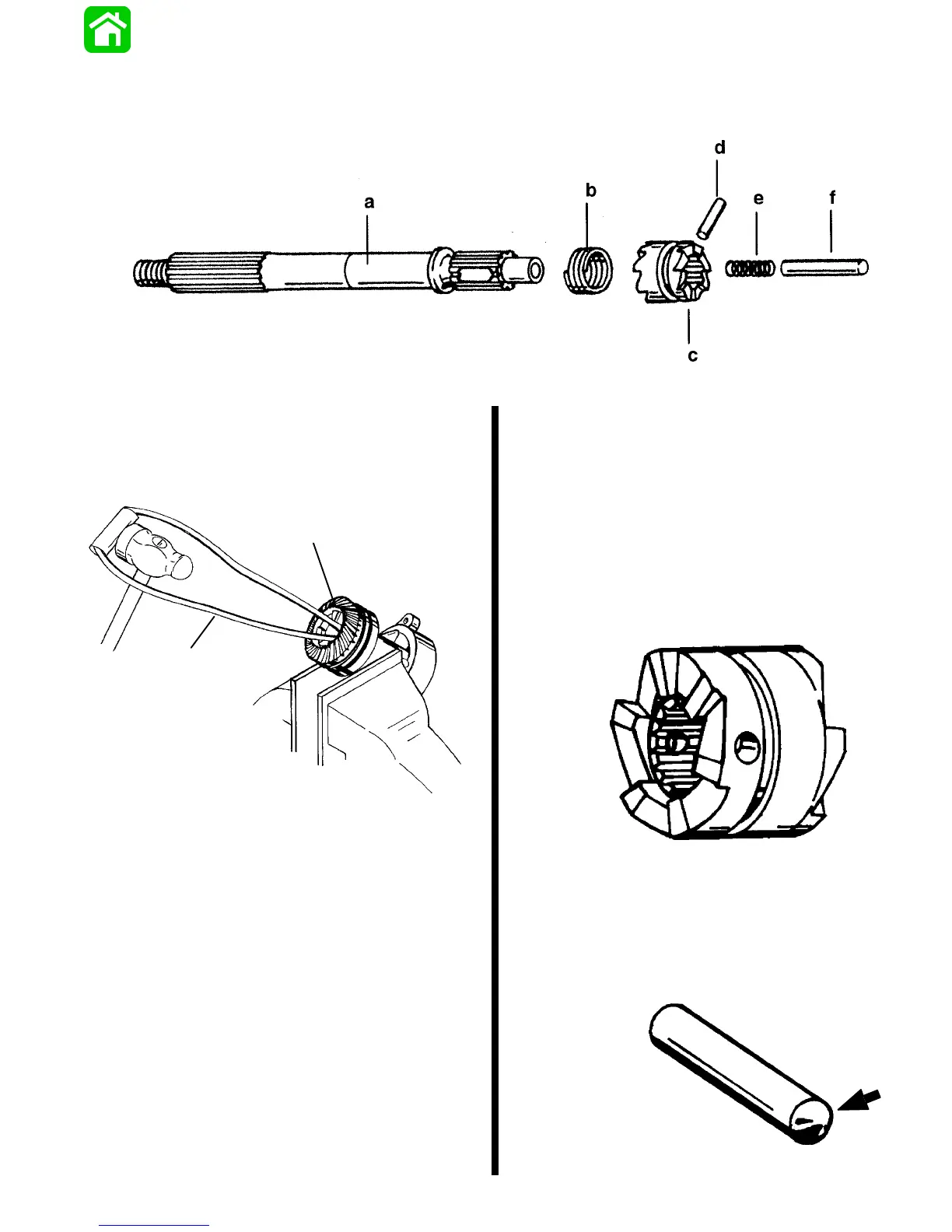

LOWER UNIT - 6-1990-826148R2 MARCH 1997
Propeller Shaft Disassembly
1. Remove propeller shaft from carrier and disas-
semble shaft.
52877
a - Prop Shaft
b - Retaining Spring
c - Clutch Dog
d - Cross Pin
e - Cam Follower Spring
f - Cam Follower
2. Remove reverse gear and bearing from carrier
with Puller 91-27780.
52840
a
b
a - Reverse Gear and Bearing
b - Puller (91-27780)
Propeller Shaft and Carrier
Inspection
Clutch Dog
1. Inspect clutch jaws for chips or rounding off.
2. If wearispresent,inspectcorrespondingforward
or reverse gear matching jaws for similar wear.
Replace appropriate components as required.
52824
Cam Follower
1. Inspect cam follower for wear or galling.
2. If wear is present, inspect corresponding shift
cam for wear. Replace if worn.
52822
