Basic Operations
4
6
Installing a tool
For this device, attach both of a cutter to cut patterns and a pen (a rollerball) to plot characters.

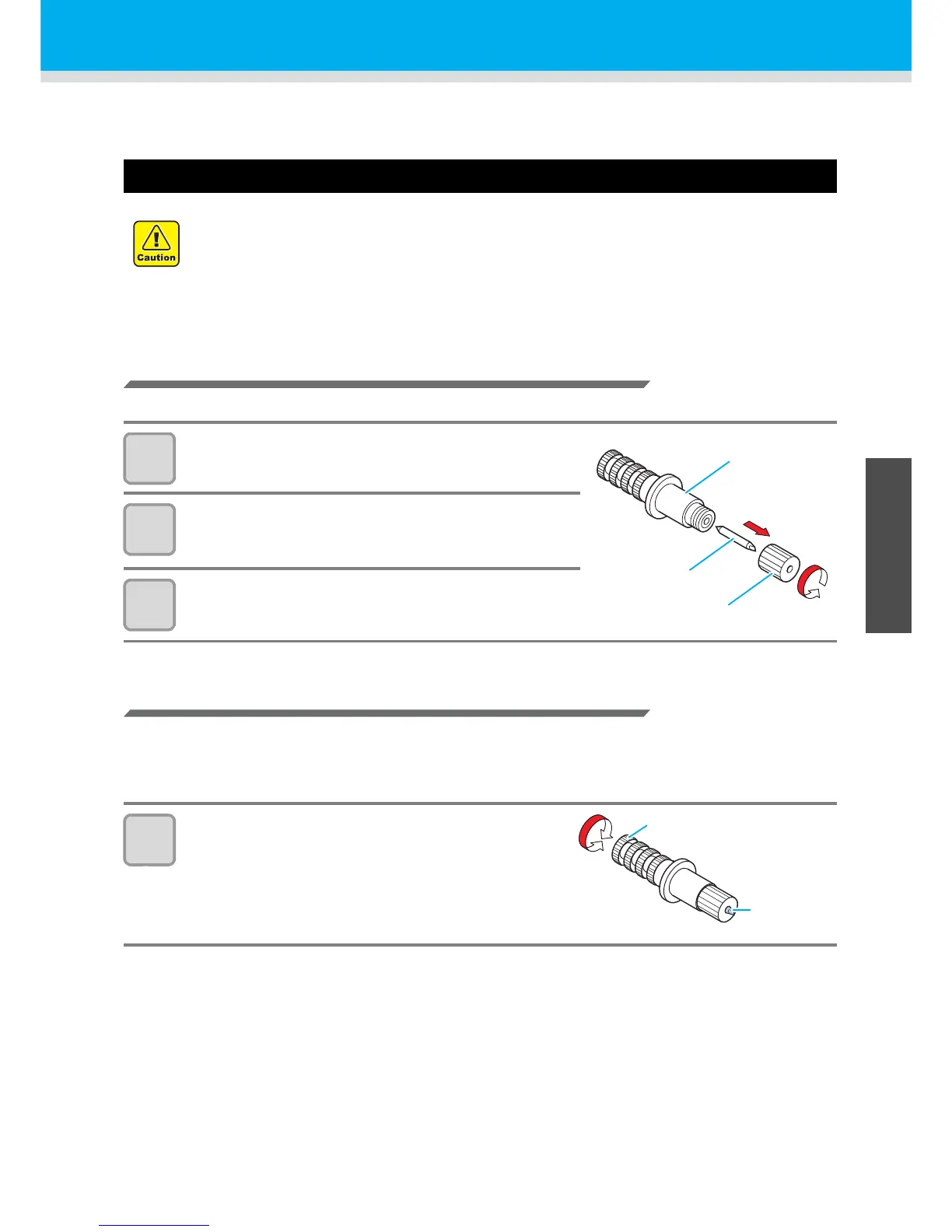

How to install a cutter
Mounting a Cutter Blade
Mount the cutter blade (SPB-0082) on the cutter holder.
1
Loosen the cutter holder cap.
2
Hold the cutter with a pair of tweezers etc. and put
it into the cutter holder.
3
Tighten the cap of the cutter holder.
Adjusting the protrusion of the cutter blade
Adjust the cutter blade according to the types of the cutters and the sheet for use.
After adjusting the protrusion of the cutter blade, set the cutting conditions and conduct test cutting to check the
cutting quality.
You can adjust the cutter blade protruding amount with the attached cutter holder on the pen carriage.
1
Turn the adjusting knob to adjust the protruding
amount of the cutter blade.
• When you revolve the adjusting knob clockwise, the blade
comes out. (0.5 mm per revolution)
• Adjust the protruding amount of the cutter blade by using
sheet thickness + 0.3mm as reference.
• Do not touch the cutter blade, which is very sharp.
The sharp blade edge of the cutter may cause you to get injured.
• After you set the cutter, do not shake the cutter holder.
Otherwise, the blade edge may pop out, causing you to get injured.
• Store the cutter blade in a place that is out of the reach of children. In addition, dispose of
used cutter blades according to regional laws and regulations.
