3-2

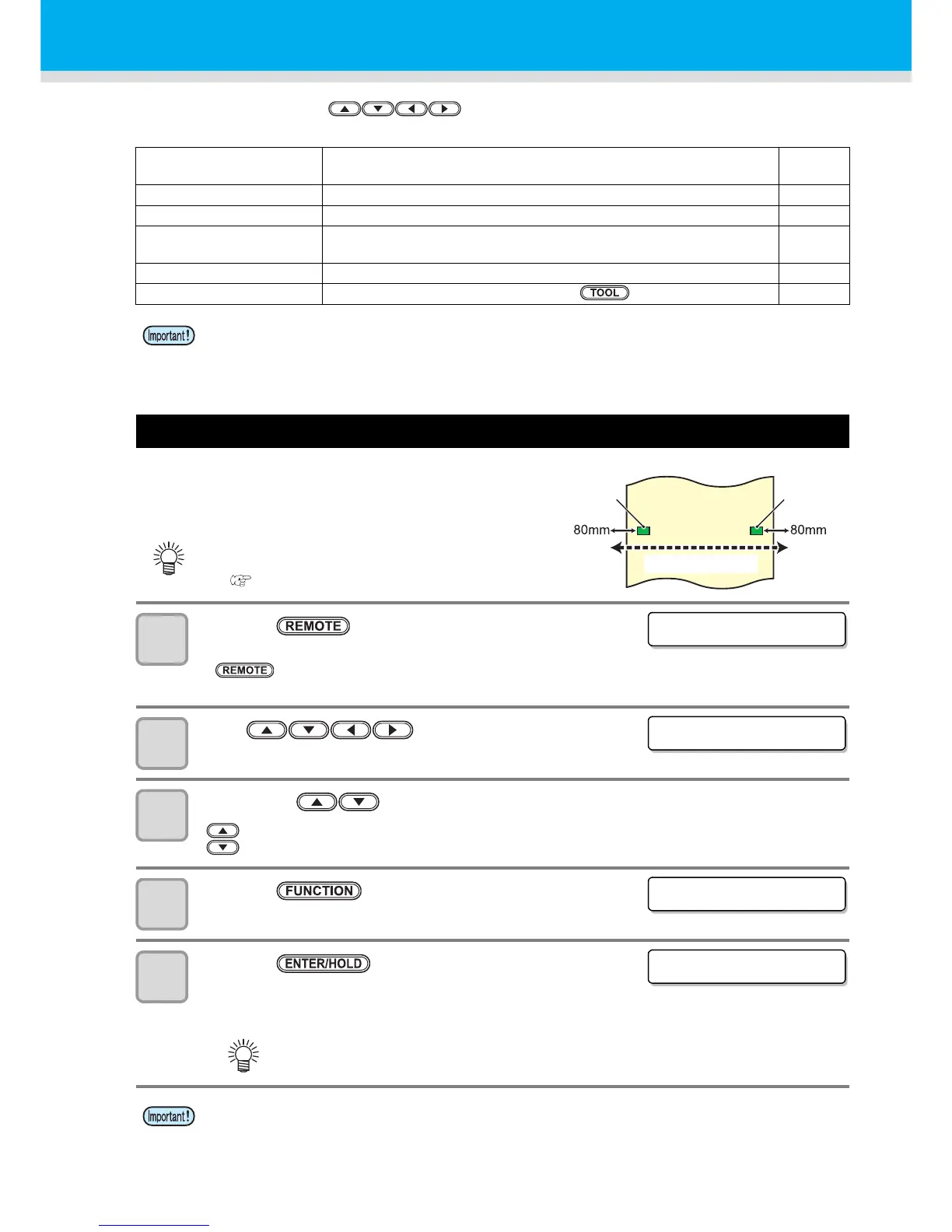

Function by jog mode
When you press the jog keys in the local mode, the device enters into the jog mode.
You can set each setting below in the jog mode.
Paper cut
Cut off the sheet on the current tool position.
When you use the paper cut function, the device will cut up to
80mm from outside the pinch roller.
1
Press the key to select LOCAL mode.
• Check that cutting (plotting) does not start even if you press the
key and the device enters into the remote mode in
advance.
2
Press to enter into the jog mode.
• When you press any jog key, the device enters into the jog mode.
3
By pressing , feed the sheet to the position where you cut the sheet off.
: Moves the sheet to the rear side.
: Moves the sheet to the front side.
4
Press the key.
5
Press the key.
• Cut the sheet off.
• When the cutting has been completed, the current mode returns to LOCAL mode.
Function Name Meaning
Reference
Page
Origin setting Sets the position to start cutting (plotting).
P. 2- 2 2
Paper cut (Cutting off) Cuts off the sheet on the current tool position.
P. 3 -2
Axial correction of two
positions
When you set the sheet such as a graph paper with the vertical line and the
horizontal line, aligns the vertical axis and the horizontal axis with these lines.
P. 3 -3
Setting cut area Sets the cutting (plotting) area.
P. 3 -4
Moving up/down of pen Moves the tool up and down. (Press the key in the jog mode.)
-
• Before setting the function by the jog mode, be sure to check that there is no data to cut (plot).
• When you set the position of origin etc. in the jog mode, the center of the tool becomes the specified
position.
• When you cut off the sheet automatically each time
cutting (plotting) is completed, set the automatic cut
( P.3-20) to “ON”.
• When the pre-feed setting is valid, the pre-feed operation is performed and then the
device returns to the local mode.
• When the pinch roller 1 and 4 are set to the max. width, the paper cut area is as below:
About 80mm to right from inside of the pinch roller 1
About 40mm to left from inside of the pinch roller 4
To Next Page
