3-10

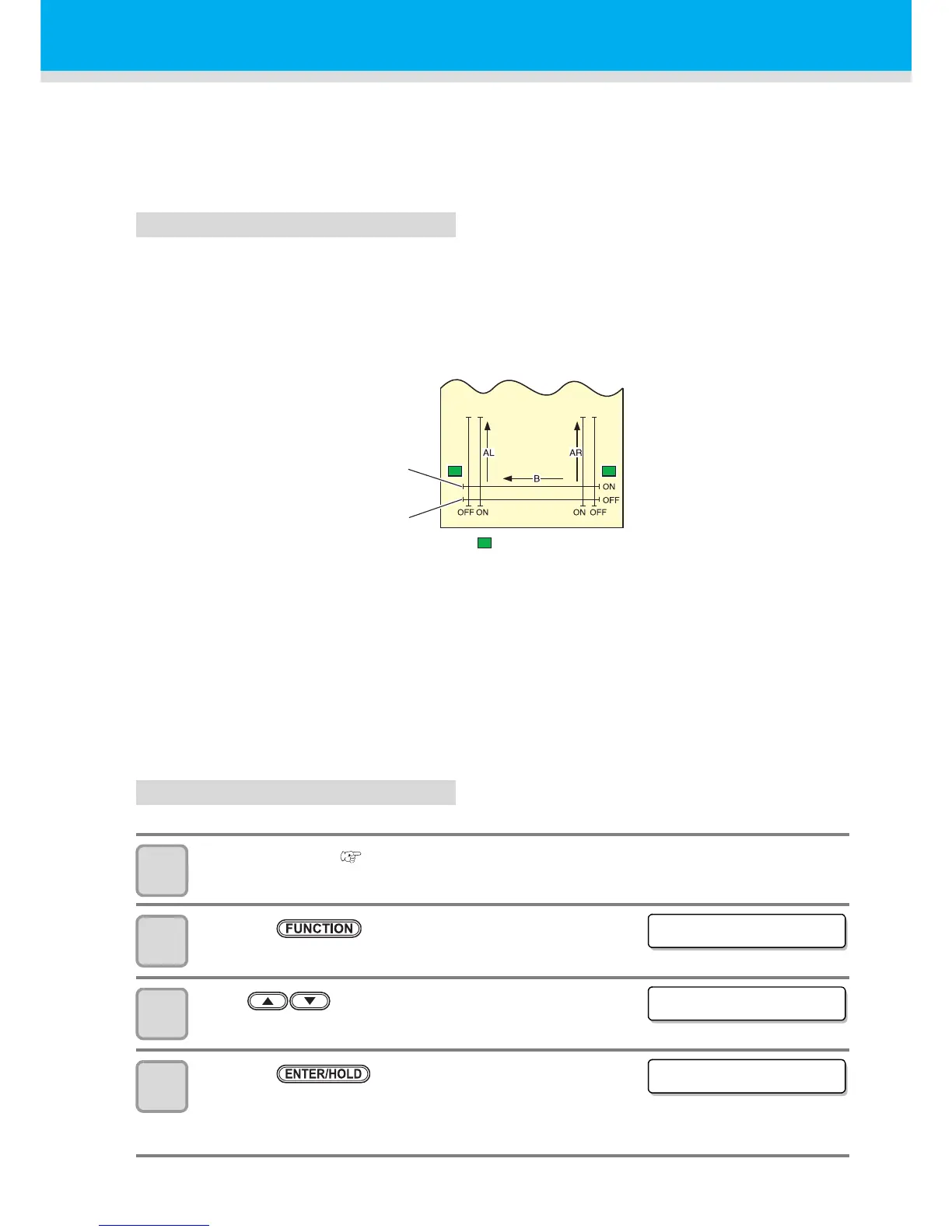

Distance correction
When you cut the long data, the cut length may have difference depending on the sheet thickness. In addition,
depending on the difference of the grid roller diameter, the moving amount of right and left of the sheet may
have difference. Correct these differences.
You can select the distance correction from eight types (No. 1 to No. 8).
Calculating method of correction value
Correction value = (Actual measured value of OFF line) - (Entered standard length)
Ex) • Actual measured value of OFF line : 999.0 mm
• Entered standard length : 1000 mm
• 999.0 - 1000 = -1.0 m / (correction value)
Set value:
• Standard value
A direction: 500, 1000, 1500, 2000, 2500 (mm)
B direction: 200, 400, 600, 800, 1000, 1200 (mm)
• Correction value:
A direction: Standard length ± 2% (0.1mm step)
B direction: Standard length ± 2% (0.1mm step)
• Plotting offset: 0 to 300mm
Setting procedures
1
Mount the sheet. ( P.2-11)
• Set the sheet to plot the distance correction adjusting pattern.
2
Press the key in LOCAL mode.
3
Press to select [DIST.COMP.].
4
Press the key.
• The correction value registered in AR (right side of front-back
direction), AL (left side of front-back direction) and B (right-left
direction) of No.1 are displayed.
To Next Page
