Basic Operations
4
6

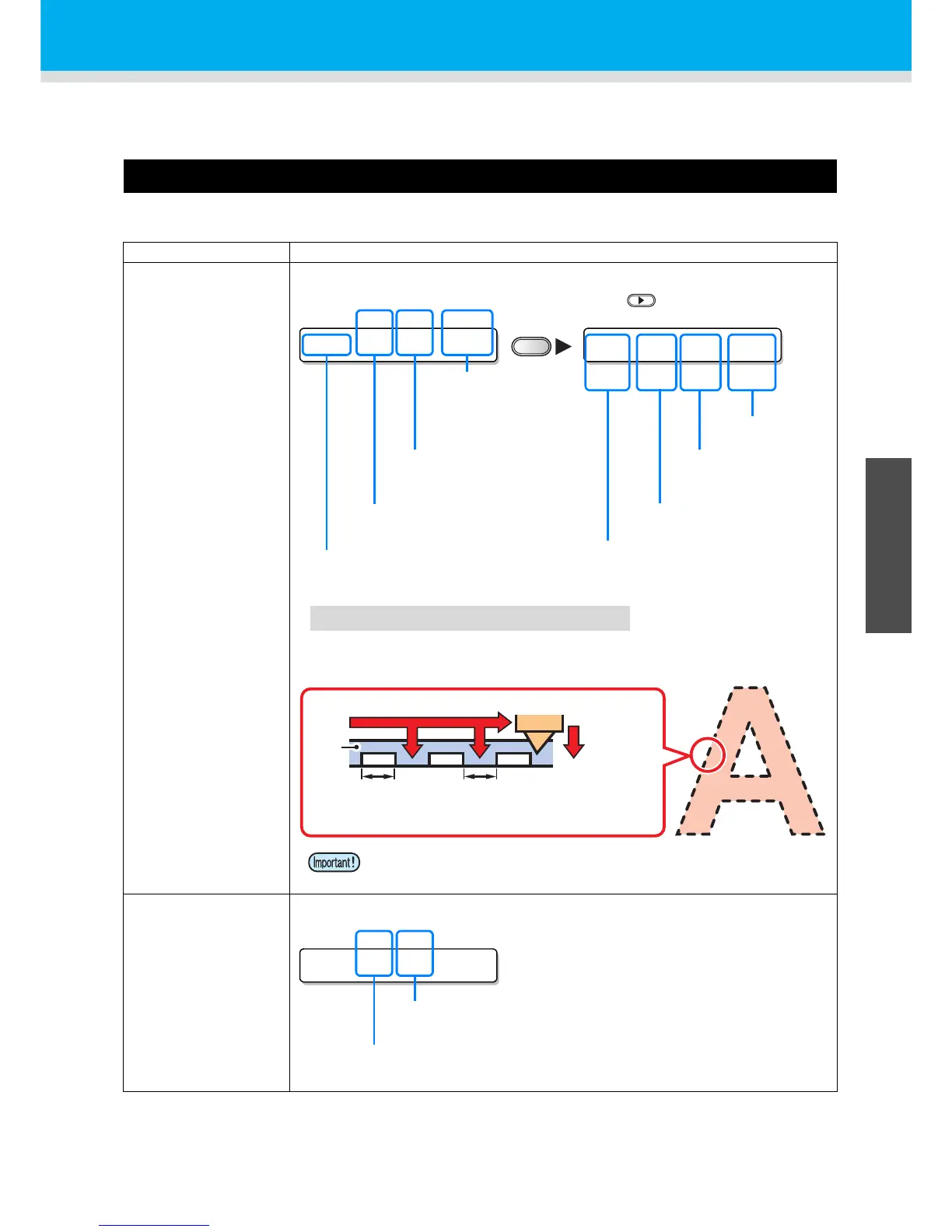

About Tool Conditions
You can register the cutting speed and the pressure depending on the sheet or the tool type to be used. (Tool
condition)
Kinds of the Tool Conditions
A tool condition consists of cutting conditions (CUT1 to CUT7), printing-with-a-pen condition (PEN).
Kinds Description
Cutting Condition
(CUT1 to 7)
This is a tool condition when a cutter is used.
About Half Cutting
You can cut on the dotted line, not to cut sheet out. (Half cut)
When you set half cut to valid (ON), you can use the half cut function.
Plotting Condition
(PEN)
This is a tool condition when the pen is used.
CUT* 20 050 0 . 30 OFF 00 1 . 0 100
SPEED PRESS OFFSET
OFFSET
The distance from the
center of the cutter holder
to the cutter blade. (mm)
PRESS
The pressure required for
cutting. (g)
SPEED
The speed of cutting.
Cutting condition No.(1 to 7)
When you press the key,
it moves to the half cut condition.
CUT LENGTH
Length to be cut. (mm)
HALF LENGTH
Length to be left (not to
be cut). (mm)
HALF PRESS
Pressure of left part. (g)
HALF
Valid (ON) or invalid (OFF) of half cut.
HALF HALF HALF CUT
PRESS LENGTH LENGTH
Cutter
Set the length to be
left (not to be cut) with
HALF LENGTH.
Sheet
Set the length to
be cut with
CUT LENGTH.
Set the cutting
pressure with
HALF PRESS.
• The illustration above is the image. The shape of cut surface differs
depending on the cutting conditions.
PEN 4 0 0 60
SPEED PRESS OFFSET
PRESS
The pressure required for plotting. (g)
SPEED
The speed of plotting.
