Special Imaging Modes
11-22
11.3.4 Free Xros M Image Parameters

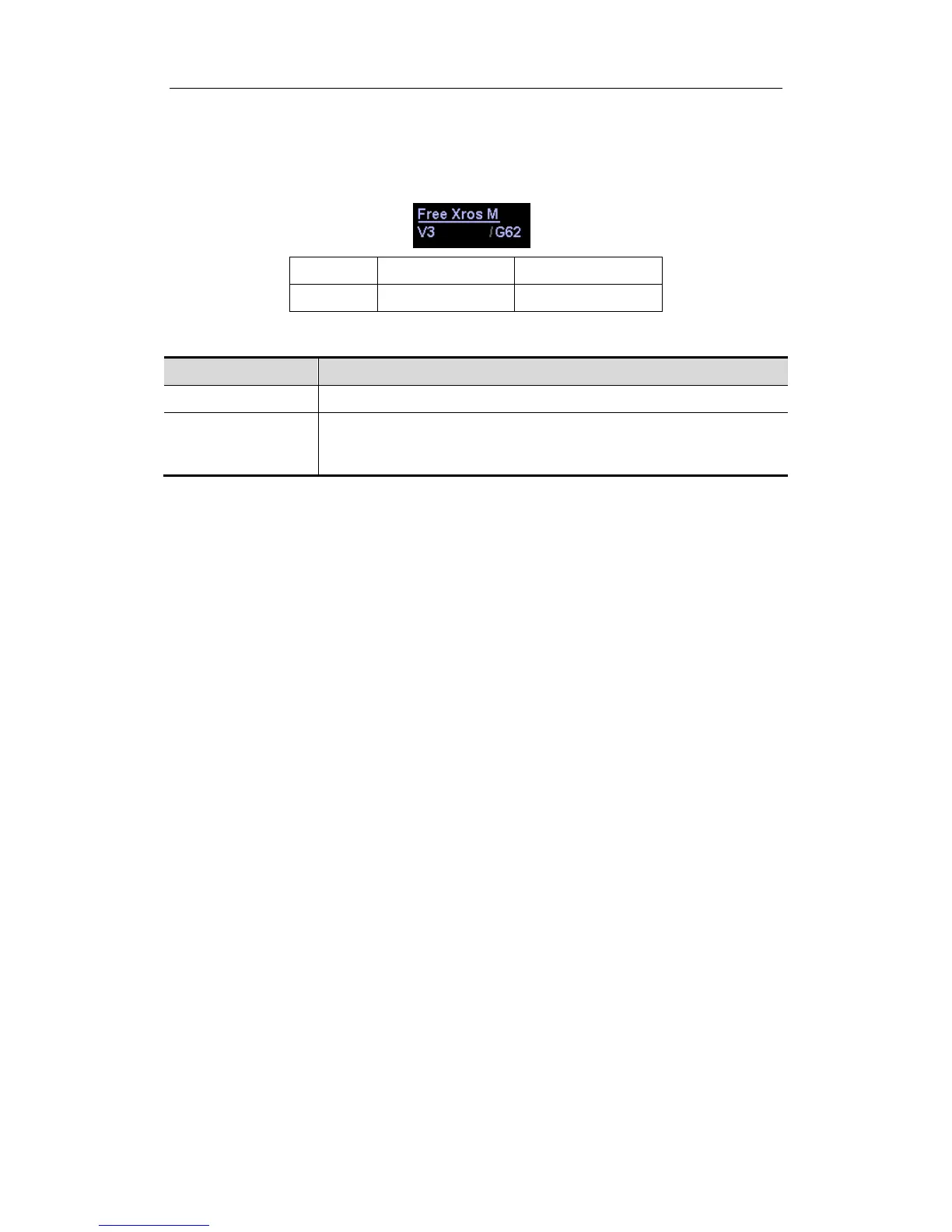

îš„ In Free Xros M mode imaging, the image parameter area in the upper left corner of
the screen displays the real-time parameter values as follows:
Display G 62 V 3
Parameter Free Xros M Gain Free Xros M Speed
îš„ Parameters that can be adjusted to optimize the Free Xros M mode image are
indicated in the following.
Adjustment Items
Control Panel Gain, TGC
Menu and Soft
Menu
Colorize, Post Process (γ, curve, gray rejection), Display Format,
Display, Mark Adjustment, Time Mark, Angle, Speed, Gray Map,
Colorize Map
îš„ During real-time Free Xros M mode imaging, menus for B mode, Free Xros M mode
and other modes are displayed in the soft menu at the same time, use the left/right
keys of soft menu controls <4> to switch the menus.
îš„ Parameters consistent with those in M mode are not to be introduced, please refer to
relevant section of the M mode, while special items of the Free Xros M mode will be
introduced in the following.
îš„ Items that appear in the menu or the soft menus are dependent upon preset, which
can be changed or set through "[Setup] → [Image Preset]"; please refer to "17.8
Soft-key and Menu Preset" for details.
z Display or Hide the M-mark Line
Description There are 3 M-mark lines available, each with a symbol of
"A", "B" or "C" at one end as identification and an arrow on the
other end as a mark for direction.
Operation Click [Show A], [Show B], [Show C] in the soft menu or menu
to display or hide the sampling line, and the corresponding
image will be displayed on the screen once the related item is
selected.
Impacts When there is only one M-mark line on the screen, you
cannot hide it.
z Switching between the M-mark Lines
Description To switch between the M-mark lines in Free Xros M mode.
Operation Press <Set> to switch between the M-mark lines and press
the multifunctional knob to show the cursor.
The activated M-mark line will be green and the inactivated
one will be white.
z Adjustment of the M-mark Line
Description To adjust the position and angle of the M-mark line.
To Next Page
