Probes and Biopsy
18-43
NGB-016

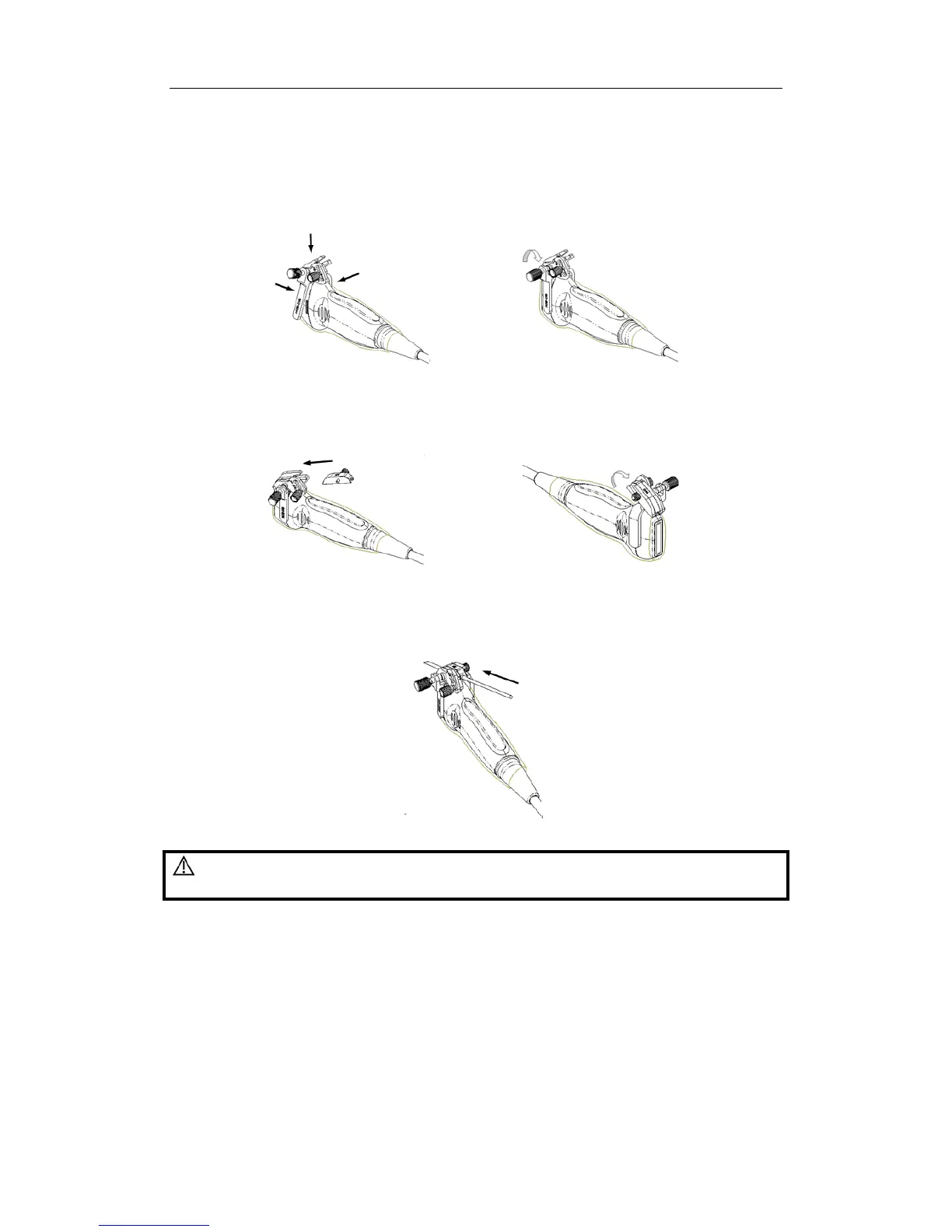

(1) Put on the probe sheath.
(2) Select a proper needle-guided bracket, and match the groove with the tab of the
probe. Mount the bracket onto the probe.
(3) Screw the pinch nut of the needle-guided bracket to confirm that the
needle-guided bracket is properly installed on the probe.
(4) Select the appropriate guiding block, and fit it into the groove on the angle block.
(5) Screw the nut on the guiding block to secure the guiding block with the
needle-guided bracket.
(6) Insert the needle of the same specification with that of the guiding block into the
guiding hole.
CAUTION:
Ensure that all guide parts are seated properly prior to
performing a biopsy.
18.2.4 Entering or Exiting Biopsy Menu
To enter the biopsy,
1 Press the [Biopsy] key on the control panel, and the screen displays “Please verify
guidelines before biopsy”. Click [OK] to show the biopsy guide line.
2 Press the [Menu] key to show the image menu, and move the cursor onto the menu
title and click Biopsy in the pop-up menu. A screen will open as shown in the figure
