10 Buffer Memory
10.13 [BFM#16384 to #16415] Ver. 2 Compatible Remote
128
FX3U-16CCL-M User's Manual

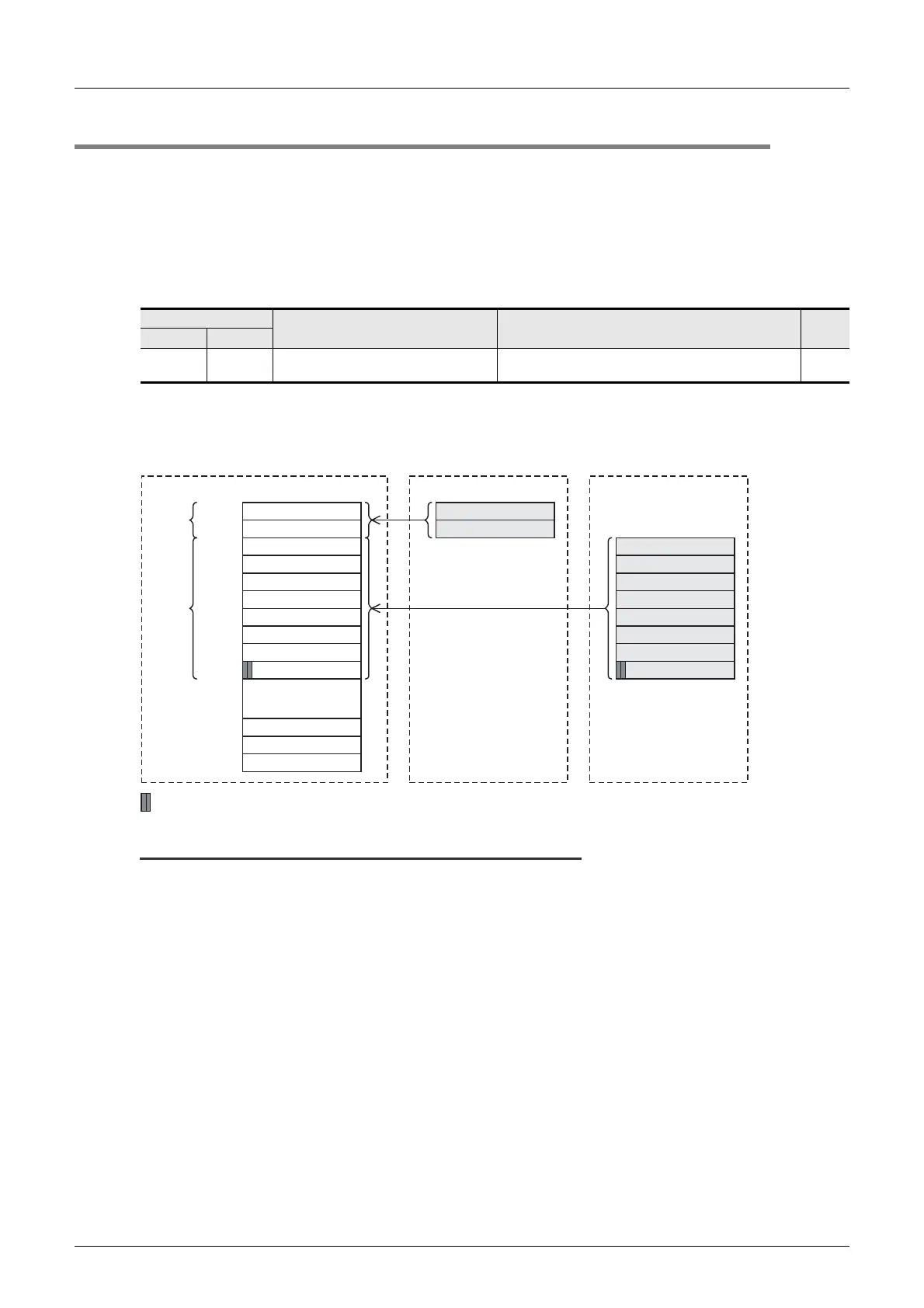

10.13 [BFM#16384 to #16415] Ver. 2 Compatible Remote Input (RX)
Used when the remote net ver. 2 mode or remote net additional mode is selected.
The input status from remote I/O stations, remote device stations and intelligent device stations are stored.
When 1 station is occupied, 2, 4 or 8 words are used. The number of used points changes depending on the
expanded cyclic setting and the number of occupied stations.
In addition, the ver. 2 compatible remote input (RX) is assigned to the following buffer memories according to
slave station offset and size information (RX offset, RX size).
→ For details on the expanded cyclic setting and number of occupied stations, refer to Section 2.3.
→ For details on the slave station offset and size information, refer to Section 10.11.
Example
Caution
• When the TO instruction (or direct buffer memory specification) is executed, writing is invalid.
When the FROM instruction (or direct buffer memory specification) is executed for reading from an area
without assigned link points, the reading operation results in "0" being read.
• The last two bits cannot be used in the communication between the master and intelligent device stations.
• The upper 16bits (1 word) in the last station of remote stations and intelligent device stations is occupied
as a system area. For details, refer to the each unit's manuals.
BFM No.
Item Description R/W
Hex. Dec.
#4000H to
#401FH
#16384 to
#16415
Ver. 2 compatible remote input (RX)
Stores the input status from a remote station and
intelligent device station.
R/O
Master station
Remote I/O station
(Station No. 1:
Occupies 1 station)
RX F to RX 0
RX 1F to RX 10
RX 2F to RX 20
RX 3F to RX 30
RX 4F to RX 40
RX 5F to RX 50
RX 6F to RX 60
RX 7F to RX 70
RX 8F to RX 80
RX 9D to RX 90
RX1EF to RX1E0
RX1FF to RX1F0
to
Remote input (RX)
4000H
4001H
4002H
4003H
4004H
4005H
4006H
4007H
4008H
4009H
401FH
401DH
401EH
Station
No. 1
Station
No. 2
X0F to X00
X1F to X10
RX F to RX 0
RX 1F to RX 10
Remote device station/
Intelligent device station
(Station No. 2:
Occupies 4 stations)
BFM No.
to
RX 2F to RX 20
RX 3F to RX 30
RX 4F to RX 40
RX 5F to RX 50
RX 6F to RX 60
RX 7D to RX 70
RX1DF to RX1D0
: The last two bits cannot be used in the communication between the master and intelligent device stations.
(In the example above, RX9E and RX9F cannot be used.)
Remote input (RX)
