Mitsubishi FX3U-16CCL-M User Manual

11 Programming
11.1 Precautions in Programming
132
FX3U-16CCL-M User's Manual
11. Programming
11.1 Precautions in Programming
This section describes precautions in creating a program.
1. Create a read program from the remote input RX after data link startup. Create a write
program to the remote output RY at the end of the entire program.
2. Create such a program that read of received data and write of transmission data are
executed after the master station becomes the data link status (after the BFM#10 b1 turns
ON).

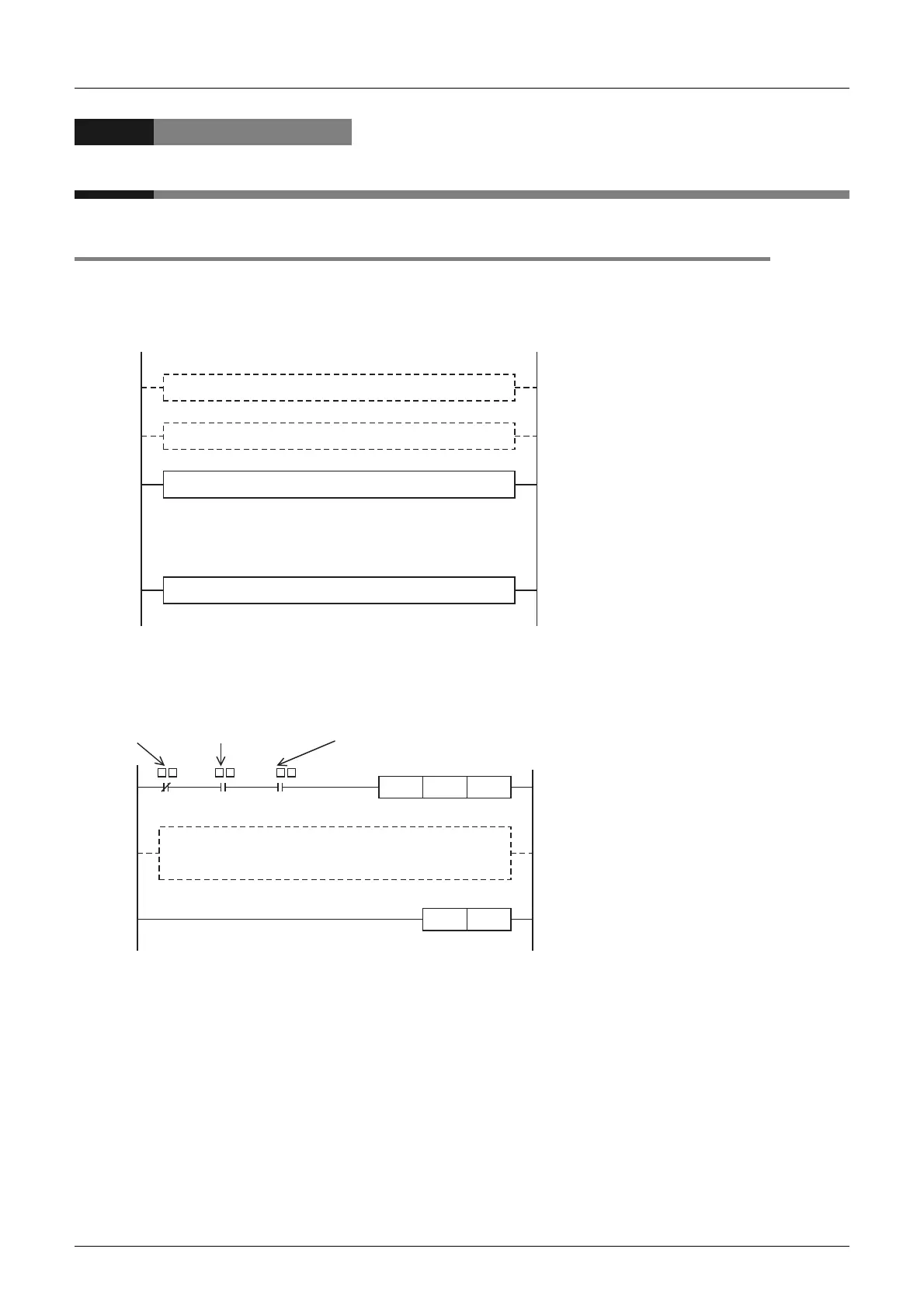

Parameter setting
Data link startup
Read from remote input (RX)
Write to remote output (RY)
.......
M M M
M0N0MC
Program for communication
N0MCR
Unit error
(BFM#10 b0)
Unit ready
(BFM#10 b15)
Data link status in master
station (BFM#10 b1)
