3 System Configuration
28
FX3U-16CCL-M User's Manual

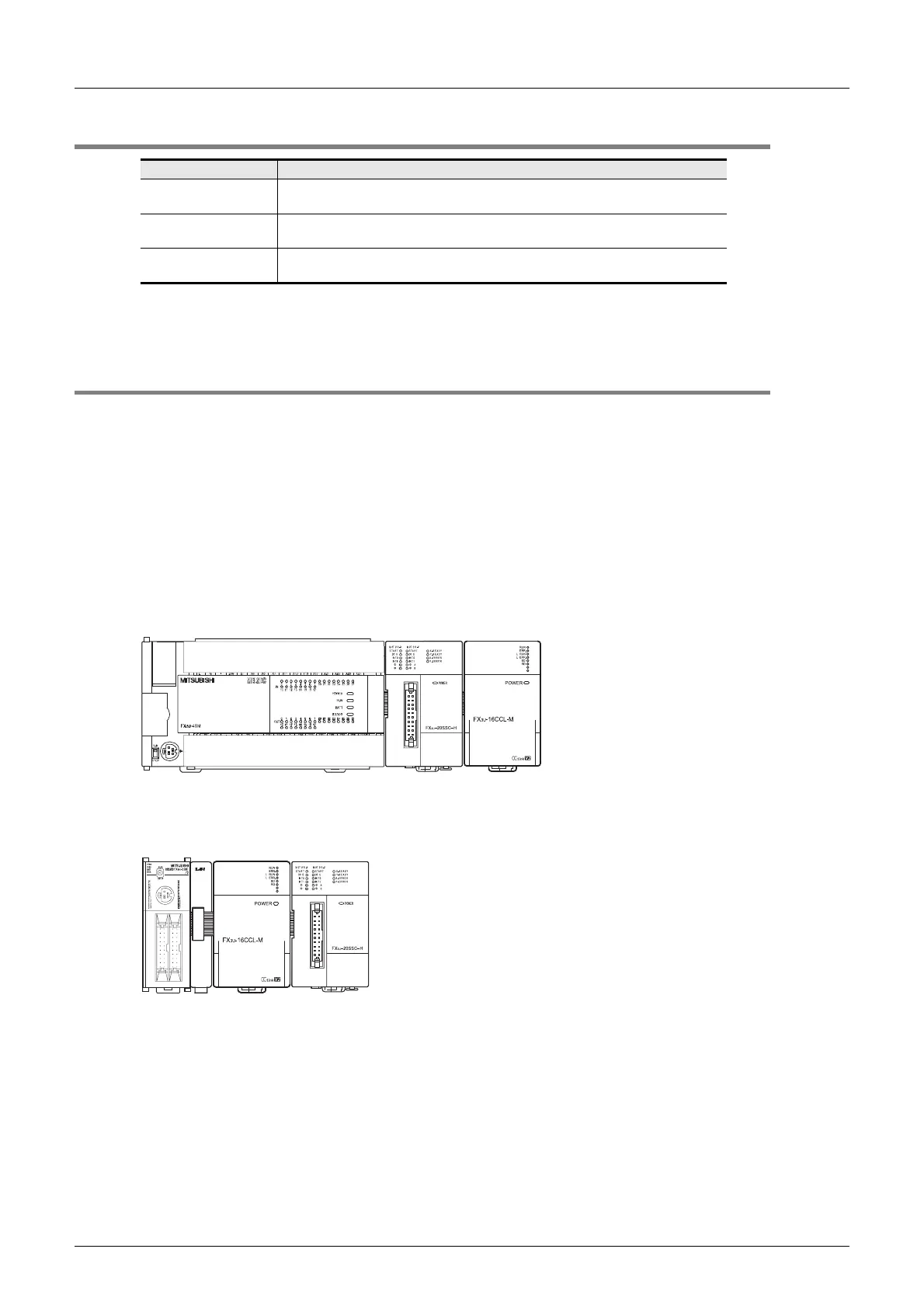

3.2 Applicable PLC
3.2 Applicable PLC
The version number can be checked by reading the last three digits of device D8001/D8101.
*1. An FX
2NC-CNV-IF or FX3UC-1PS-5V is necessary to connect the FX3U-16CCL-M with the FX3UC PLC.
3.3 Connection with PLC
The FX3U-16CCL-M connects with a PLC via an extension cable.
The FX
3U-16CCL-M is handled as a special extension block of the PLC. The unit number of the FX3U-16CCL-
M is automatically assigned No. 0 to No. 7 (Unit No. 1 to No. 7 is assigned when the main unit is an FX
3UC-
32MT-LT(-2).) starting from the special function unit/block closest to the PLC main unit.
(This unit number is used for the designation of a FROM/TO instruction.)
For details on the assignment of the I/O number and unit number of the PLC, refer to the following manual
corresponding to the connected PLC.
→ Refer to FX
3G Hardware Edition.
→ Refer to FX
3U Hardware Edition.
→ Refer to FX
3UC Hardware Edition.
• Only one FX
3U-16CCL-M unit can be connected to the FX3G/FX3U/FX3UC PLC.
•An FX
2NC-CNV-IF or FX3UC-1PS-5V is necessary to connect the FX3U-16CCL-M with the FX3UC PLC.
• The optional FX
0N-65EC (FX0N-30EC) and FX2N-CNV-BC are necessary to lengthen the extension cable.
• The number of I/O points occupied by the FX
3U-16CCL-M is eight. Make sure that the total number of I/O
points (occupied I/O points) of the main unit, extension unit(s), extension block(s) and the number of points
occupied by special function blocks does not exceed the maximum number of I/O points of the PLC.
For information on the maximum number of I/O points of the PLC, refer to the respective product manual.
→ Refer to FX
3G Hardware Edition.
→ Refer to FX
3U Hardware Edition.
→ Refer to FX
3UC Hardware Edition.
Model name Applicability
FX3G Series PLC
Ver. 1.00 and later
(Only one FX3U-16CCL-M unit can be connected to a main unit.)
FX3U Series PLC
Ver. 2.20 and later
(Only one FX3U-16CCL-M unit can be connected to a main unit.)
FX3UC Series PLC
*1
Ver. 2.20 and later
(Only one FX3U-16CCL-M unit can be connected to a main unit.)
FX3G/FX3U PLC
FX
3U-16CCL-M
FX
3UC PLC
FX
3U-16CCL-M
FX
2NC-CNV-IF
Other
extension
units/blocks
Other
extension
units/blocks
