13.1.8 Confirmation of operation by program
Using a sequence program, make sure that data link is normally proceeding.
1) The digital values converted by the AJ65BT-64AD (station No. 1) are stored in D200 (CH1 digital value)
and D201 (CH2 digital value).
2) When X000 in the master station PLC turns ON, RY00 in the FX
2N-32CCL (station No. 3) turns ON.
3) When RX00 in the FX
2N-32CCL (station No. 3) turns ON, Y000 (M132) in the master station PLC turns
ON.
Caution
A program for communication is required also in the FX
3U Series main unit connected to the FX2N-32CCL.

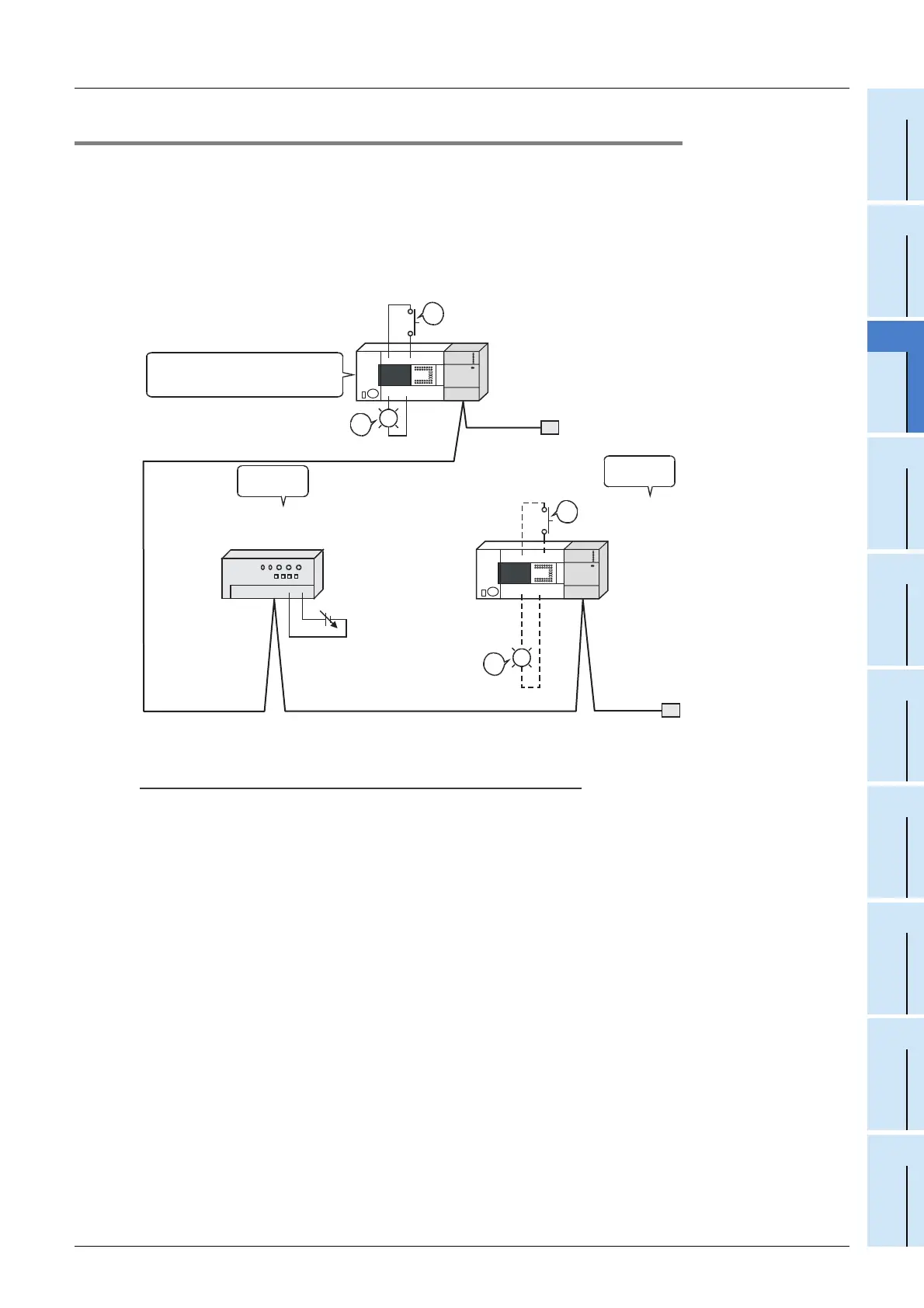

FX2N-32CCL
CC-Link interface block
Terminal
resistor
AJ65BT-64AD
A/D conversion unit
FX
3U Series
Main unit
Master station
FX
3U-16CCL-M
RY00
RX00
3)
ON
ON
2)
1)
A/D conversion by AJ65BT-64AD
D200: CH1 digital value
D201: CH2 digital value
1)
ON
3) Y000
X000
2)
ON
Ver. 1 compatible
Remote device station
(station No. 1)
FX
3U Series
Main unit
Ver. 1 compatible
Remote device station
(station No. 3)
Terminal
resistor
Occupies
3 stations.
Occupies
2 stations.
