13 Example of Communication between Master Station
13.3 When Remote Net Additional Mode is Used
164
FX3U-16CCL-M User's Manual
13.3 When Remote Net Additional Mode is Used

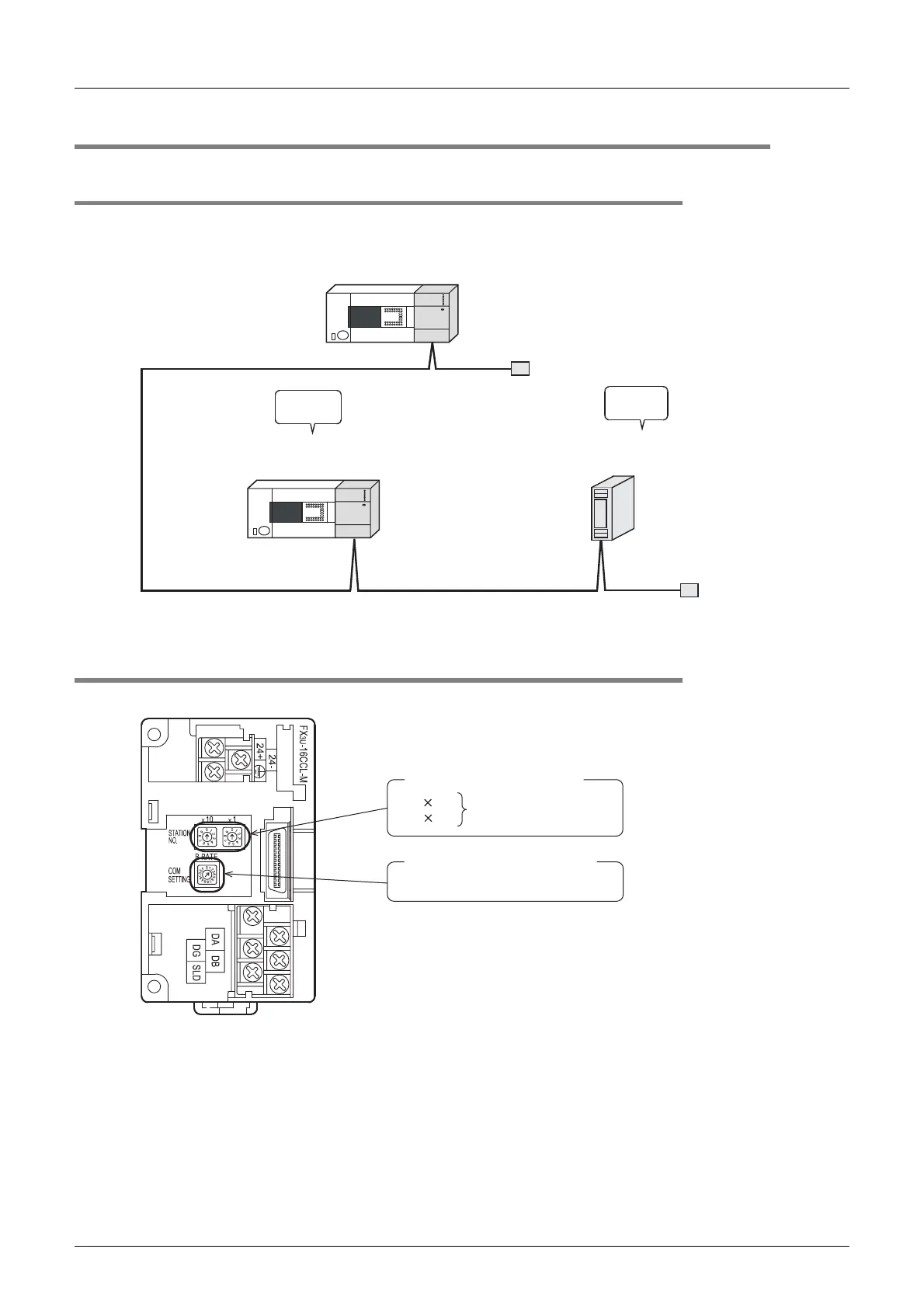

13.3.1 System configuration
It is supposed that one ver.1 compatible remote device station and one ver.2 compatible remote device
station are connected in the system.
13.3.2 Setting of master station
The figure below shows the setting of the switches in the master station.
FX3U Series
Main unit
Master station
FX
3U-16CCL-M
Terminal
resistor
FX
3U Series
Main unit
Ver. 1 compatible
Remote device station
(station No. 1)
FX
2N-32CCL
CC-Link interface block
Ver. 2 compatible
Remote device station
(station No. 4)
AJ65VBTCU-68DAVN
D/A conversion unit
Terminal
resistor
Occupies
1 station.
Occupies
3 stations.
Make sure to set the
master station to 00.
0 ( 10)
0 ( 1)
2 (2.5 Mbps)
Station number setting switch
Transmission rate setting switch
