Mitsubishi FX3U-16CCL-M User Manual

14 Example of Communication between Master Station
14.2 When Remote Net Ver. 2 Mode is Used
184
FX3U-16CCL-M User's Manual
14.2 When Remote Net Ver. 2 Mode is Used
14.2.1 System configuration
It is supposed that one ver.1 compatible intelligent device station (FX3U-64CCL) and one ver.2 compatible
intelligent device station (FX
3U-64CCL) are connected in the system.
14.2.2 Setting of master station

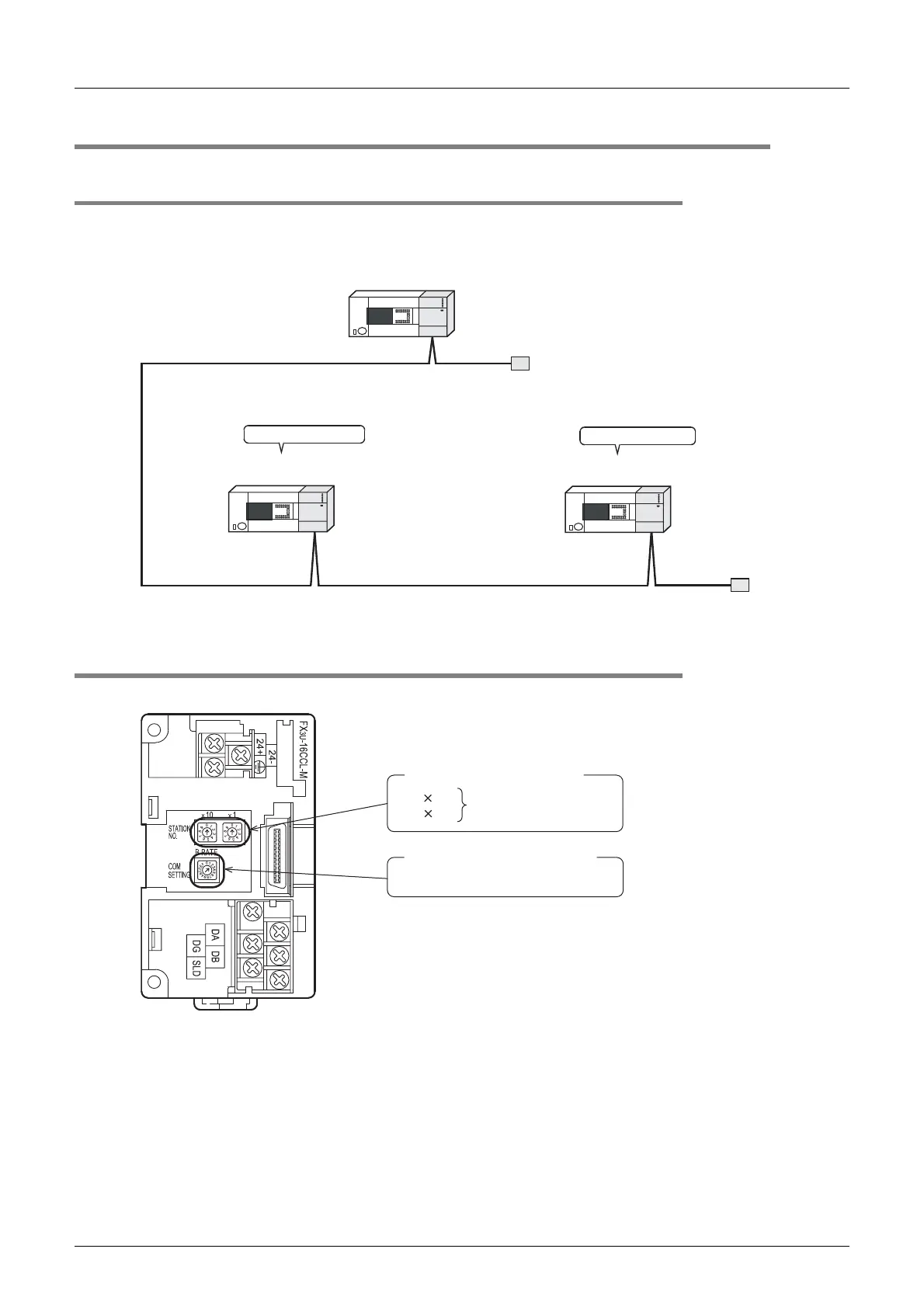

The figure below shows the setting of the switches in the master station.
Terminal
resistor
Ver. 2 compatible Intelligent device station
(station No. 4)
Occupies 1 station.
Ver. 1 compatible Intelligent device station
(station No. 1)
Occupies 3 stations.
FX3U Series
Main unit
Master station
FX
3U-16CCL-M
Terminal
resistor
FX3U-64CCL
CC-Link interface block
FX3U Series
Main unit
FX3U Series
Main unit
FX3U-64CCL
CC-Link interface block
Make sure to set the
master station to 00.
0 ( 10)
0 ( 1)
2 (2.5 Mbps)
Station number setting switch
Transmission rate setting switch
