8.4 Example of Program for Parameter Setting
8.4 Example of Program for Parameter Setting

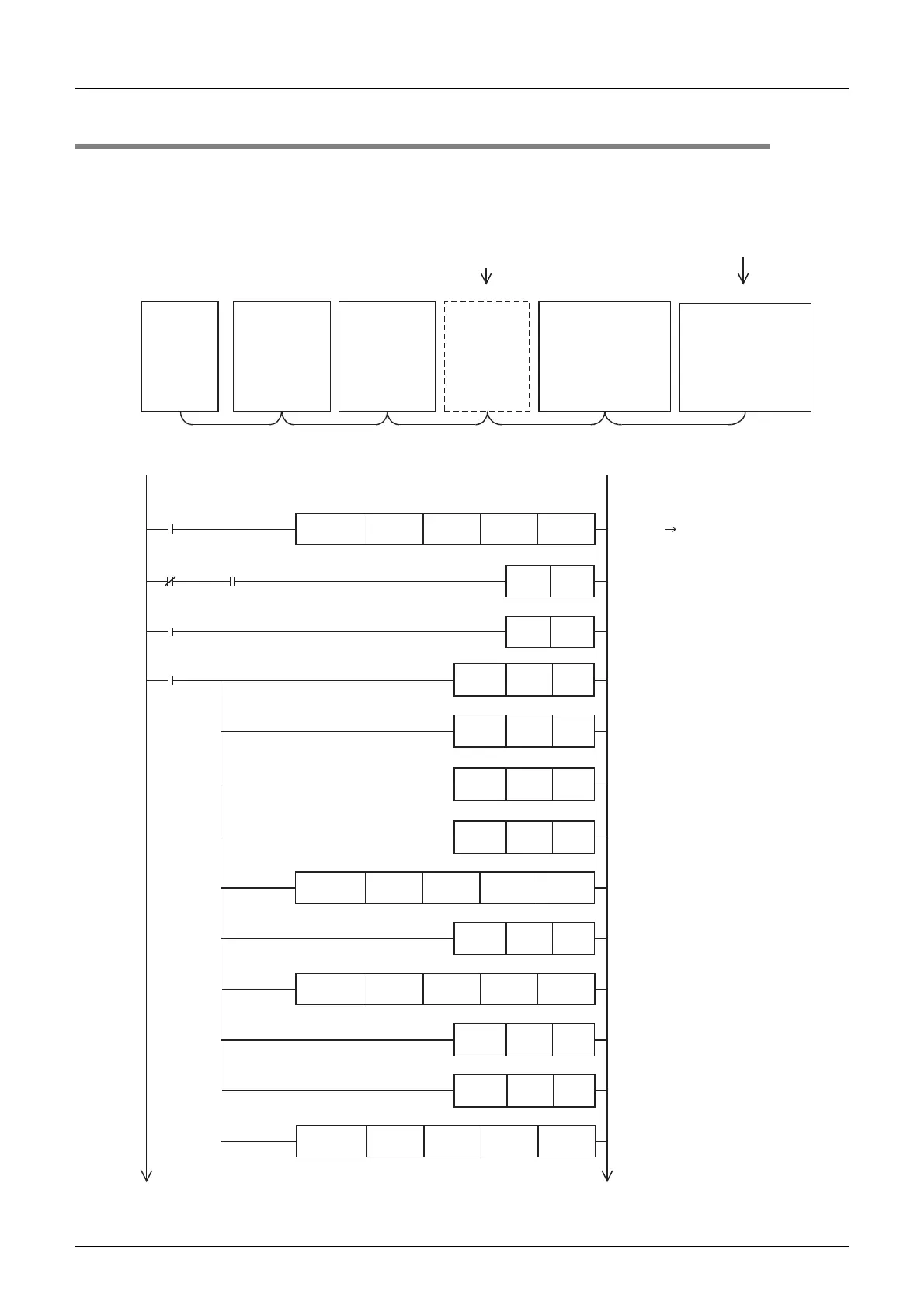

The diagram below shows an example of program for parameter setting in the system configuration shown
below.
System configuration
Example of program for parameter setting
Master
station
(Remote net
ver. 2 mode)
1)
Ver. 1
compatible
remote I/O
station
(occupies 1
station)
Station No. 1
2)
Ver. 1
compatible
remote I/O
station
(occupies 1
station)
Station No. 2
3)
Ver. 2
compatible
single remote
device station
(occupies 4
stations)
Station No. 3
4)
Ver. 2 compatible
single intelligent
device station
(occupies 2 stations)
Station No. 7
Reserved station
(to be connected in the future)
5)
Ver. 2 compatible
double intelligent
device station
(occupies 2 stations)
Station No. 9
Invalid station
M0PLS
M1SET
M8000
Unit error
M20
M35
RUN
monitor
Unit ready
M1
Number of automatic
return units
(2 units)
Number of retries
(3 times)
Mode
(Remote net ver. 2 mode)
BFM#10
M35 to M20
M0
Number of connected units
(5 units)
FNC 79
FROM
K0 K10 K4M20 K1
Operation specification
when CPU is down
(Stop)
FNC 12
MOV
D0
K2
FNC 12
MOV
D1
FNC 12
MOV
D2
FNC 12
MOV
D3
FNC 78
TO
K0 K0 D0 K4
FNC 12
MOV
D4
FNC 78
TO
K0 K6 D4 K1
Data link disorder station
setting
(Clear)
FNC 12
MOV
D5
Case of CPU STOP
setting
(Refresh)
FNC 12
MOV
D6
FNC 78
TO
K0 K12 D5 K2
K5
K3
K2
K0
K1
K0
