15 Example of Communication in Compound System
15.3 When Remote Net Additional Mode is Used
225
FX3U-16CCL-M User's Manual
11
Programming
12
Remote I/O Communication Example
13
Remote Device Communication Example
14
Int. Device Communication Example
15
Compound Sys. Communication Example
16
Troubleshooting
A
Version Information
B
Setting Sheet
C
Differences with FX
2N
-16CCL-M

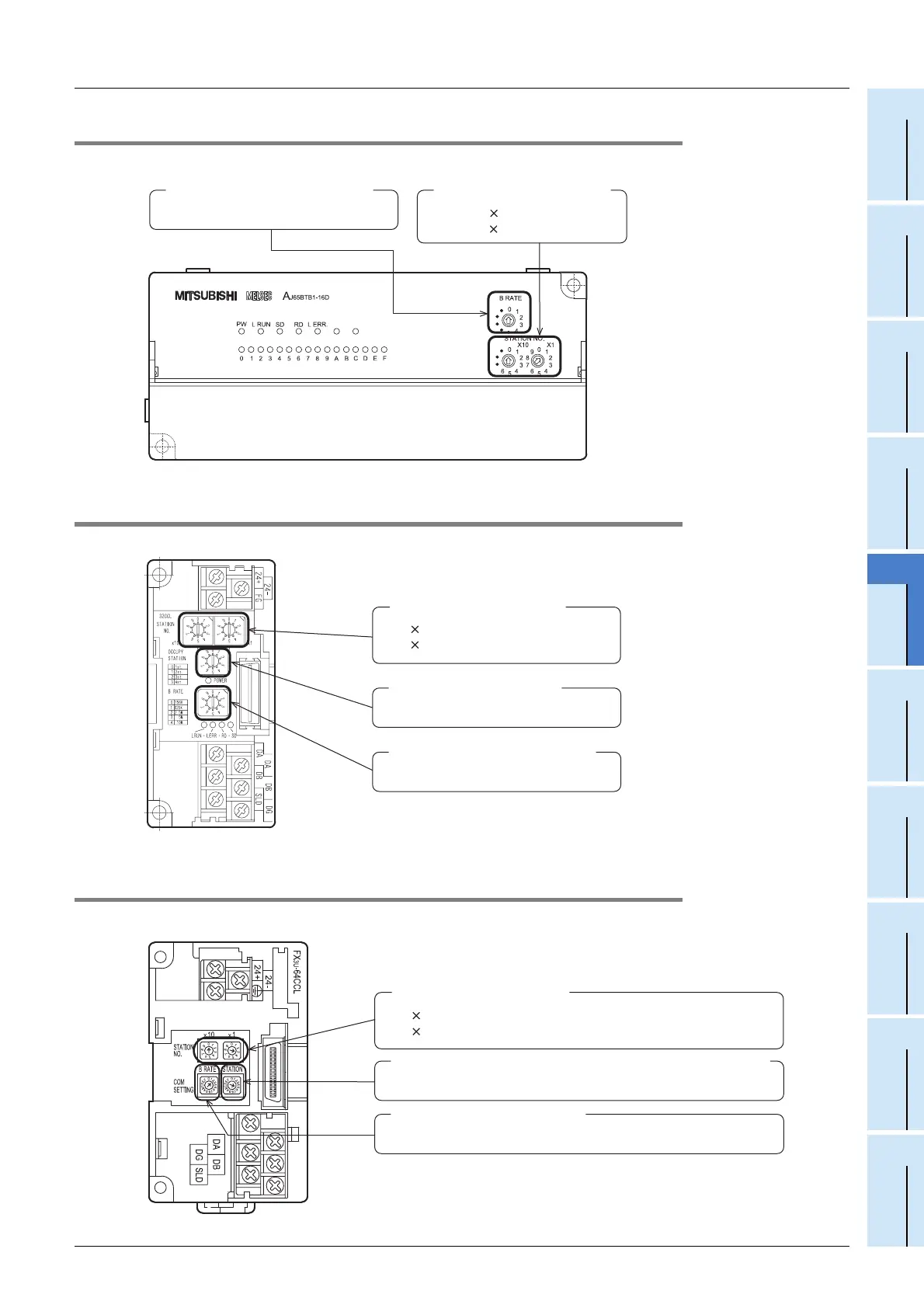

15.3.3 Setting of remote I/O station
The figure below shows the setting of the switches in the remote I/O station.
15.3.4 Setting of remote device station
The figure below shows the setting of the switches in the remote device station.
15.3.5 Setting of intelligent device station
The figure below shows the setting of the switches in the intelligent device station.
2 (2.5 Mbps)
0 ( 10)
1 ( 1)
Transmission speed setting switch
Station number setting switch
0 ( 10)
2 ( 1)
0 (1 st.)
2 (2.5 Mbps)
Station number setting switch
Number of occupied stations
Transmission speed setting switch
0 ( 10)
3 ( 1)
2 (2.5 Mbps)
Station number setting switch
Number of occupied stations and expanded cyclic setting switch
5 (Occupies 2 stations, double)
Transmission rate setting switch
