15 Example of Communication in Compound System
15.3 When Remote Net Additional Mode is Used
224
FX3U-16CCL-M User's Manual
15.3 When Remote Net Additional Mode is Used

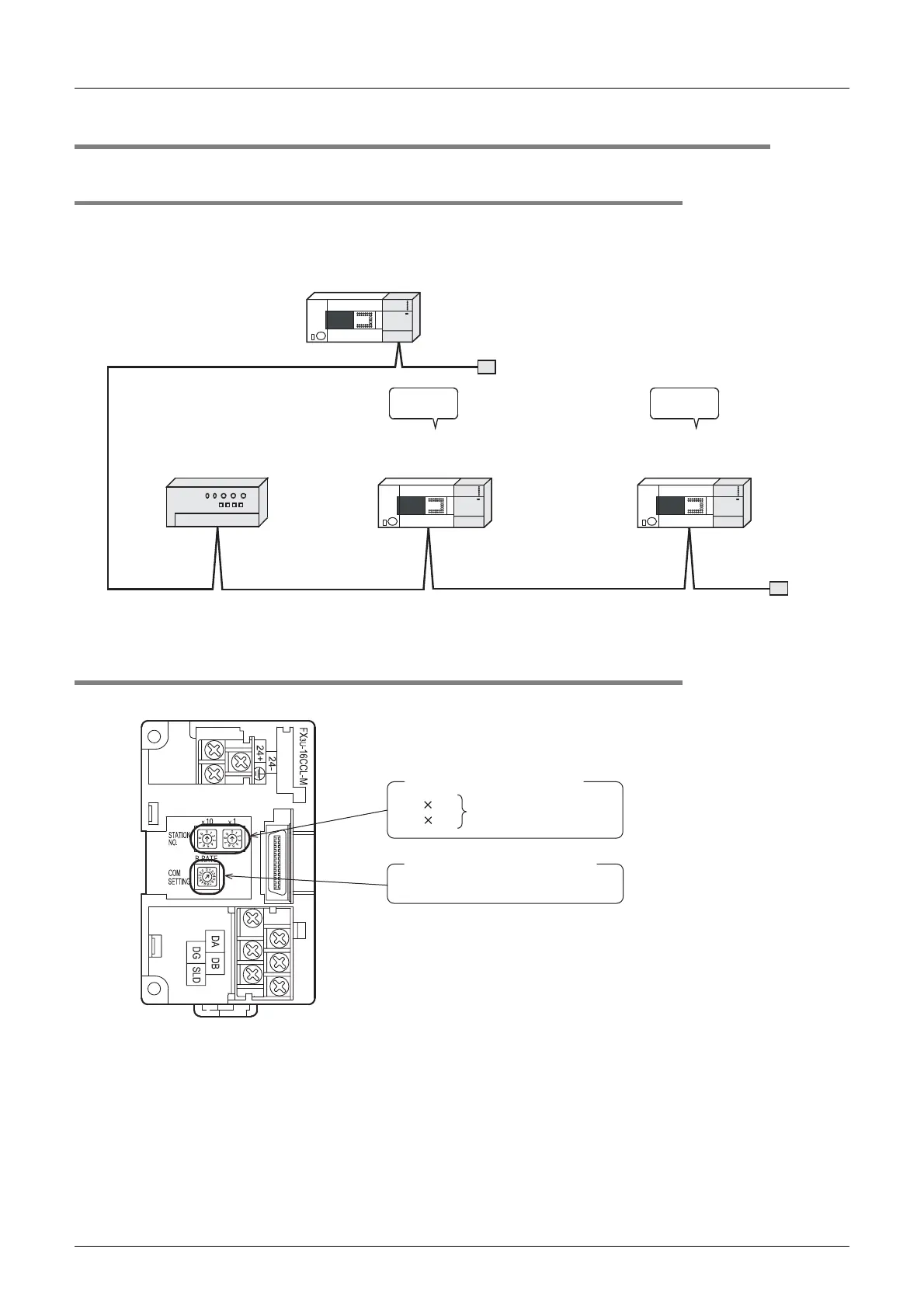

15.3.1 System configuration
It is supposed that one remote I/O station, one remote device station (FX2N-32CCL) and one intelligent
device station (FX
3U-64CCL) are connected in the system.
15.3.2 Setting of master station
The figure below shows the setting of the switches in the master station.
FX3U Series
Main unit
Master station
FX
3U-16CCL-M
Terminal
resistor
Terminal
resistor
Ver. 1 compatible
Remote I/O station
(station No. 1)
Ver. 1 compatible
Remote device station
(station No. 2)
Ver. 2 compatible
Intelligent device station
(station No. 3)
FX
3U Series
Main unit
FX3U Series
Main unit
FX
2N-32CCL
CC-Link interface block
FX3U-64CCL
CC-Link interface block
AJ65BTB1-16D
Input unit
Occupies
2 stations.
Occupies
1 station.
Make sure to set the
master station to 00.
0 ( 10)
0 ( 1)
2 (2.5 Mbps)
Station number setting switch
Transmission rate setting switch
