Mitsubishi FX3U-16CCL-M User Manual

15 Example of Communication in Compound System
15.2 When Remote Net Ver. 2 Mode is Used
214
FX3U-16CCL-M User's Manual
15.2 When Remote Net Ver. 2 Mode is Used

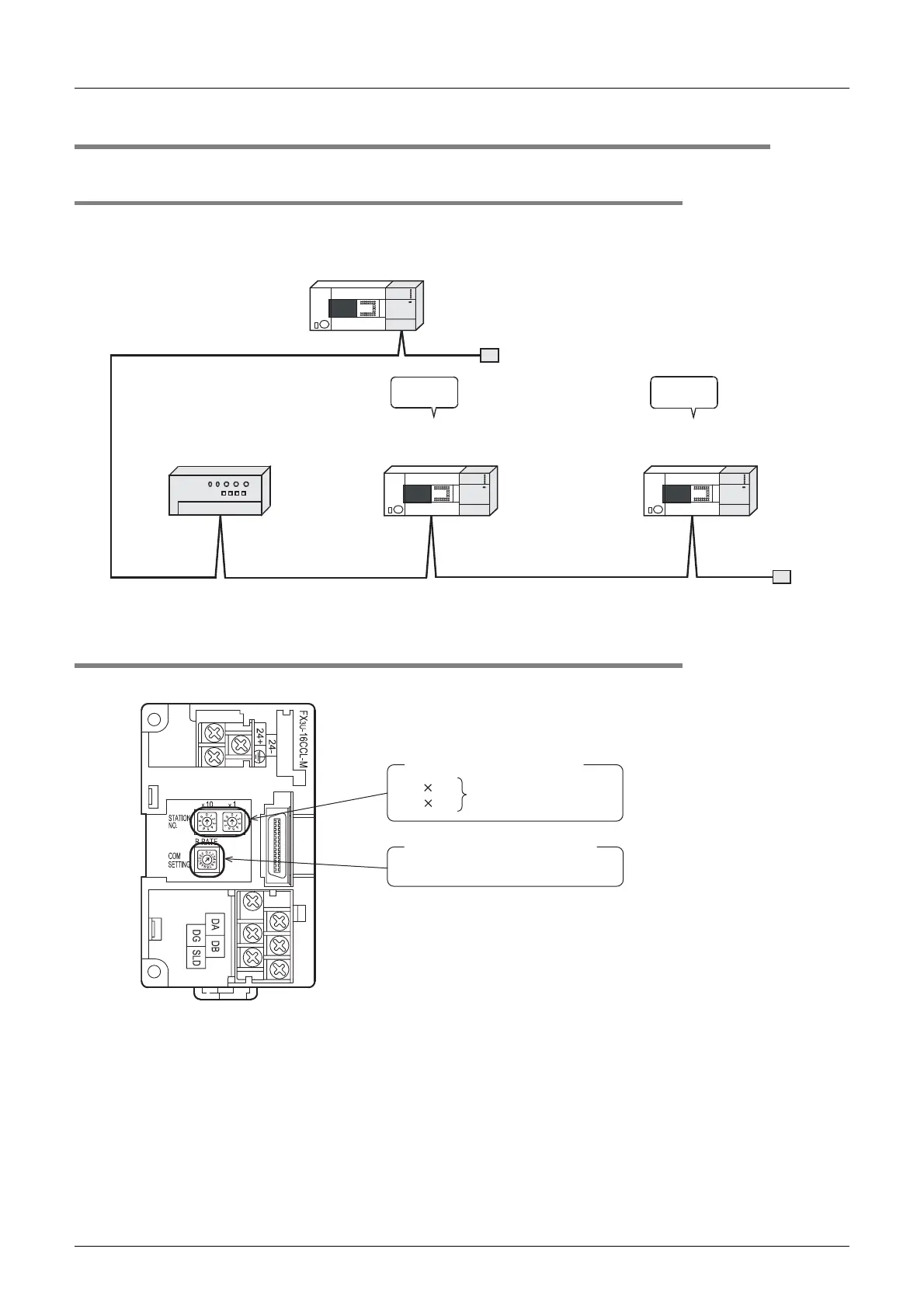

15.2.1 System configuration
It is supposed that one remote I/O station, one remote device station (FX2N-32CCL) and one intelligent
device station (FX
3U-64CCL) are connected in the system.
15.2.2 Setting of master station
The figure below shows the setting of the switches in the master station.
FX 3U Series
Main unit
Master station
FX
3U -16CCL-M
Terminal
resistor
Ver. 1 compatible
Remote I/O station
(station No. 1)
AJ65BTB1-16D
Input unit
FX
3U Series
Main unit
Ver. 1 compatible
Remote device station
(station No. 2)
Ver. 2 compatible
Intelligent device station
(station No. 3)
FX
2N -32CCL
CC-Link interface block
FX
3U Series
Main unit
FX
3U -64CCL
CC-Link interface block
Terminal
resistor
Occupies
2 stations.
Occupies
1 station.
Make sure to set the
master station to 00.
0 ( 10)
0 ( 1)
2 (2.5 Mbps)
Station number setting switch
Transmission rate setting switch
