Mitsubishi FX3U-16CCL-M User Manual

5 Wiring
5.2 CC-Link Wiring
38
FX3U-16CCL-M User's Manual
5.2.2 T-shaped Branch Connection Using CC-Link Dedicated Cables
This subsection describes the T-shaped branch connection using CC-Link dedicated cables.

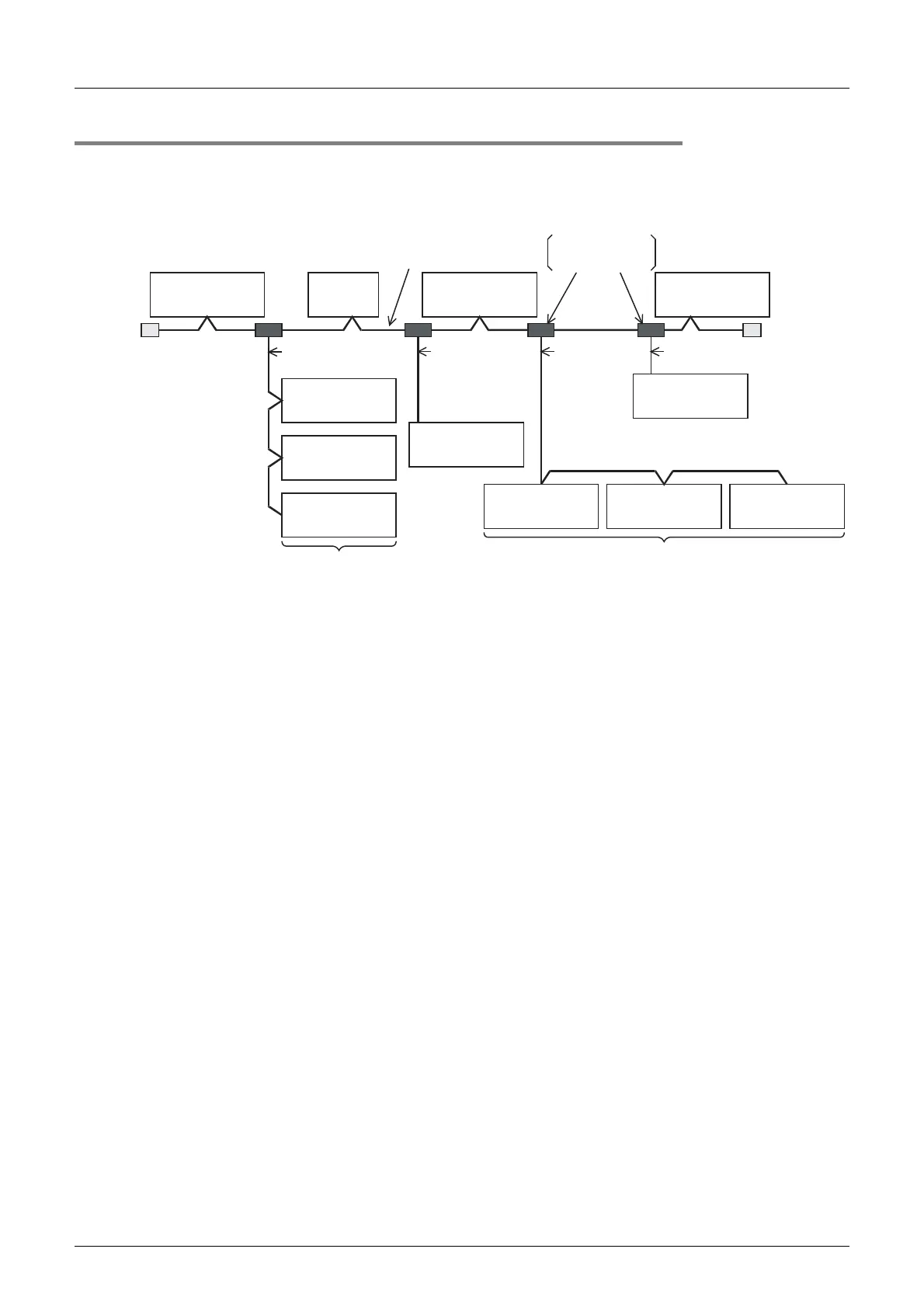

1. System configuration with T-shaped branch connection
The figure below shows the system configuration with T-shaped branch connection.
Master
station
Terminal
resistor
Terminal
resistor
(Branch line)
(Branch line) (Branch line) (Branch line)
Up to 6 units can be
connected.
Up to 6 units can be
connected.
(Main line)
*The number of branch lines is determined by each branch line length and the total branch line length.
Remote I/O station
or remote device
station
Remote I/O station
or remote device
station
Remote I/O station
or remote device
station
Remote I/O station
or remote device
station
Remote I/O station
or remote device
station
Remote I/O station
or remote device
station
Remote I/O station
or remote device
station
Remote I/O station
or remote device
station
Intelligent device
station
Intelligent device
station
Intelligent device
station
T-shaped branch
terminal block or
connector
