9 Data Link Procedure
9.3 Switch setting
90
FX3U-16CCL-M User's Manual
3) Duplicate station numbers are not allowed.
If there are duplicate numbers, a loading status error occurs.
The error code is stored in SW0069 (BFM#1641).

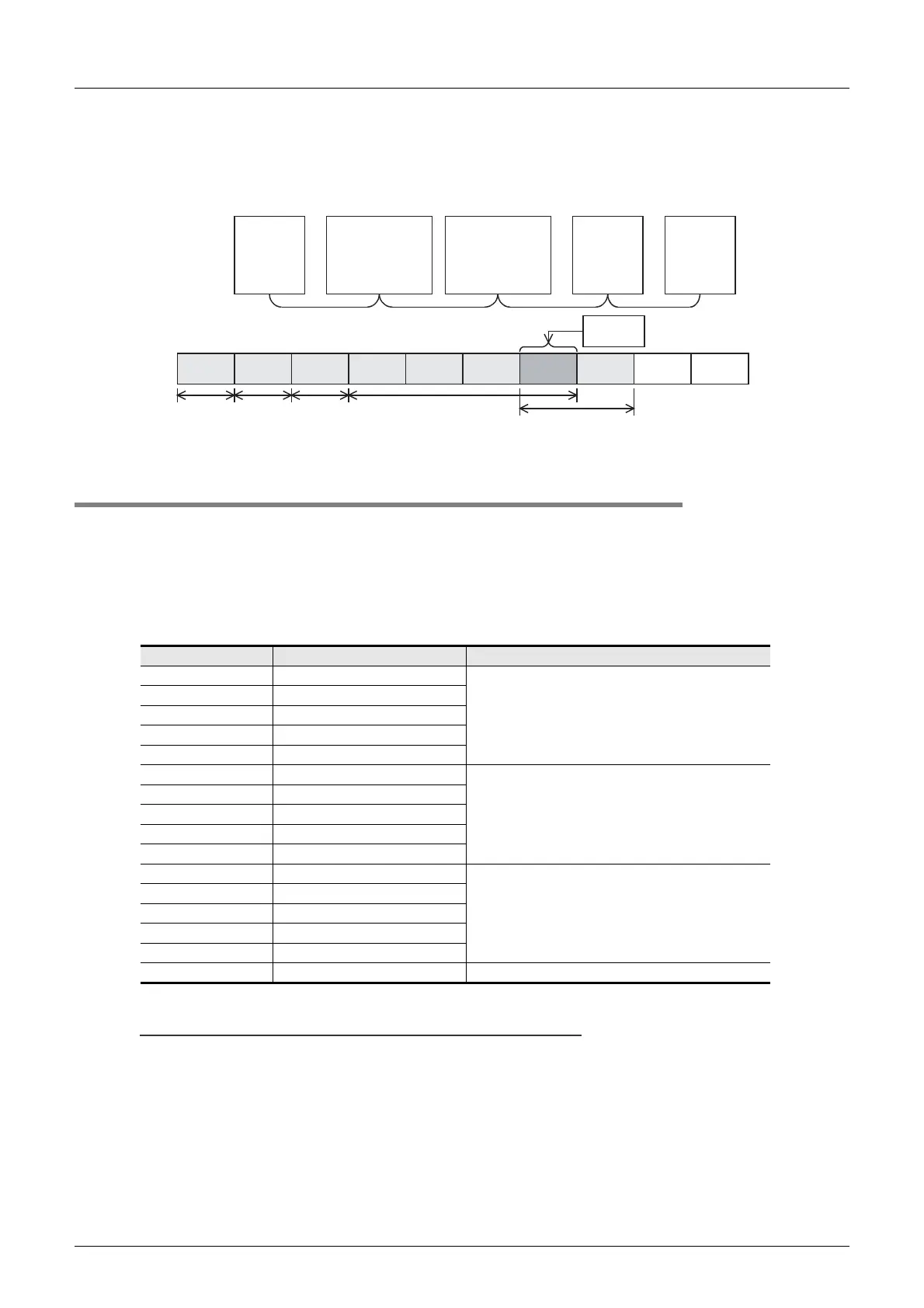

- When one station number is duplicated
9.3.2 Transmission rate setting, line test, hardware test, transmission speed test
Set the transmission rate setting, line test, hardware test and transmission speed test using the transmission
rate setting switch (Setting range: 0 to E).
For details on the transmission rate setting, line test, hardware test, transmission speed test, refer to the
following.
→ For details on the line test, refer to Section 9.4.
→ For details on the hardware test, refer to Section 9.2.
→ For details on the transmission speed test, refer to Section 9.5.
Caution
• Set the same transmission speed to the master station and remote stations/intelligent device stations. If
the setting is different in even one station, normal data link is not possible.
• The maximum transmission and distance cable length between stations that can be set varies depending
on the transmission speed.
For details, refer to Section 2.5.
Setting Transmission rate setting Mode
0 Transmission rate 156 Kbps
•Online
• Transmission speed test
1 Transmission rate 625 Kbps
2 Transmission rate 2.5 Mbps
3 Transmission rate 5 Mbps
4 Transmission rate 10 Mbps
5 Transmission rate 156 Kbps
Line test
• When the station number setting switch is 0:
Line test 1
• When the station number setting switch is 1 to 16:
Line test 2
6 Transmission rate 625 Kbps
7 Transmission rate 2.5 Mbps
8 Transmission rate 5 Mbps
9 Transmission rate 10 Mbps
A Transmission rate 156 Kbps
Hardware test
B Transmission rate 625 Kbps
C Transmission rate 2.5 Mbps
D Transmission rate 5 Mbps
E Transmission rate 10 Mbps
F Unusable Unusable
Master
station
1)Remote I/O
station
(occupies 1
station)
Station No. 1 Station No. 2
3)Remote
device
station
(occupies 4
stations)
Station No. 3
Station No. 0
2)Remote I/O
station
(occupies 1
station)
4)Remote
device
station
(occupies 2
stations)
Station No. 6
Station
No. 1
Station
No. 2
Station
No. 3
Station
No. 4
Station
No. 5
Station
No. 6
Station
No. 7
Station
No. 8
Station
No. 9
Station
No. 0
Master
station
(fixed)
1)
Remote
I/O
station
2)
Remote
I/O
station
3)
Remote device station
4)
Remote device station
Duplicate
station No.
