8.
8 - 12
DEBUGGING FUNCTION
8.2.2 Monitor test of local device (function version B or later)
With the "parameter device setting," the device set in the local device can be monitored
and tested in the peripheral device.
This function allows debugging while checking details of the local device by peripheral
devices.

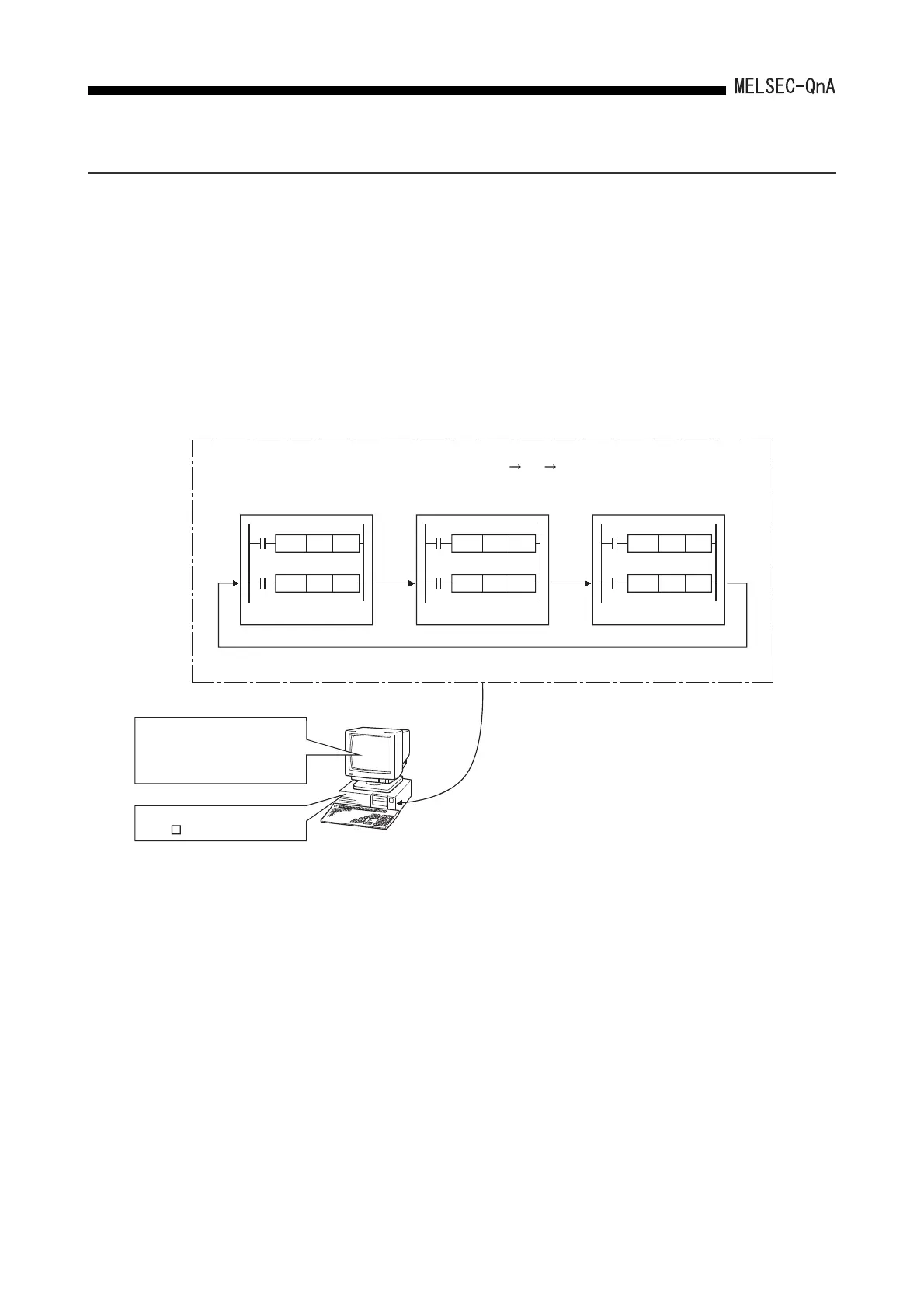

To monitor the local device, set the peripheral device to "local device monitor". The
following fig. is an example that monitoring the local device of program B with the CPU
module, which is executing programs A, B and C.
(1) Peripheral device
To perform monitor test of the local devices, the following GPP function software
packages are required:
• Personal computer
GX Developer, SW2IVD-GPPQ type GPP function software package
X0
MOVP K2 D0
X1
MOVP K3 D9
X10
MOVP K4 D0
X11
MOVP K8 D9
X20
MOVP K3 D0
X21
MOVP K6 D9
[EX]
Execution of program ("A" "B" "C")
Program: A
Program: B
Program: C
The local device data of program "B" is
displayed.
When D0 to D10 are local devices,
D0=4 for X10 ON and D9=8 for X11
ON are displayed.
Device is set to the local
device monitor and
program "B" is monitored.
GX Developer or
SW2 -GPPQ is installed.
CPU module
