19 - 14

19. LOADING AND INSTALLATION

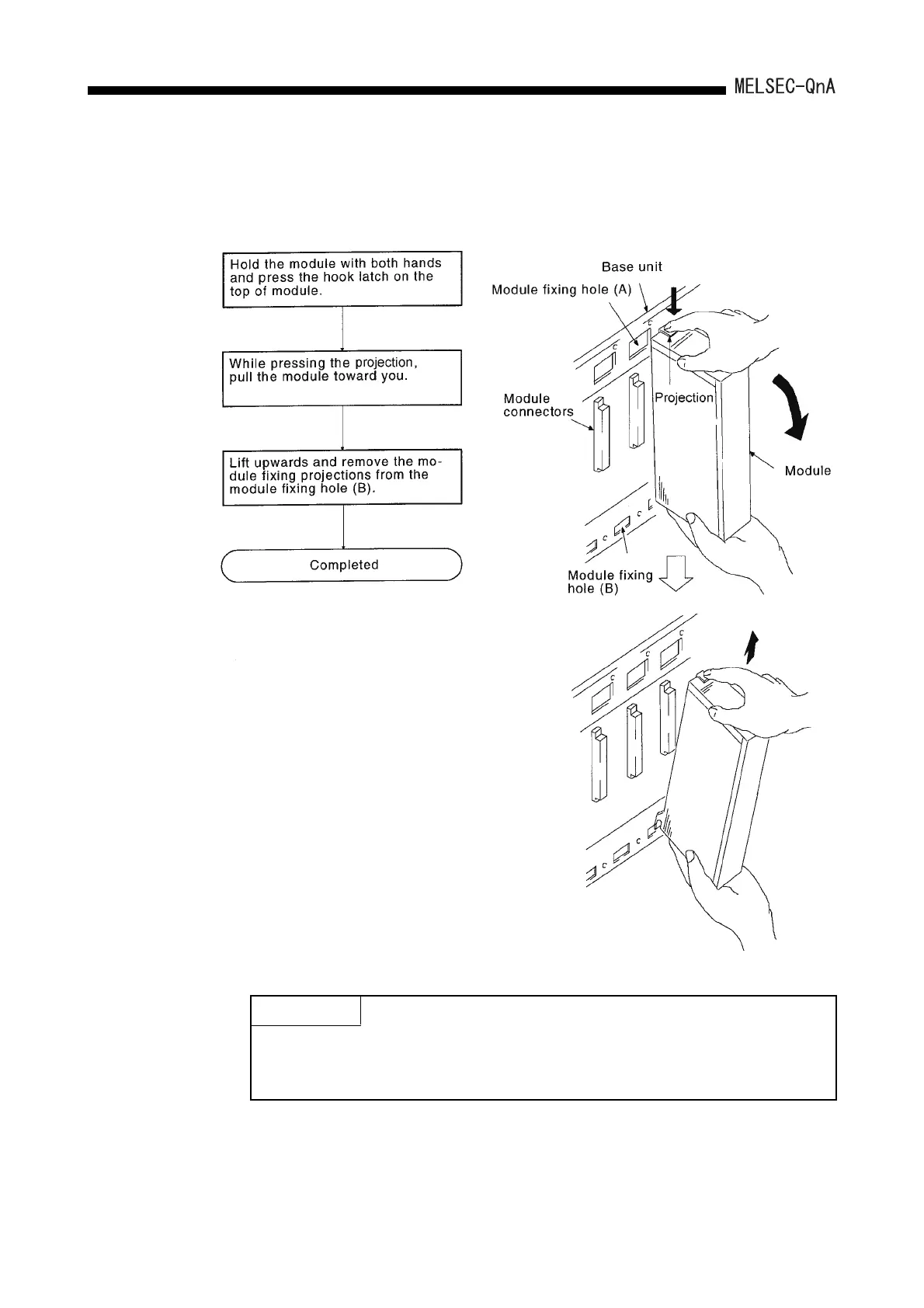

(2) Removing a module

The procedure for removing a module is explained here.

POINT

Always disengage the hook from the module fixing hole (A) and then remove the

module fixing projection from the module fixing hole (B). An attempt to remove the

module forcibly may damage the hook or module fixing projection.
