Controlling Operation and Outputting Data with the Sensor's Standard Parallel Connection
FQ2 User’s Manual
249
8
Controlling Operation and Outputting Data
with a Parallel Connection

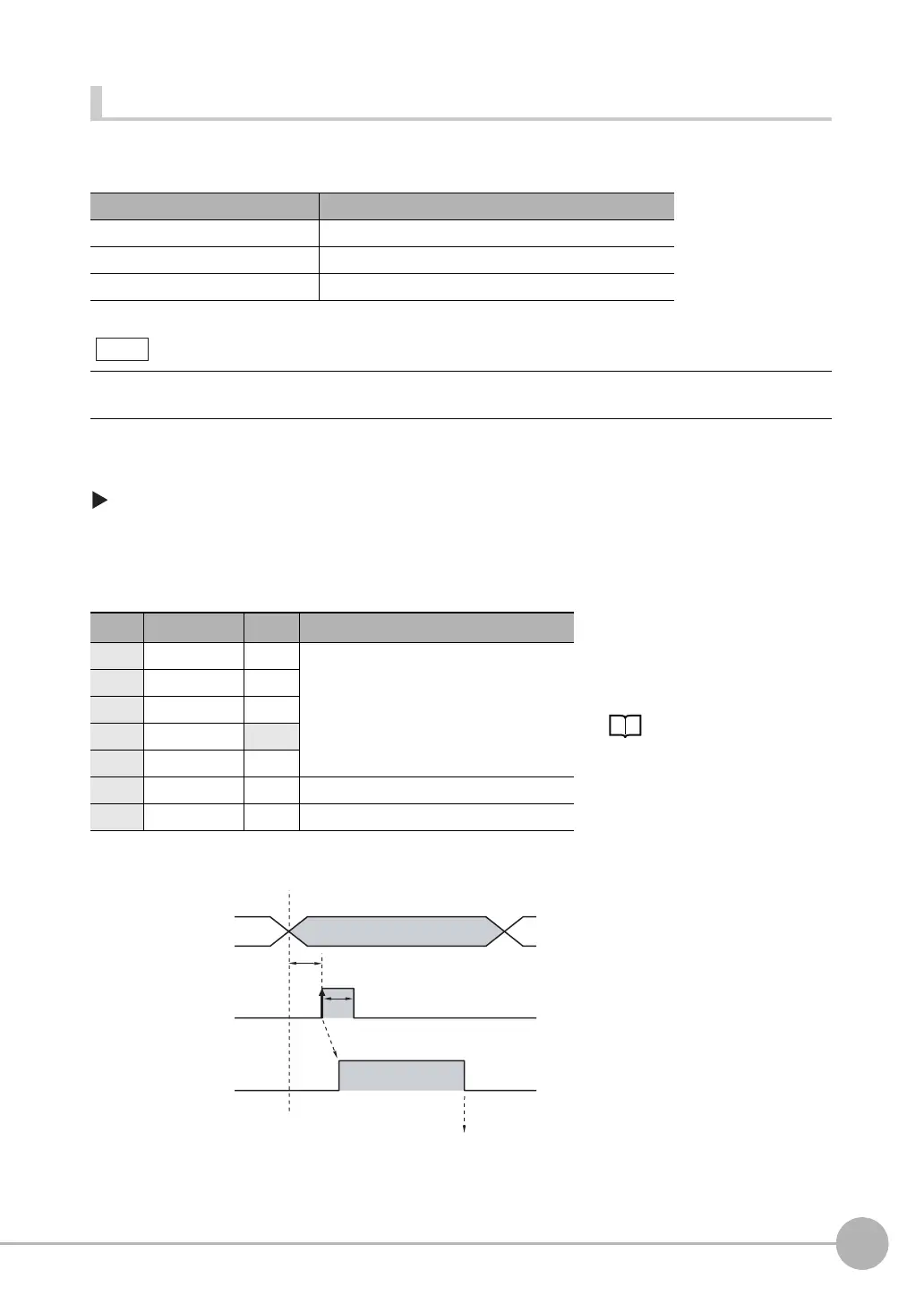

Registering the Measurement Reference Again
The model and reference color can be re-registered with commands from an external device, such as a PLC,
based on the image that was just input when the line process was changed.
Settings
[In/Out] − [I/O setting] − [I/O setting] − [Input] − [Input mode]
Press [Expand mode].
Wiring
Timing Chart
Inspection item Re-registered data
Search, Shape Search II Model data
Color Data Reference color (hue, saturation, and brightness)
Edge Position, Edge Width, Area None
• Application is possibly only from the Run Mode
• If the parameter is applicable to more than one inspection item, it will be re-registered for all inspection items.
Color Signal State Description
The signals shown at the left are
used.
Refer to the following information for
signal wiring.
2-4 Wiring: p. 42
Gray IN0 OFF Command parameter for registering the model
again
Green IN1 OFF
Red IN2 OFF
White IN3 ON
Purple IN4 OFF
Yellow IN5 ON Command input for registering the model again
Orange OUT1 (BUSY) -- Processing in progress (default)
1 Turn OFF IN 0 to IN4 and turn ON
IN3.
2 Turn ON the IN5 signal while the
BUSY signal is OFF to register the
model data and reference color again
from the image that was just input.
3 The BUSY signal turns ON while the
parameters are being re-registered.
Note
OFF
ON
OFF
ON
End re-registering
Start re-registering
BUSY signal
IN5 signal
ON for 1 ms min.
Allow 5 ms min. and then turn
ON IN5.
IN0 to IN4 signals
To Next Page
