How to Replace a Disk Shelf SIM Board
6.

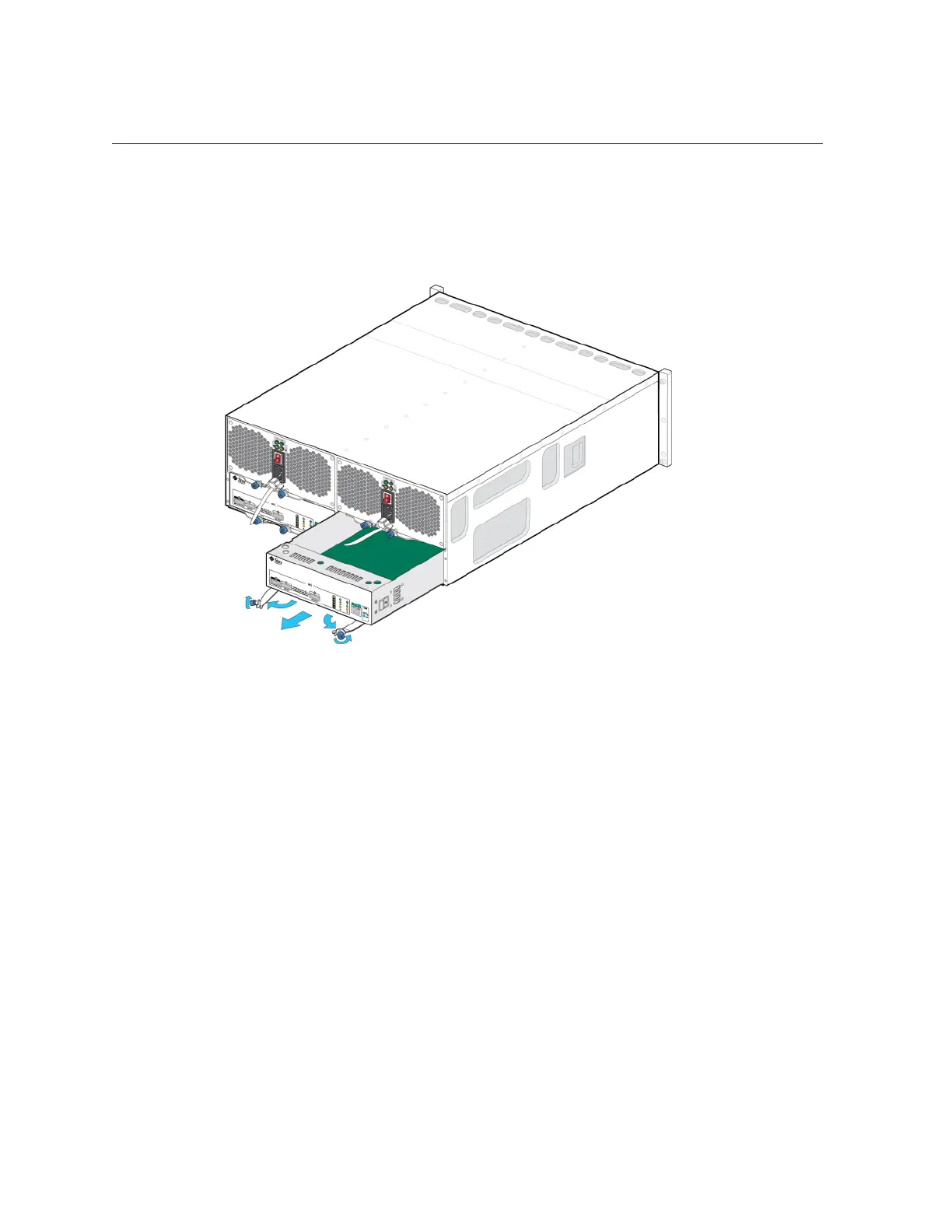

Pull each ejector tab outward and push to the sides to release and partially eject
the SIM from the chassis.
7.
Grasp the middle of the SIM board and slide it out of the slot.
Servicing the Hardware 261
