4–Installation in a L
inux Environme
nt
Management T
ool Installation
4-30
FE0254
601-00 A
The Pre-Installation Summary dialog b
ox (
Figure
4-25
) opens.

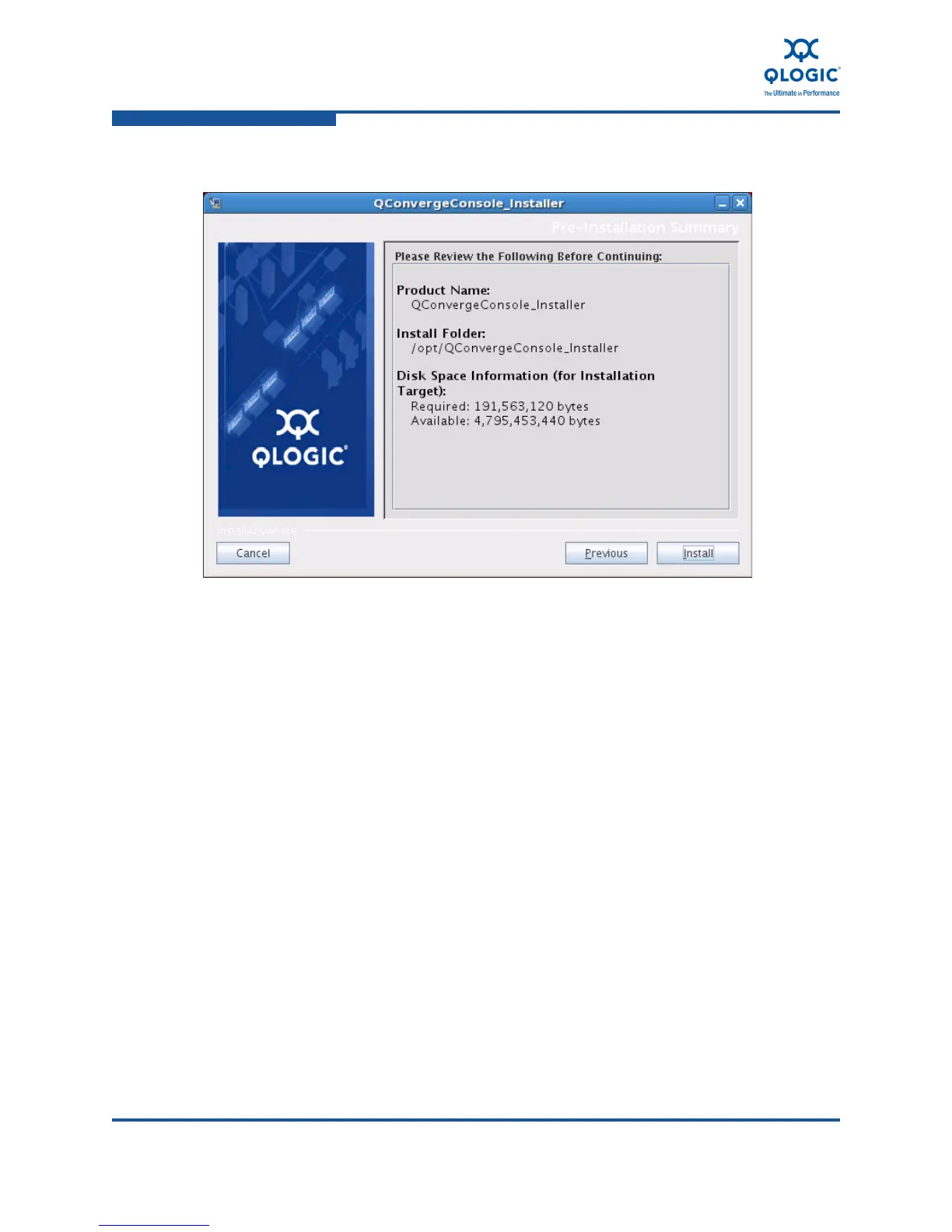

Figure 4-25. Install the QConvergeC
onsole: Pre-Installation Summary
6.
Read
the information, and then click
Inst
all
.
