Qlogic 8100 Series User Manual

3–Installation in a Windows Environment
Verifying Driver Installation
3-32 FE0254601-00 A

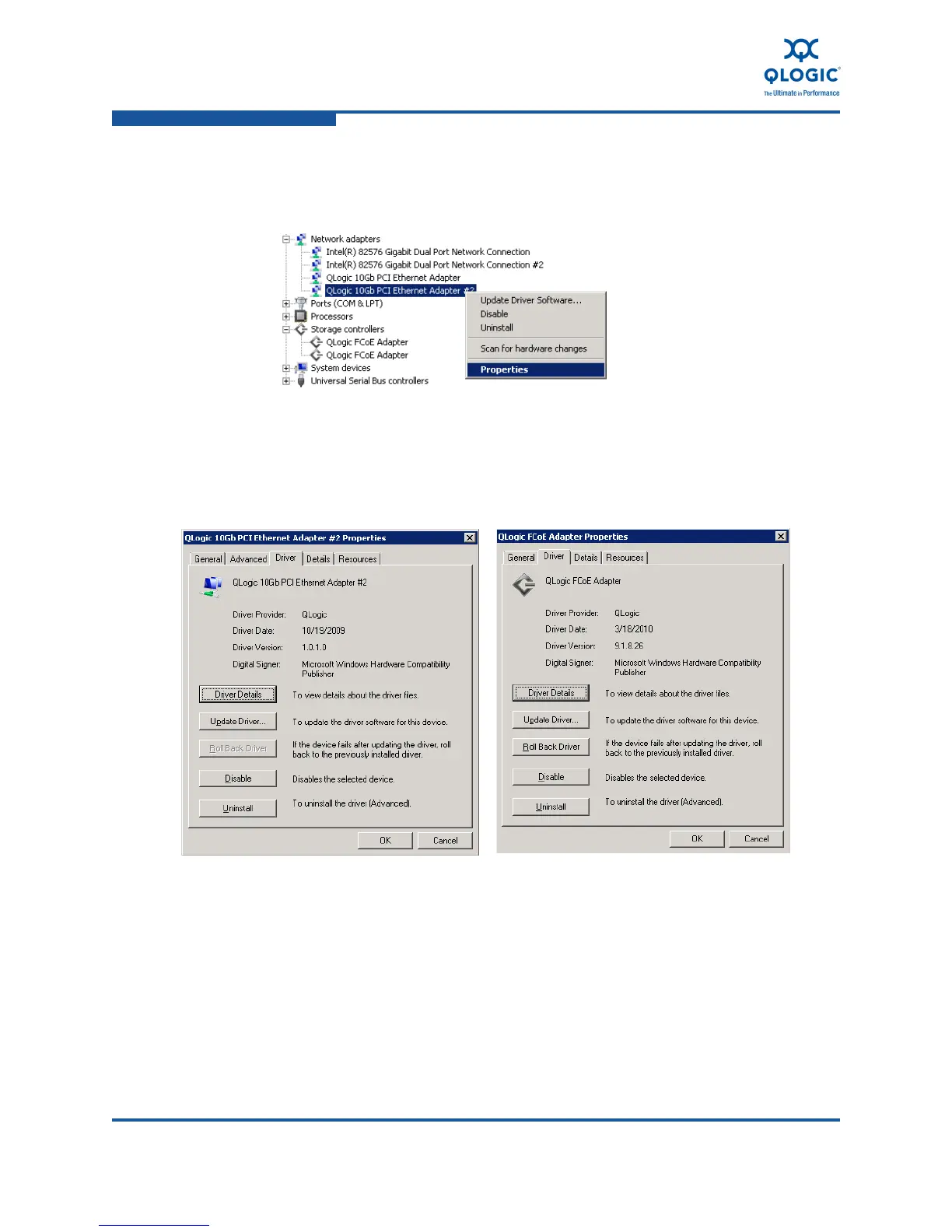

c. In Device Manager, under Network Adapters (for NIC Drivers) and
Storage Controllers (for FCoE Drivers), right click on a
QLogic-labeled entry, and then click Properties (Figure 3-43).
Figure 3-43. Network Adapters and Storage Controllers
d. In the Properties dialog box, click the Driver tab and find the field
Driver Version field. Figure 3-44 shows an example of a NIC adapter
driver (version 1.0.1.0) and an FCoE adapter driver (version 9.1.8.26).
Figure 3-44. NIC and FCoE Adapter Driver Properties
3. Understand the LED scheme for QLogic 8100 Series Adapters. For
information about QLogic 8100 Series Adapter LEDs, see Appendix A.

Qlogic 8100 Series Specifications

General

Brand	Qlogic
Model	8100 Series
Category	Network Card
Language	English
