Documenting Results
R&S
®
RTC1000
106
User Manual 1335.7352.02 ─ 02
●
"SCREENSHOTS": Stores screenshots
●
"SCREEN & SETUP": Stores screenshots and settings
●
"PRINT": Prints directly to a connected printer

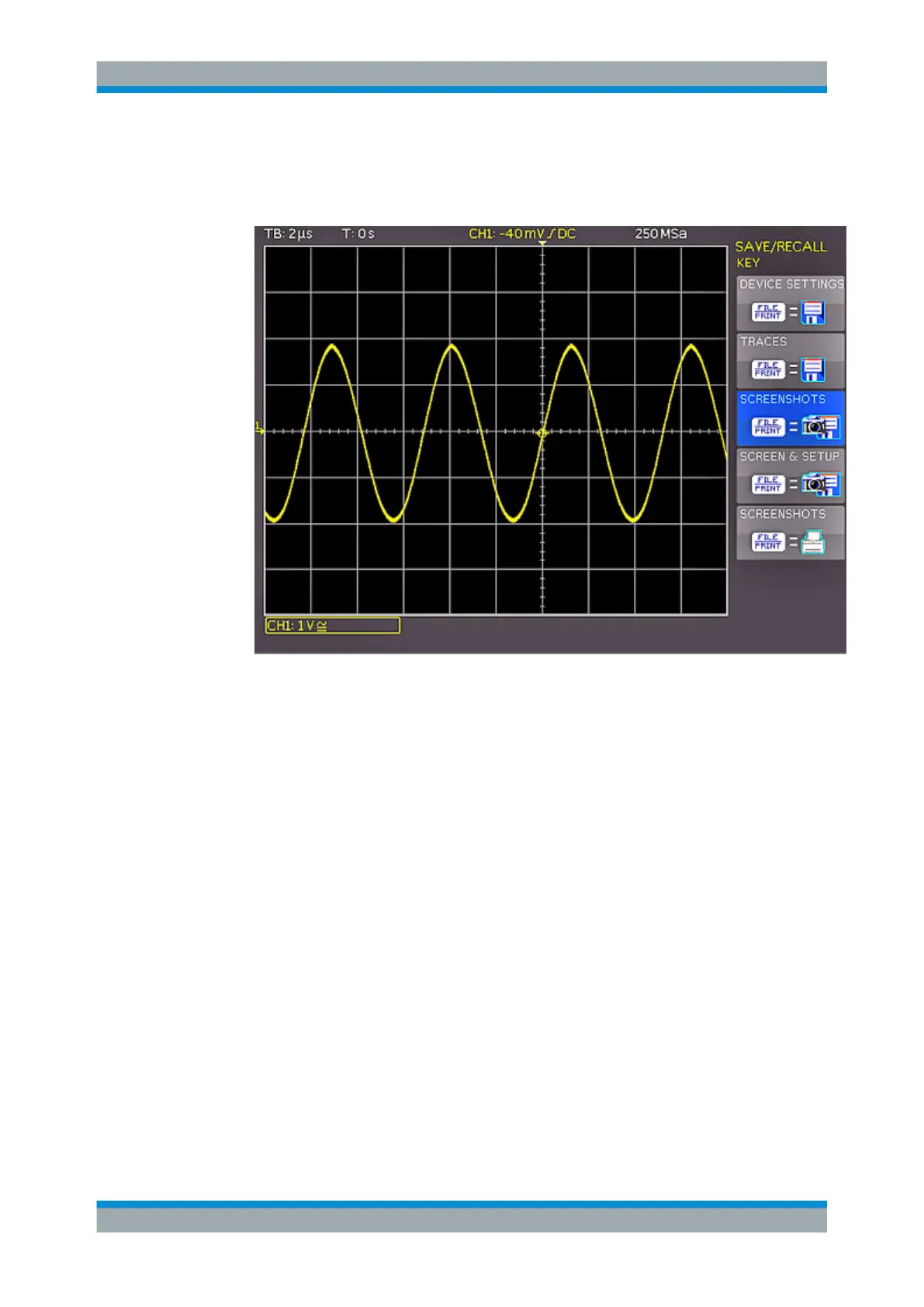

Figure 8-6: Definition of FILE/PRINT key
4.
Configure the settings for the selected action as described in the previous sections.
If you press the FILE/PRINT key, the selected function is performed.
