Operating Basics
R&S
®
RTC1000
22User Manual 1335.7352.02 ─ 02

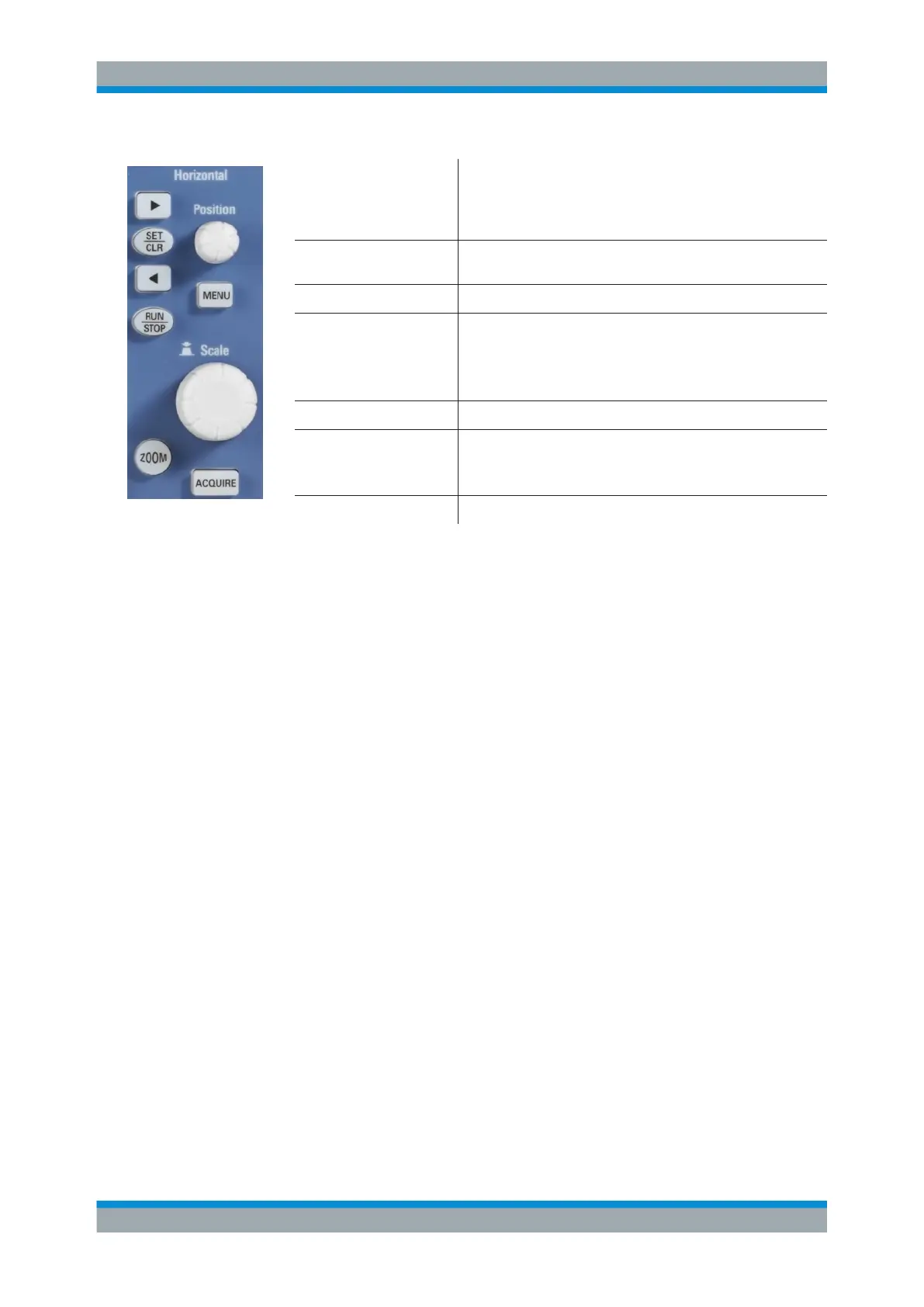

LEFT ARROW , RIGHT
ARROW / SET/CLR
Set and deletes markers, and navigate markers.
If no markers are set, the arrow keys move the trigger position by
5 division to the left or right. SET/CLR resets the value to the
time reference point.
RUN/STOP Starts and stops continuous data acquisition. The key lights up in
red if acquisition is stopped.
ZOOM Activates and deactivates the zoom display.
POSITION knob Sets the trigger position (horizontal position). The maximum
value depends on the time base.
If a zoom window is active, the knob sets the zoom position.
If markers are set, the knob sets the marker position.
MENU Opens a menu to set the trigger position.
TIME BASE knob Sets the horizontal scale (time base) for all waveforms. The
scale value is shown above the grid on the left.
If a zoom window is active, the knob sets the zoom size.
ACQUIRE Opens a menu to select the acquisition mode and record mode.
3.2 Display
The R&S RTC1000 is equipped with a TFT color monitor with LED backlight and VGA
resolution (640x480 pixels). If the soft menu is closed, the display has 12 scale divi-
sions on the time axis. If the menu is shown, 10 divisions are shown. In vertical direc-
tion, the display has 8 divisions.
