77User Manual 1335.7352.02 ─ 02
To perform a pass/fail test
1. In the "PASS/FAIL" menu, press "TEST Run/Stop" to start the test.
Below the grid, you see the total number and the total duration of the tests in white.
The number of successful tests and their percentage is displayed in green, and the
number of failures and their percentage are displayed in red.
2. To interrupt the test while the acquisition of signals is continued, press "PAUSE".
3. To resume the test and to continue all event counters, press "PAUSE" again.
4. To finish the test, press "TEST Stop".
The event and time counters are stopped.
If you start a new test with "TEST Run", all counters are reset to zero.
5. To deactivate the "PASS/FAIL" mode, press "PASS/FAIL OFF".
6.7 Component Test
The R&S RTC1000 has a built-in component tester.
1. Connect the unit under test to the AUX OUT connector using a BNC/Banana
adapter.

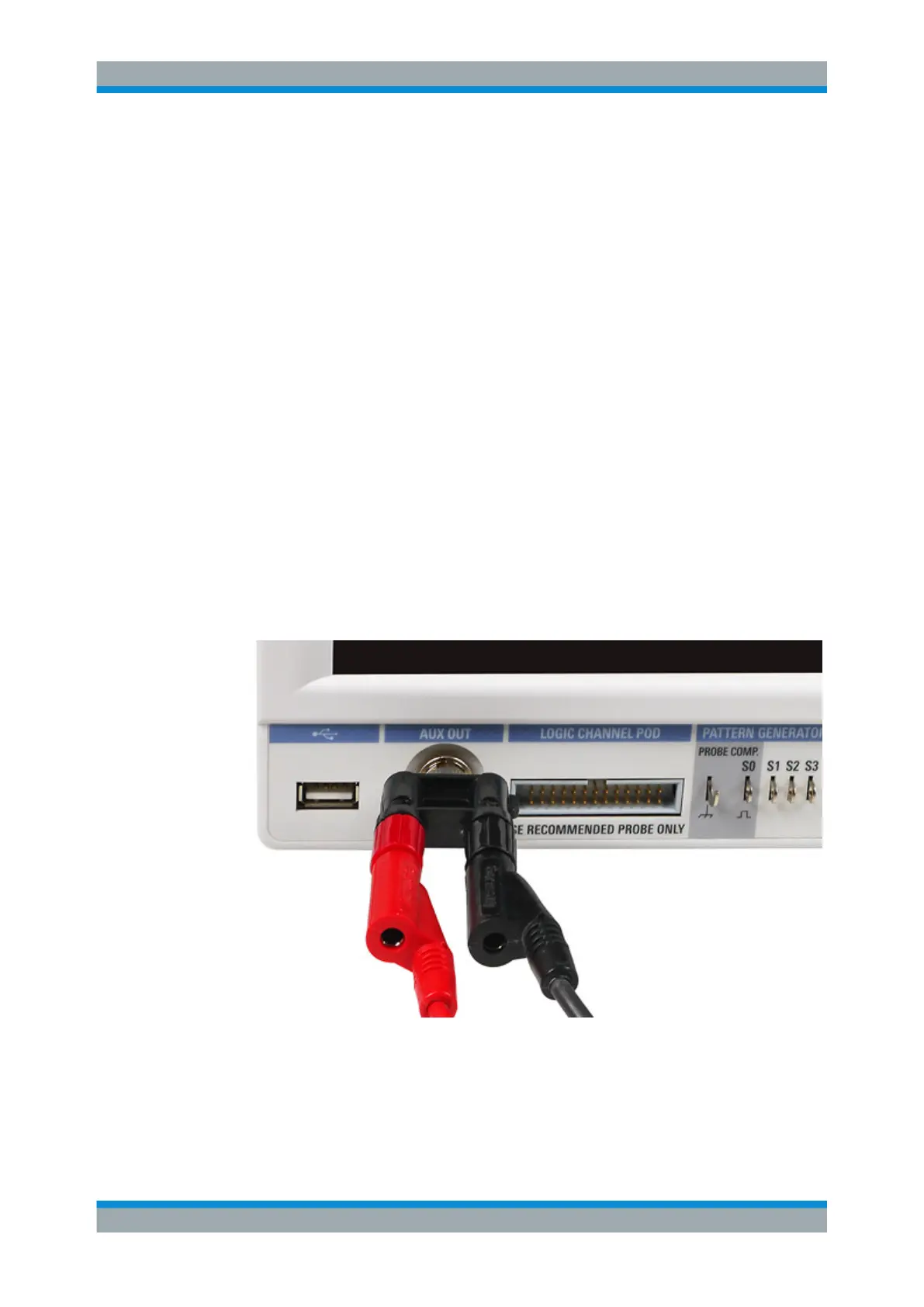

Figure 6-14: BNC/banana adapter connected to AUX OUT
2. Press the UTIL key in the Vertical section.
3. Press "COMP. TEST".
Component Test
