Waveform Setup

R&S

RTC1000

34User Manual 1335.7352.02 ─ 02

4 Waveform Setup

4.1 Vertical Setup

The most important vertical settings are permanently available for adjustment:

●

Channel keys to switch on or off and to select a channel

●

Rotary knobs to adjust vertical scale and position

●

Short menu to adjust coupling, ground, bandwidth filter and to invert the waveform.

Advanced settings are provided in the "Vertical" menu.

The channel labels show the current vertical settings of each channel.

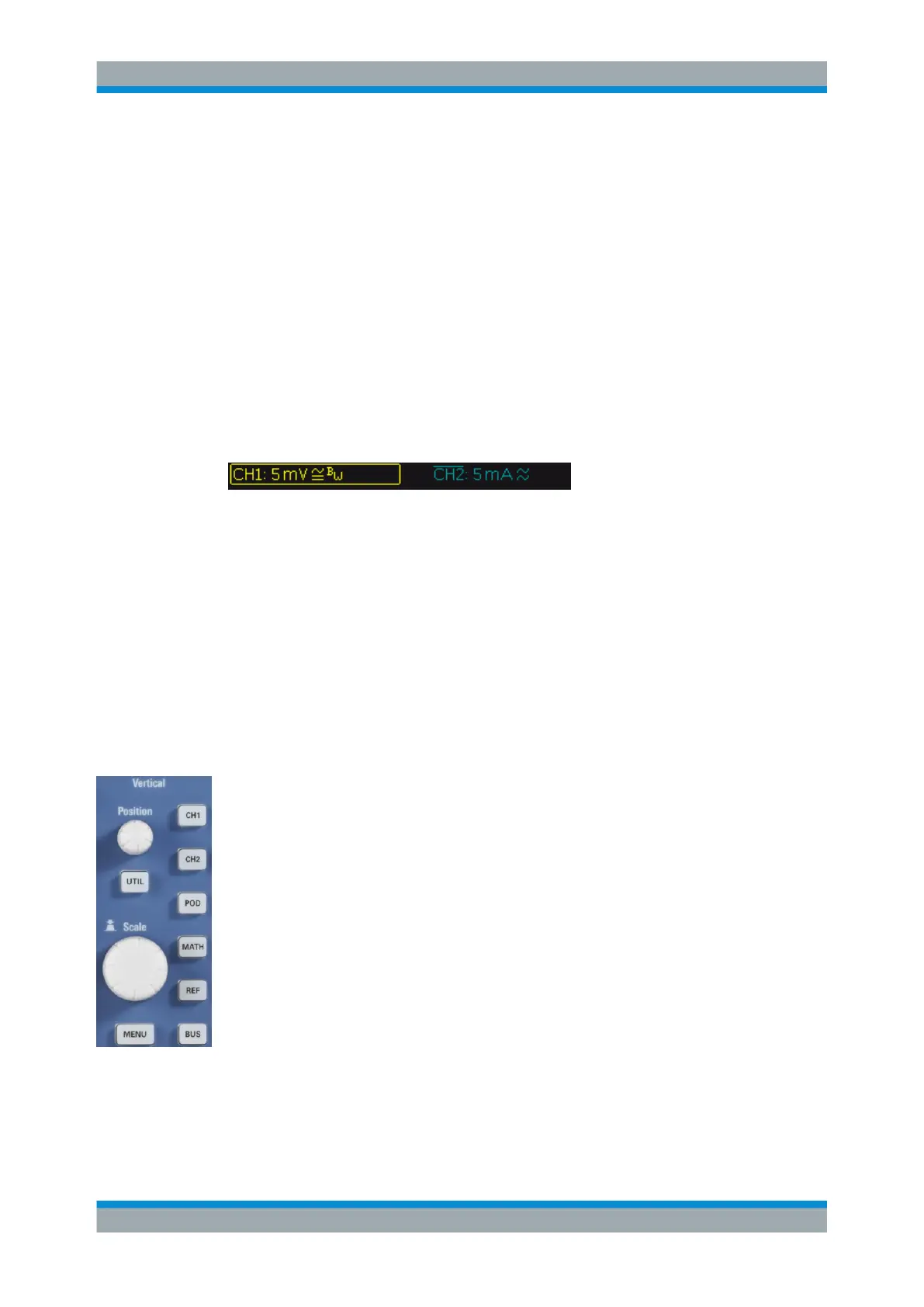

Figure 4-1: Channel labels: Channel 1 is selected, is DC coupled and bandwidth limited. Channel 2 is

AC couples and inverted.

Make sure to check and adjust the probe attenuation value in the channel menu.

● Vertical Controls......................................................................................................34

● Vertical Settings in the Channel Menus.................................................................. 34

● Probe Compensation.............................................................................................. 37

4.1.1 Vertical Controls

In the Vertical section of the front panel, you select the channel, set scale and position,

and open the vertical menu. The key of the selected channel lights up.

Vertical scale (sensitivity) and vertical position (Y-position or offset) are the basic verti-

cal settings. Each channel has its individual vertical values.

1. To select the desired channel, press its channel key.

2. To set the vertical scale of the selected channel, turn the SCALE knob in the Verti-

cal section. You can select the sensitivity in 1-2-5 steps of 1mV/div to 10V/div.

Press the knob once to switch to a continuous value setting.

3. To set the vertical position of the selected channel, turn the POSITION knob in the

Vertical section.

For a complete description of the Vertical section of the frontpanel, see Chap-

ter 3.1.4, "Vertical Section", on page 20.

4.1.2 Vertical Settings in the Channel Menus

To open the vertical menu for a channel:
