The display shows one large and two small diagrams. The large diagram shows
the XY-display. The small diagrams show the sources for X and Y, the normal sig-
nal display as Y vs. time.
6.4 Mathematics
Math waveforms are calculated waveforms. The R&S RTC1000 provides two methods
to use mathematics:
●
With the Quick Mathematics (QM) function, you can create one math waveform
with basic mathematical operators on channel 1 and channel 2.
●
Using the advanced mathematics (MA), you can create up to five formulary sets.
Each formulary set can include up to five equations. Equations provide more oper-
ators and more sources than the Quick Mathematics. Formulary sets can be saved
and loaded for further use.
Mathematical functions track the changes of the source signals. They apply to the visi-
ble area of the screen. If a signal is cut off at the edge of the screen, the corresponding
mathematical curve can also be truncated.

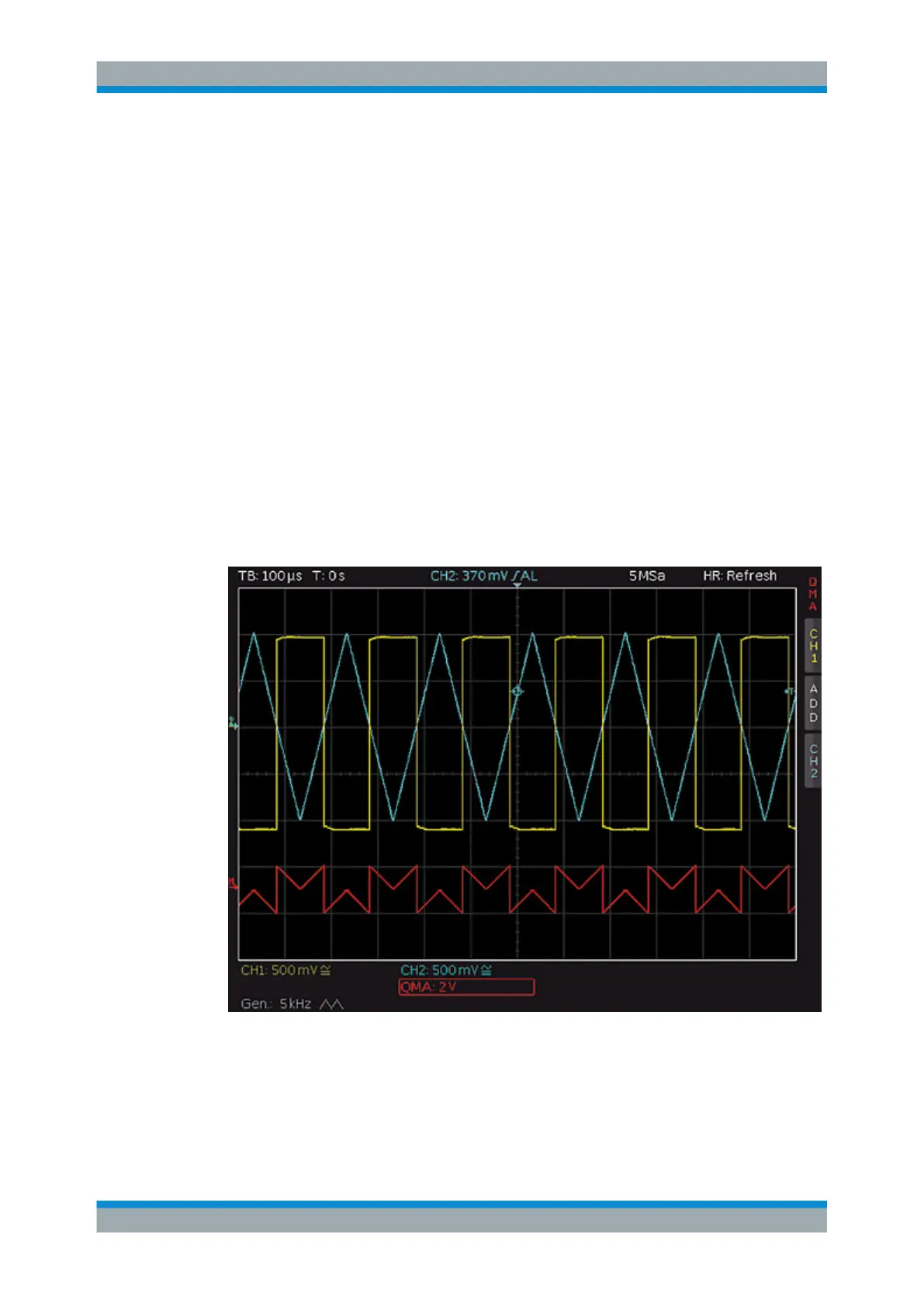

Figure 6-4: Example of a mathematical waveform
► To scale a mathematic waveform:
a) Select the math waveform.
Mathematics
