Trigger
R&S
®
RTC1000
55User Manual 1335.7352.02 ─ 02
Triggers if the pattern condition is fulfilled for a duration shorter than time t1 t1",
or longer than time t2. These settings are an alternative setting to the definition
with "Width =" and variation. The time values are interdependent and adjusted
accordingly.
5.6 Video Trigger
The video or TV trigger is used to analyze analog baseband video signals. You can
trigger on baseband video signals from standard definition and high definition stand-
ards connected to an analog channel input.
1. Select TYPE > "VIDEO".
2. Select FILTER.
The following settings can be selected in the video filter menu:

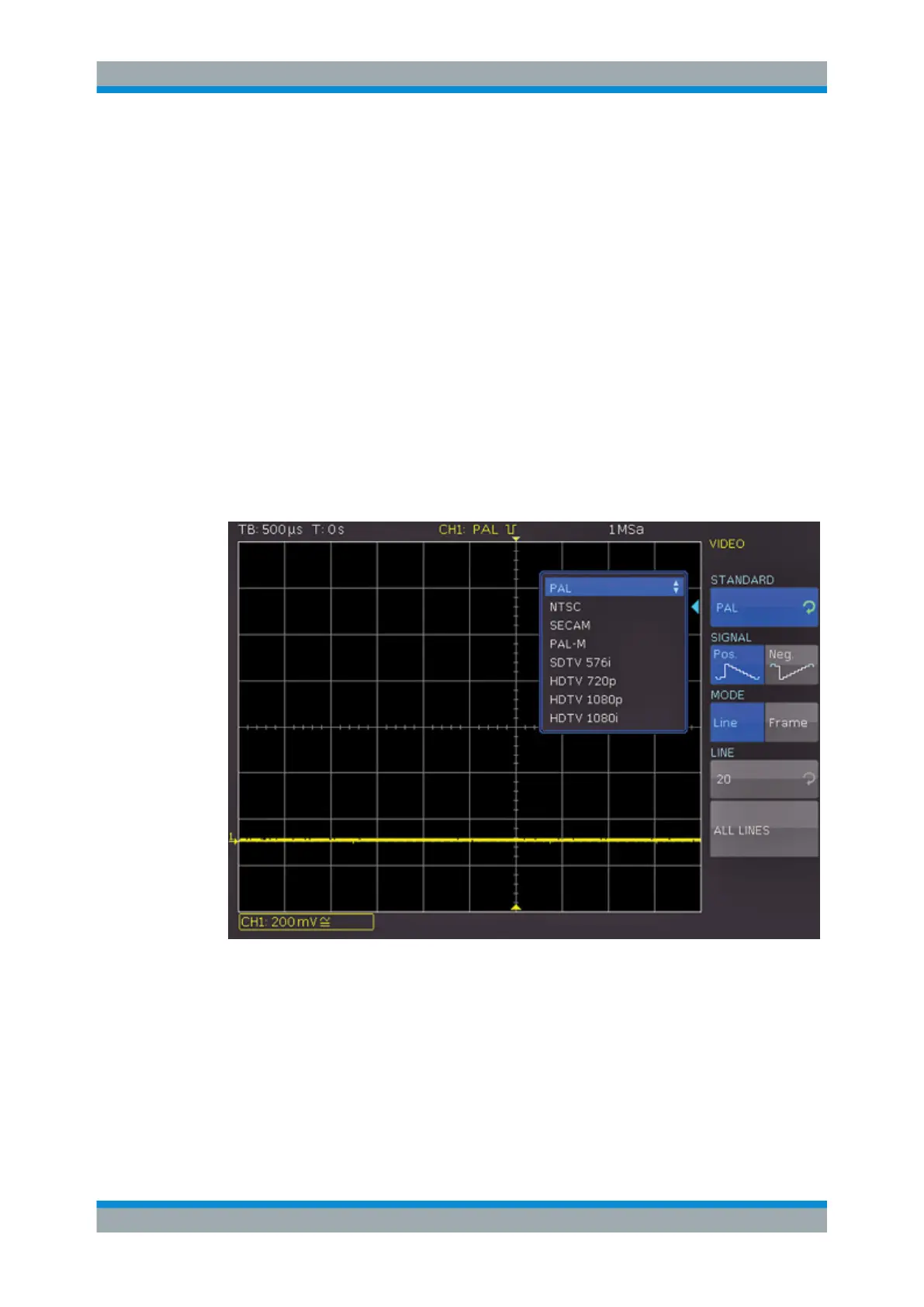

Figure 5-2: Video trigger menu
STANDARD
Selects the television standard.
●
PAL
●
NTCS
●
SECAM
●
PAL-M
●
SDTV 576i Interlaced
Video Trigger
