Network Connections and Remote Operation
R&S
®
RTC1000
161
User Manual 1335.7352.02 ─ 02

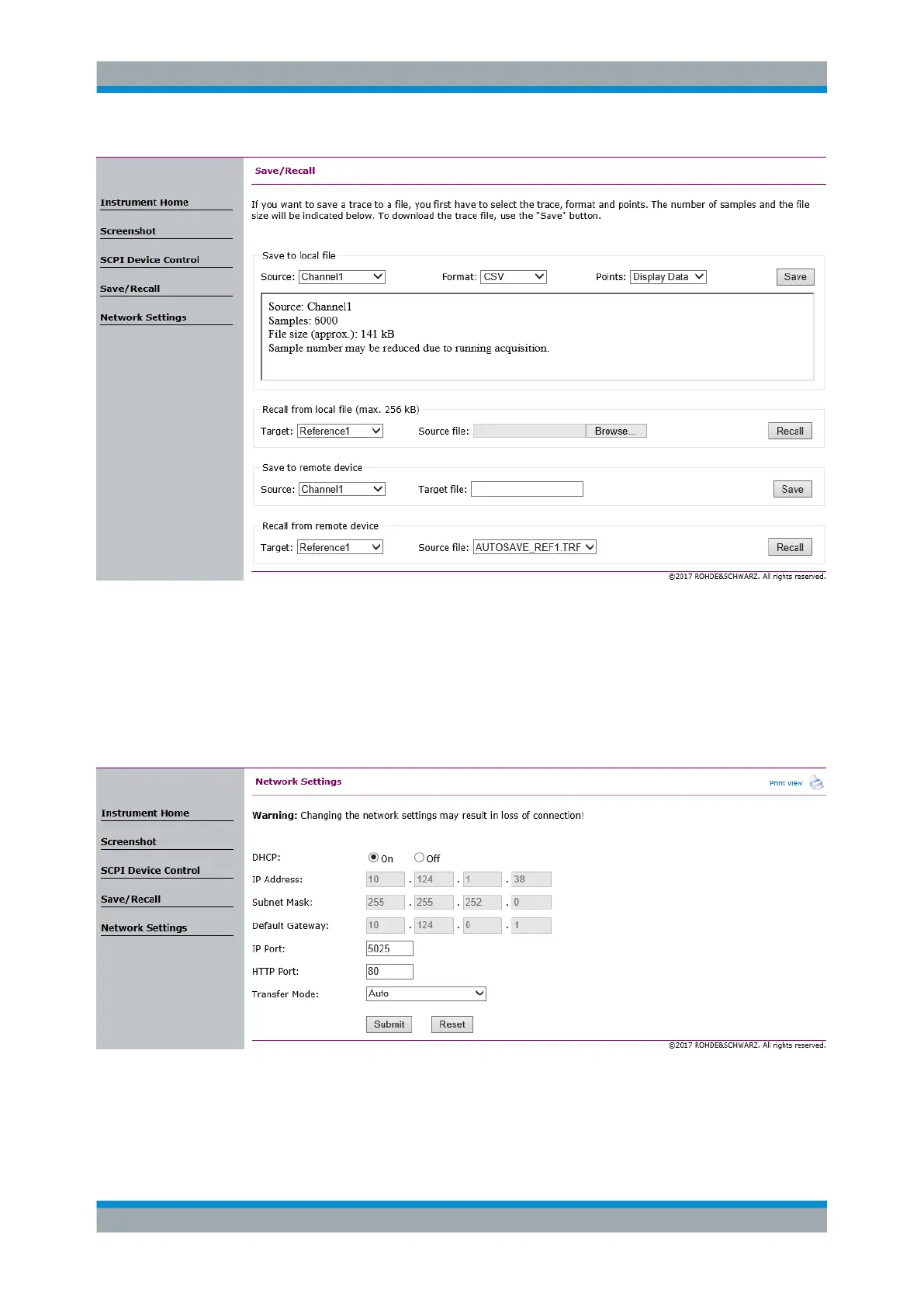

12.2.6
Network Settings
On the "Network Setting" page, you can change the port settings, switch off DHCP
address and enter an IP address in a more comfortable way than directly on the instru-
ment. To take effect of the changes, "Submit" them to the instrument.
"Reset" removes all modified values that were not yet sent to the instrument.
Remote Access Using a Web Browser
160
162
