OPC Drum

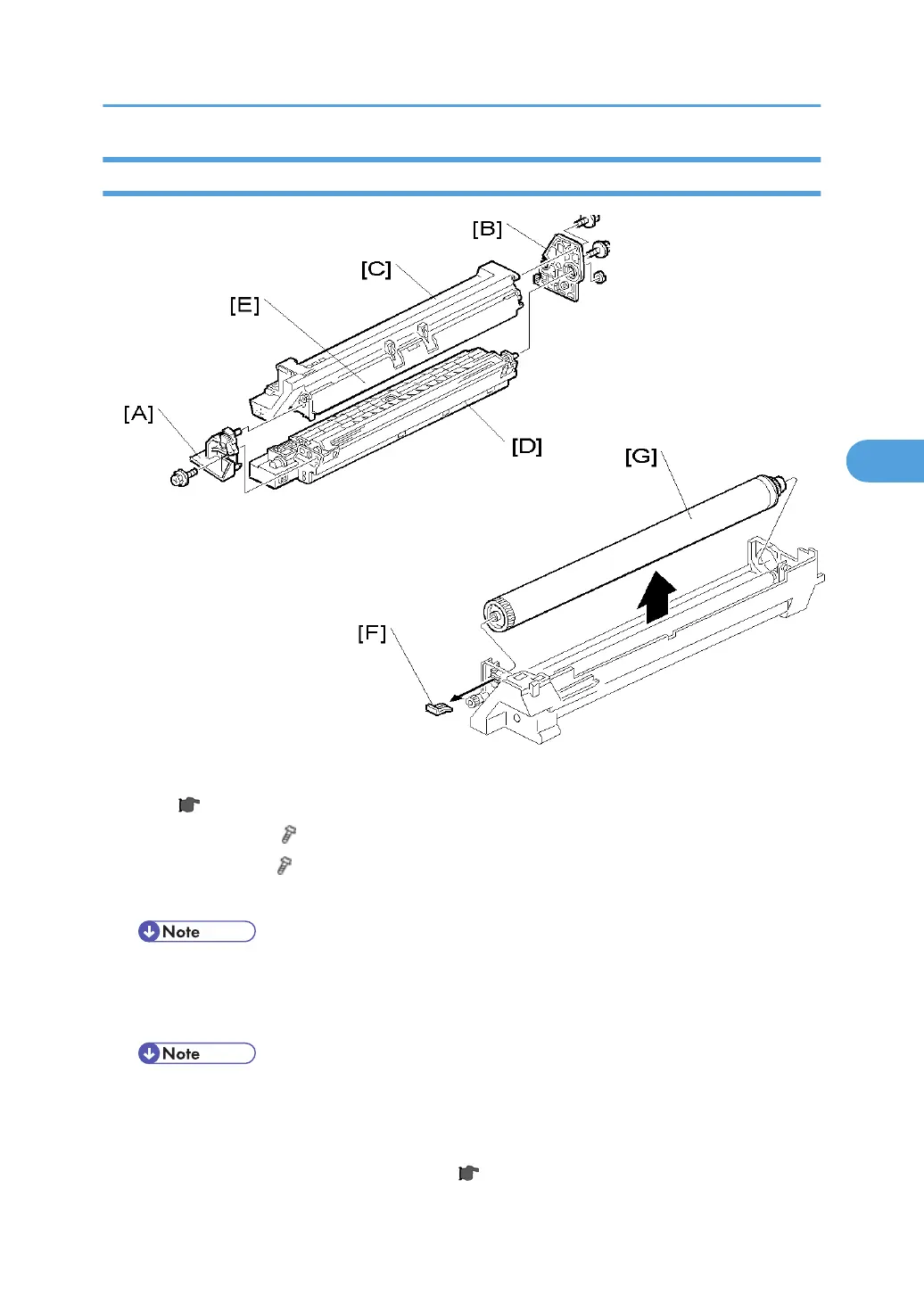

1. PCU ( p.101)
2. Front side piece [A] ( x 1)
3. Rear side piece [B] ( x 2, 1 coupling)
4. Separate the drum section [C] from the developer section [D].
• To ensure that the left-side gears line up, keep the drum cover [E] closed when reinserting the
front side piece.
5. Pry out the drum retaining clip [F].
• Install the clip in the same orientation (with the lip facing away from the drum shaft) when you
reassemble.
6. OPC drum [G]
7. When reassembling, adjust the image quality ( p.106 "After Replacement or Adjustment").
PCU Section
103
