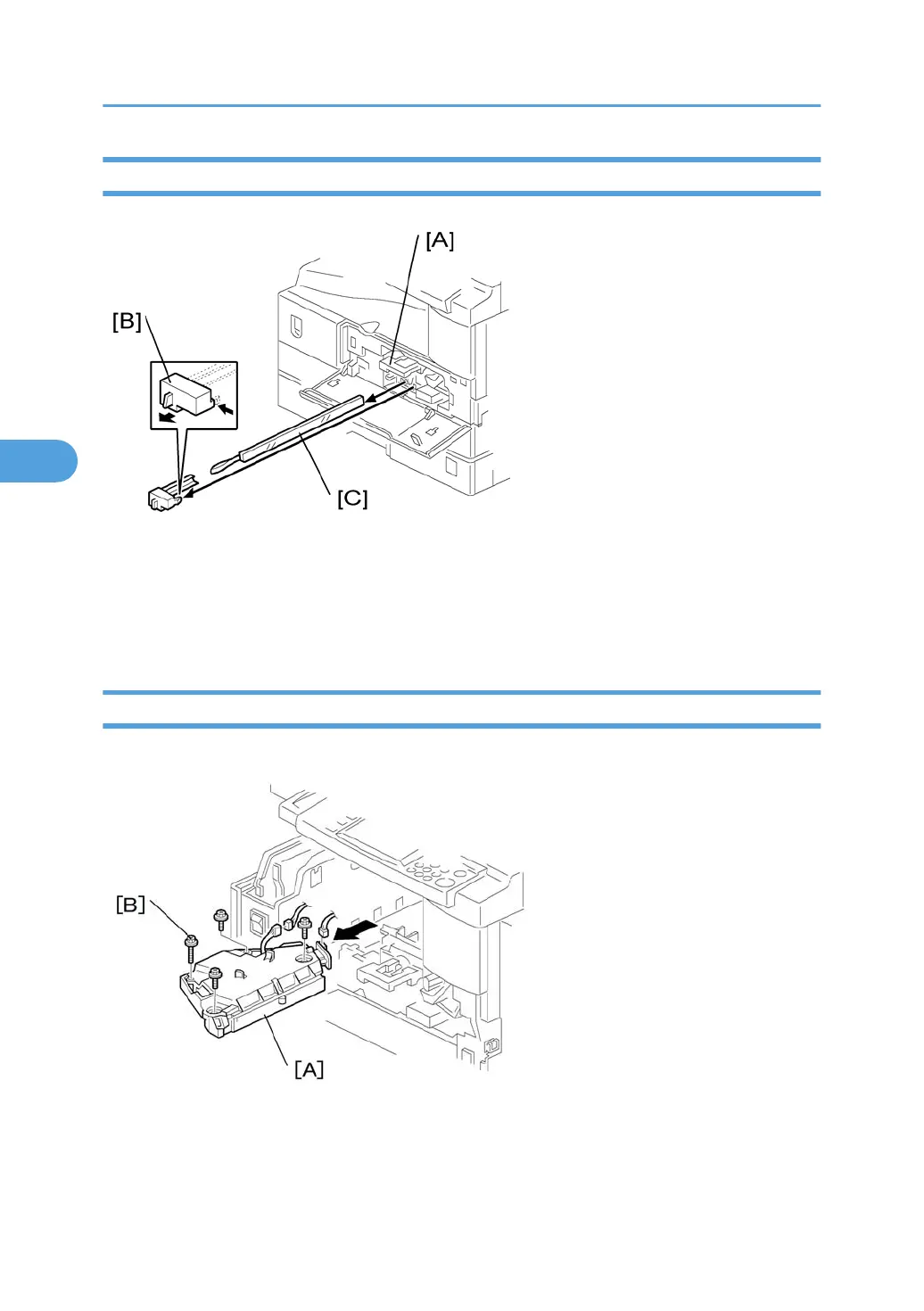

Toner Shield Glass
1. Open the front door.
2.
Lift the toner cartridge latch [A].
3.
Press the toner shield glass cover [B] to the left and pull it out.
4.
Pull out the toner shield glass [C].
Laser Unit
1. Toner shield glass.
2. Copy tray
4. Replacement and Adjustment
96
4
