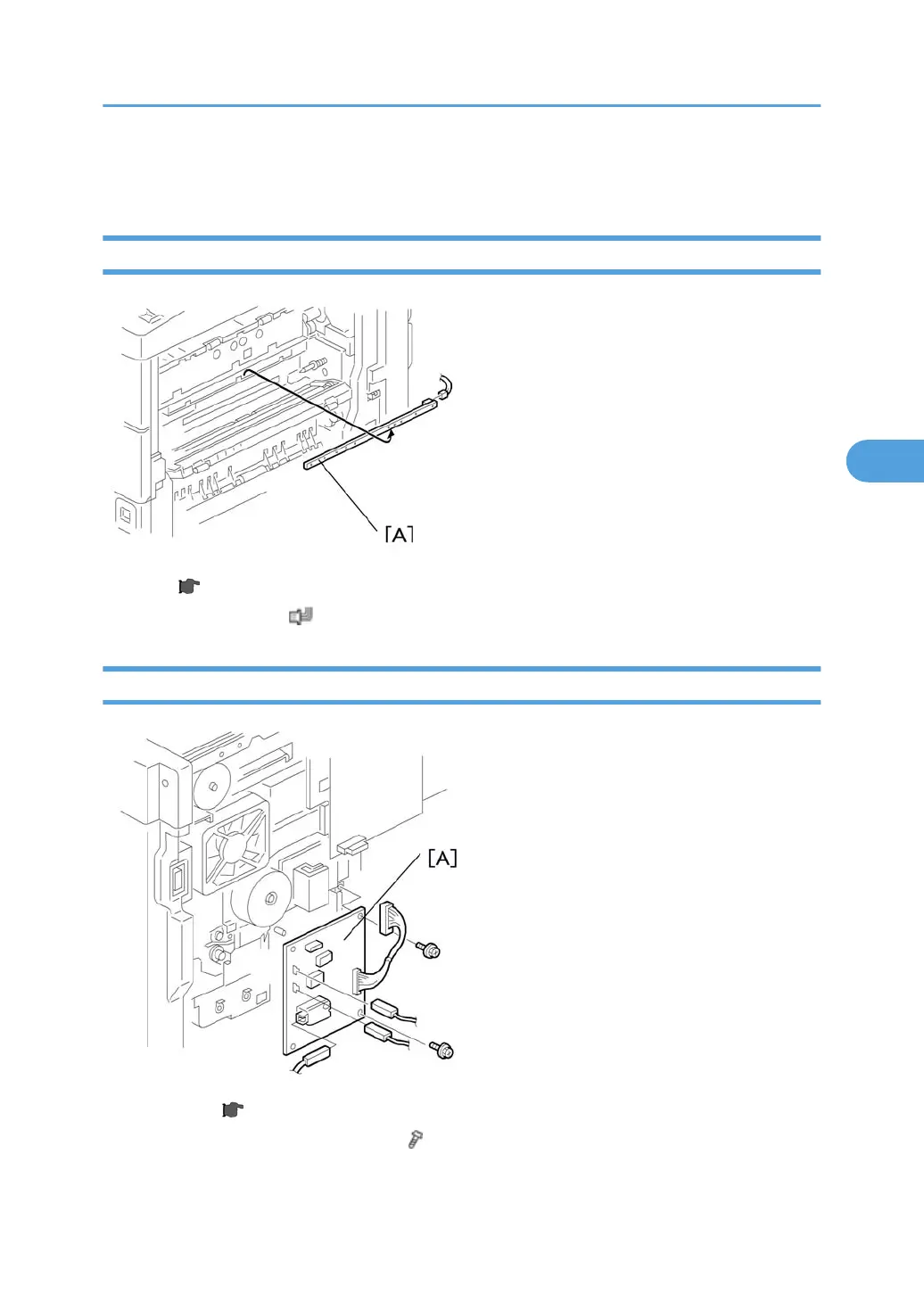

Other Replacements
Quenching Lamp
1. PCU ( p.101)
2. Quenching lamp [A] ( x 1)
High-Voltage Power Supply Board
1. Rear cover ( p.76)
2. High-voltage power supply board [A] ( x 2, 3 standoffs, all connectors)
Other Replacements
133
4
