Ricoh Aficio MP 1600L2 User Manual

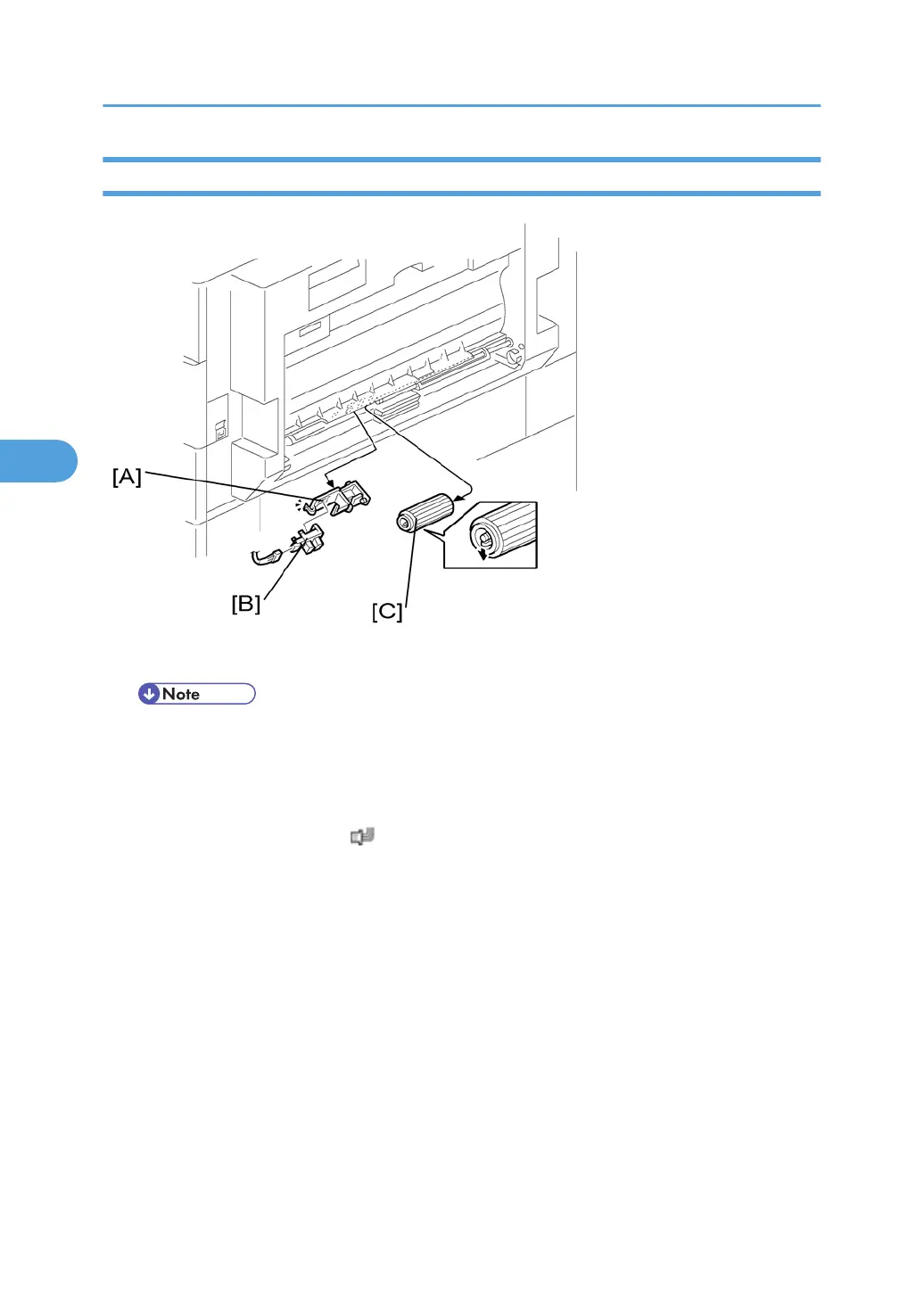

By-Pass Feed Roller and Paper End Sensor
1. By-pass tray
• If you have a support to keep the by-pass tray within the reach of the connector cable, you do
not
need
to
disconnect the connector. When you do so, use caution not to place too much load
on the cable.
2. Sensor holder [A]
3. By-pass paper end sensor [B] (
x 1)
4.
By-pass feed roller [C]
4. Replacement and Adjustment
112
4
