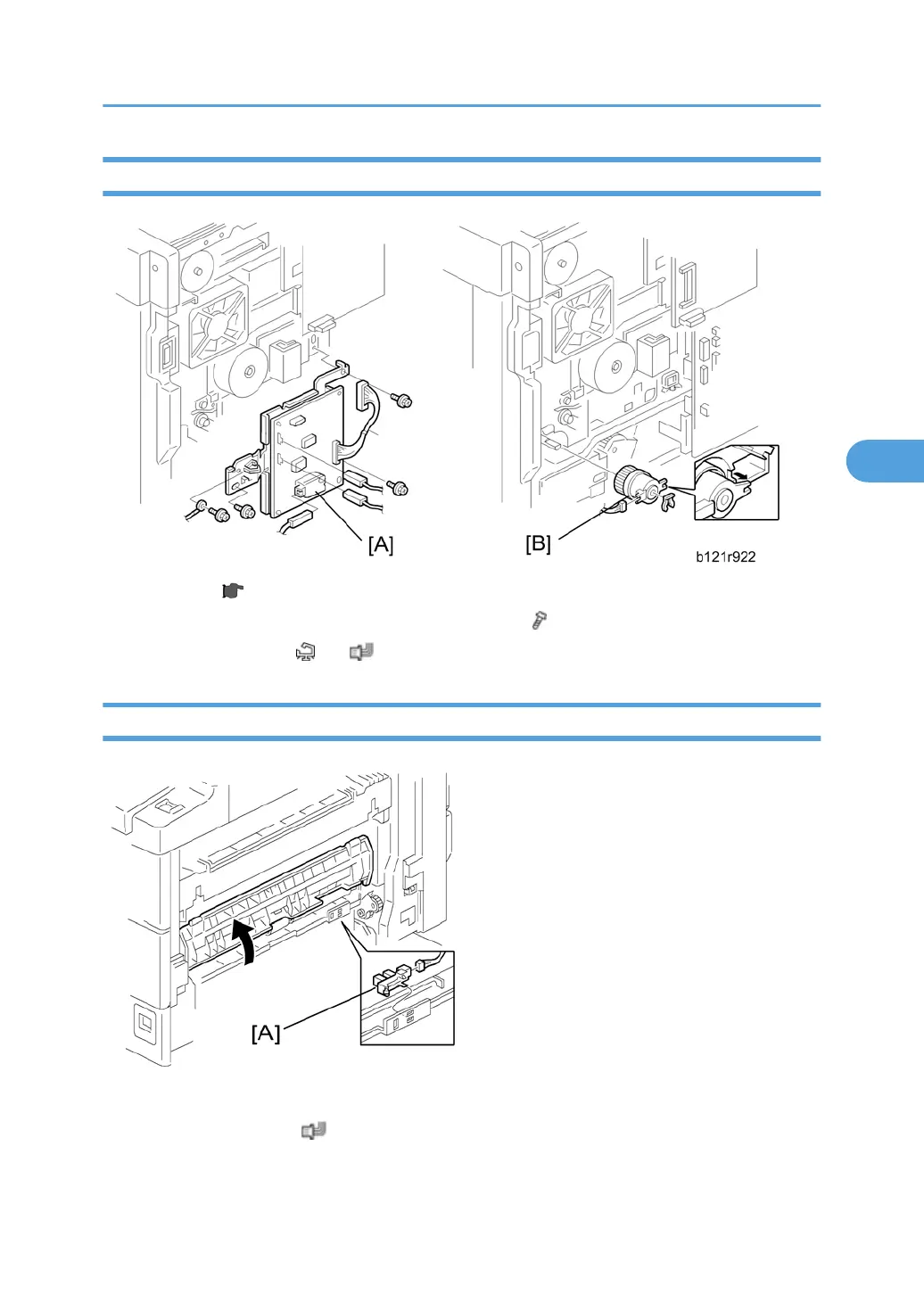

Registration Clutch
1. Rear cover ( p.76)
2. High-voltage power supply board (with the bracket) [A] ( x 4, all connectors)
3. Registration clutch [B] ( x 1, x 1)
Registration Sensor
1. Open the right door.
2. Registration sensor [A] ( x 1)
Paper Feed Section
