Ricoh Aficio MP 1600L2 User Manual

Gearbox

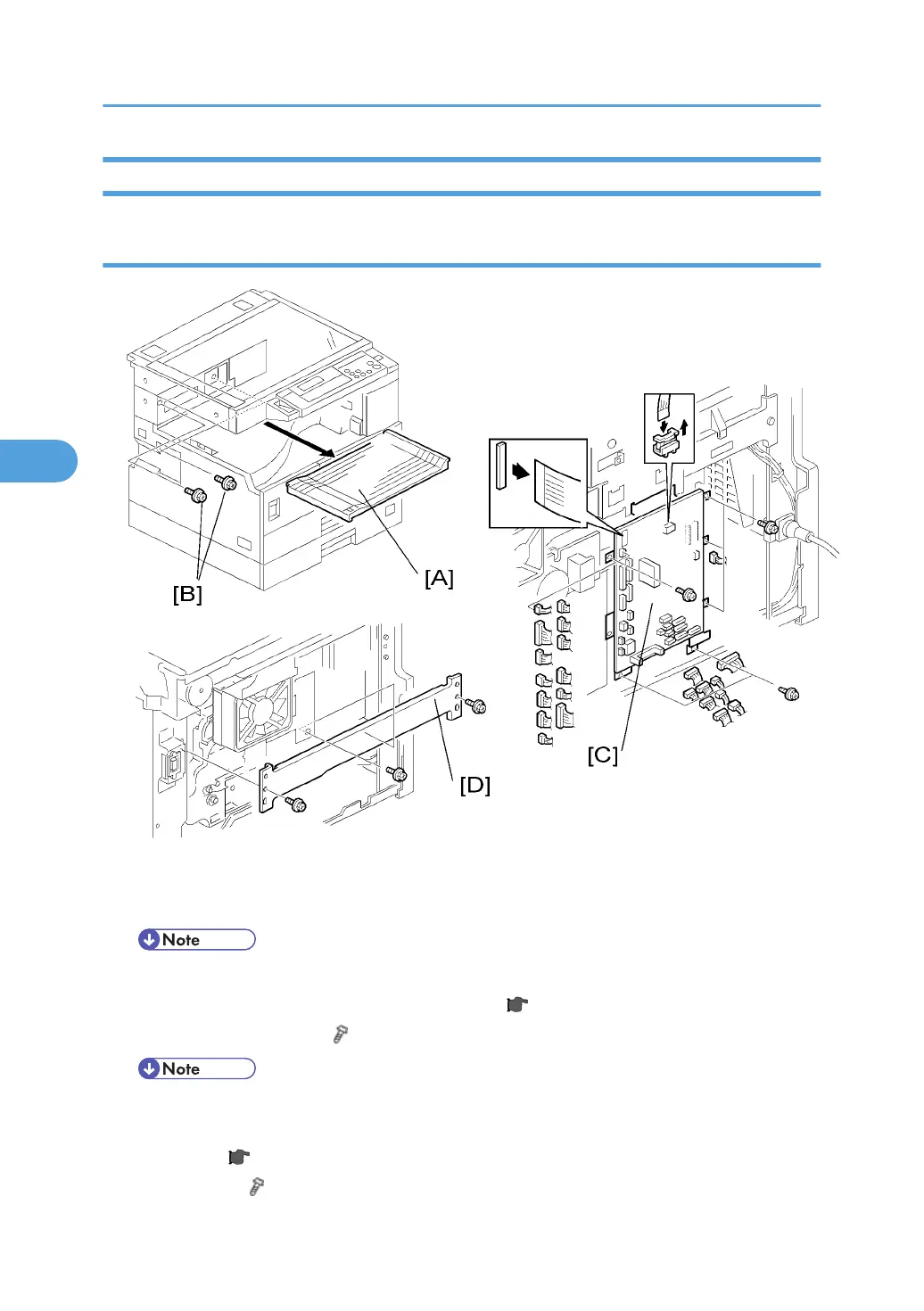

Replacement Procedure
1. Inverter tray [A]
2. Two screws [B] from the middle rear cover
• This step releases the topmost part of the BICU bracket.
3. High-voltage power supply board (with the bracket) ( p.115 "Registration Clutch ")
4. BICU (with the bracket) [C] ( x 6)
• If you have difficulty to remove the bracket, remove the screw at the middle of the crosspiece
(see step 6).
5. Main motor ( p.135)
6. Crosspiece [D] ( x 3)
4. Replacement and Adjustment
138
4

Ricoh Aficio MP 1600L2 Specifications

General

Brand	Ricoh
Model	Aficio MP 1600L2
Category	All in One Printer
Language	English
